Main Heater Core

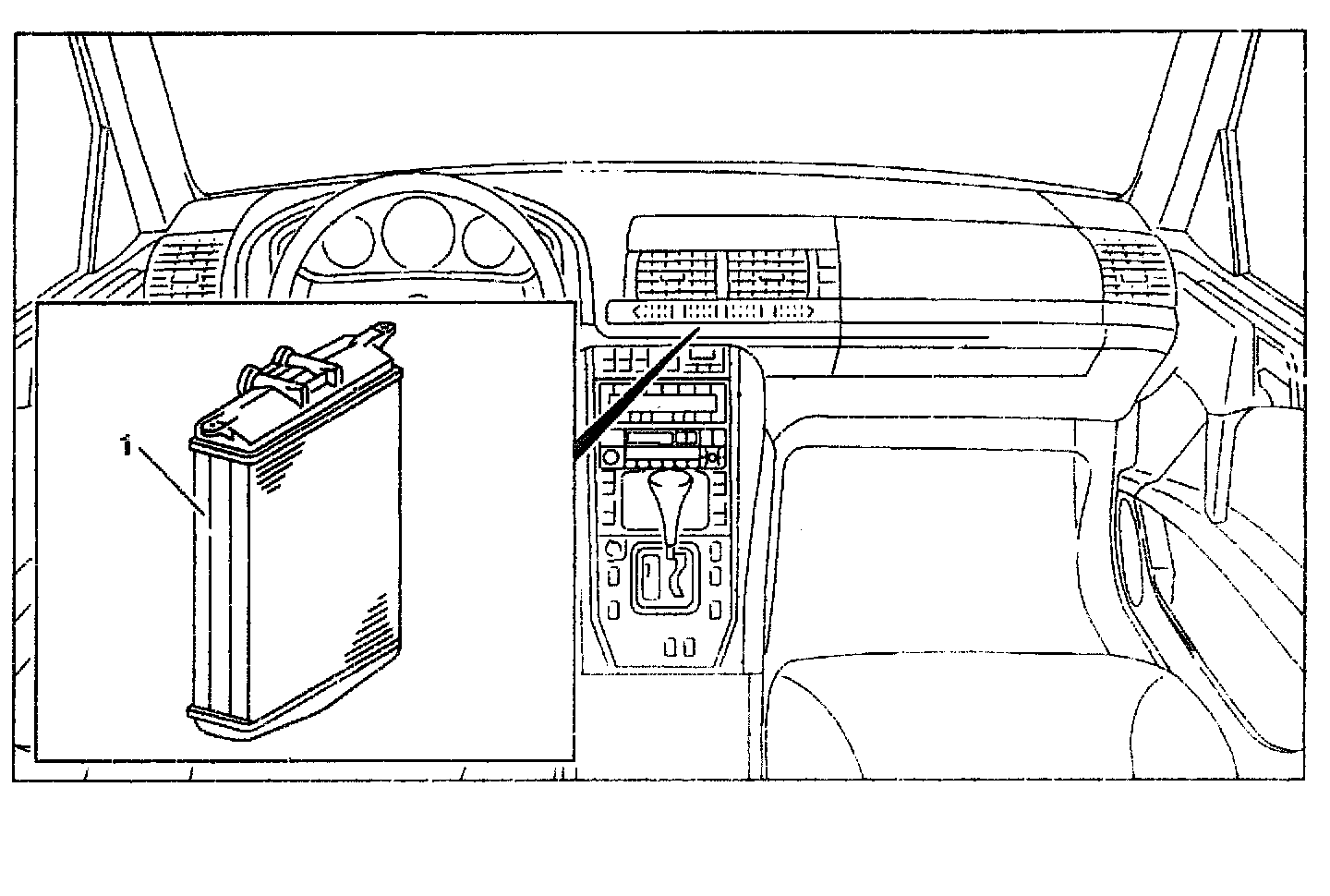

Illustrated with automatic heater (HEAT)

The heater core (1) is located behind the instrument panel in the air conditioning housing.
