Instrument Cluster / Carrier: Application and ID

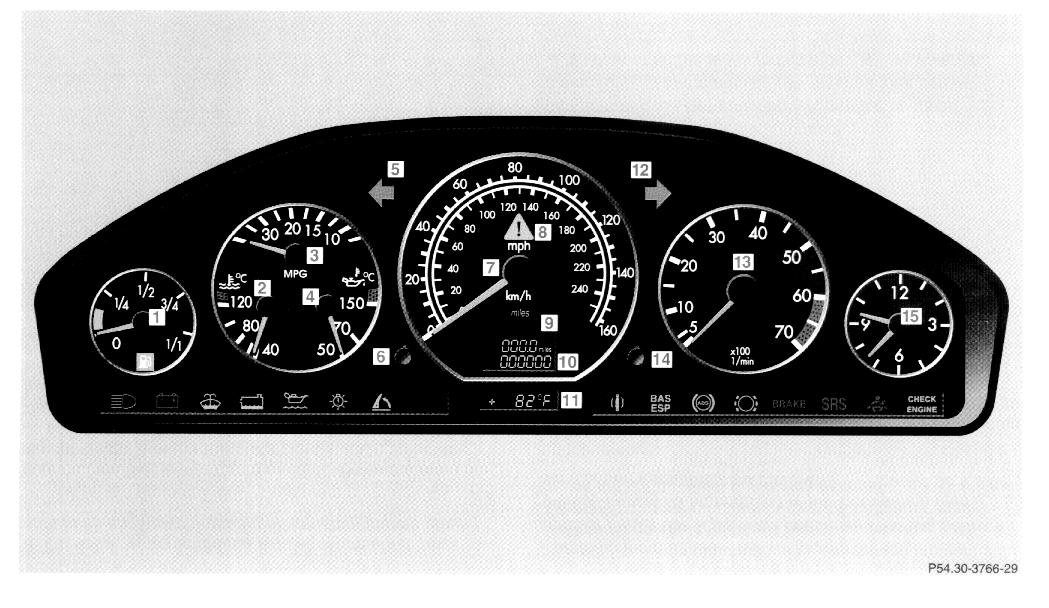

Instrument cluster:




1 Fuel gauge with reserve and fuel cap placement warning lamp (yellow)

2 Coolant temperature gauge

3 Fuel consumption gauge

4 Engine oil temperature gauge

5 Left turn signal indicator lamp (green)

6 Knob for intensity of instrument lamps

7 Speedometer

8 EPS warning lamp (yellow)

9 Odometer display field

10 Main/trip odometer

or FSS indicator

or engine oil level indicator

11 Outside temperature indicator

12 Right turn signal indicator lamp (green)

13 Tachometer

14 Knob for setting clock

15 Clock
