Operation CHARM: Car repair manuals for everyone.
Home >> Mercedes Benz >> 2000 >> SL 500 (129.068) V8-5.0L (113.961) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations >> Vehicles With ME-SFI >> Chassis/Body Mounted Components

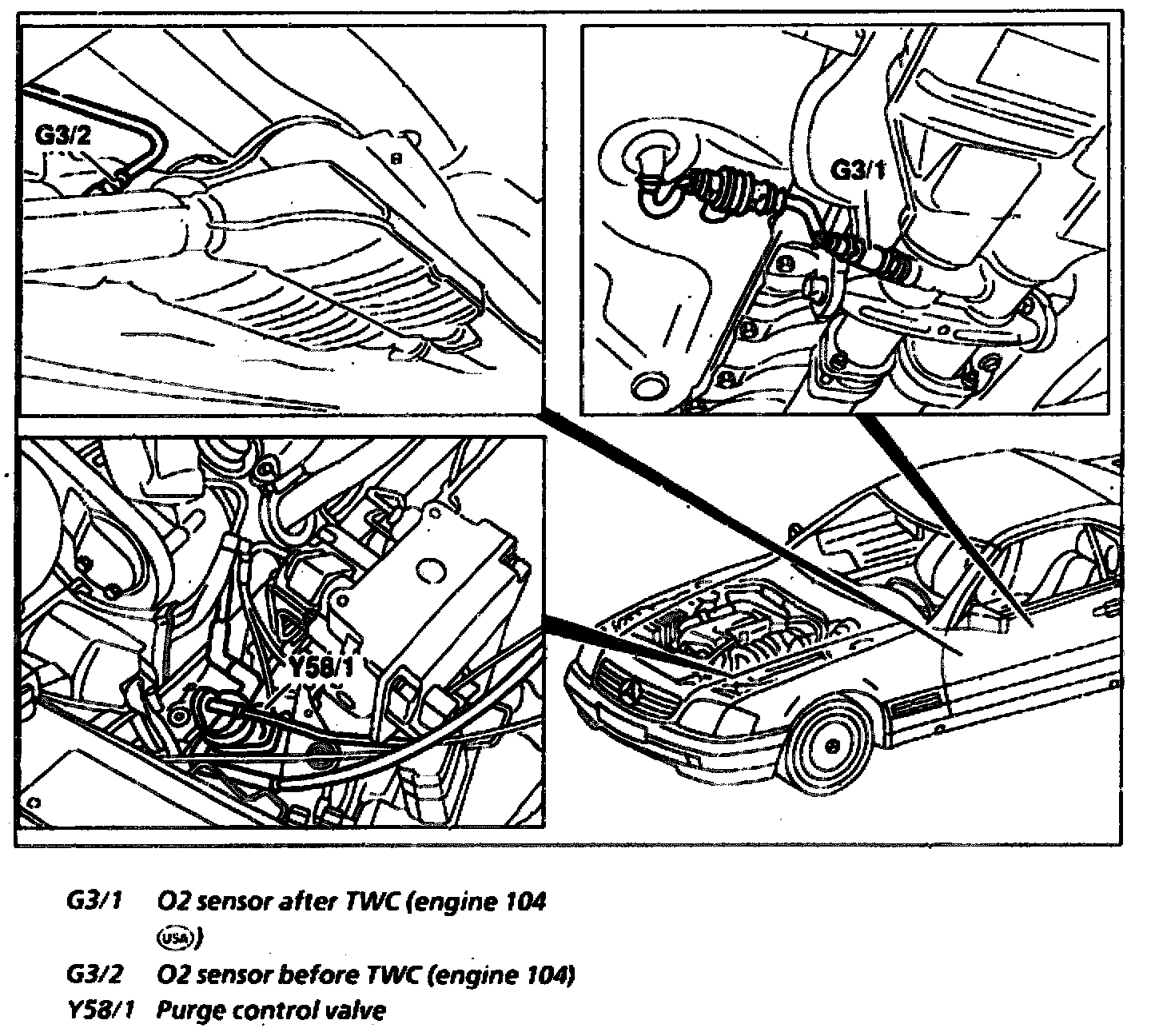

Chassis/Body Mounted Components



Model 129


























Engine 119, 120






Engine 112, 113
