Cruise Control
Cruise Control
Cruise Control

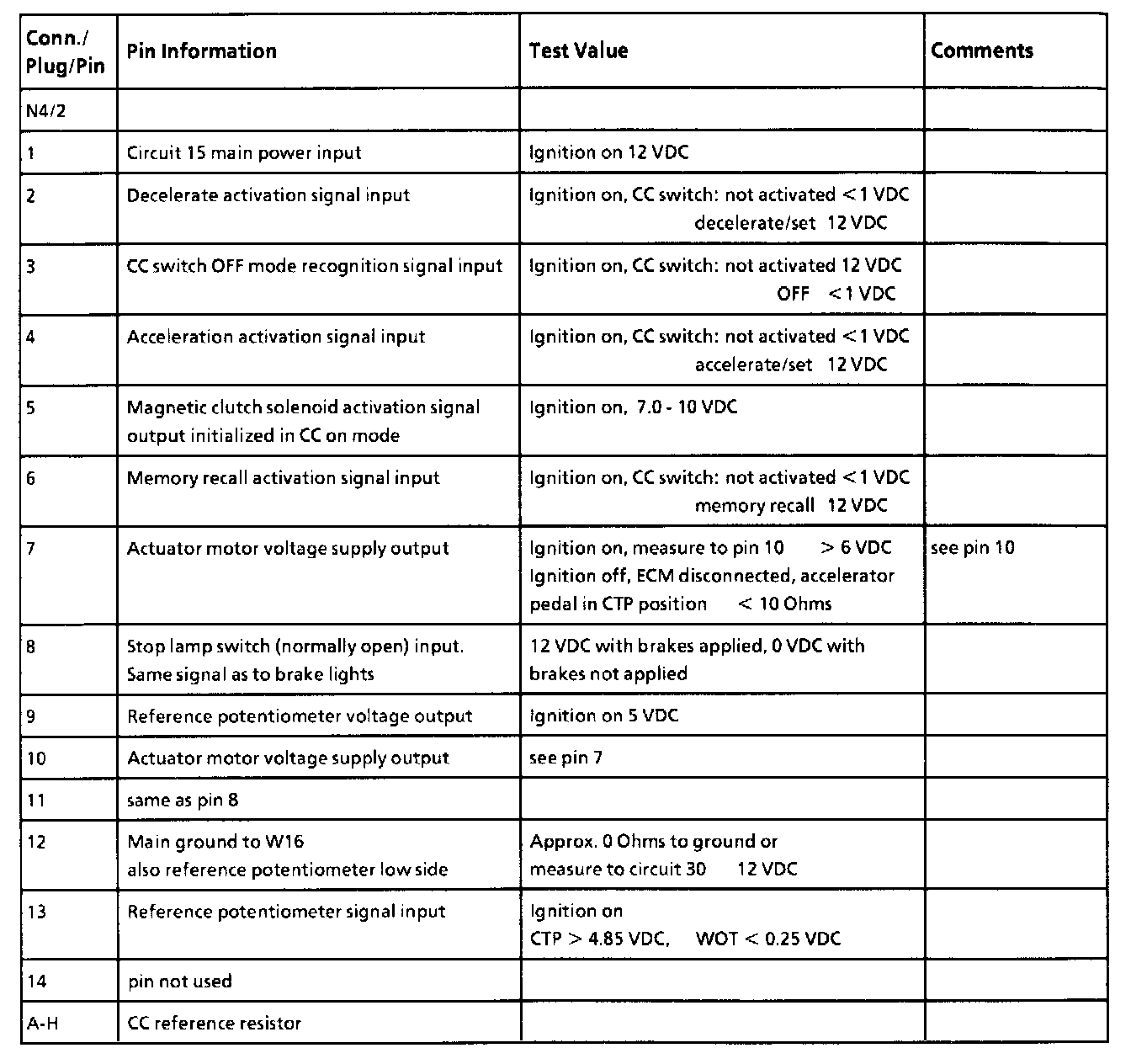

Connector Assignment:
Pin Information:
All values measured to ground unless otherwise noted
