SL 500 (129.068) V8-5.0L (113.961)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Air Bag
>>
Locations
>>
Driver & Passenger Side Airbags
Driver & Passenger Side Airbags

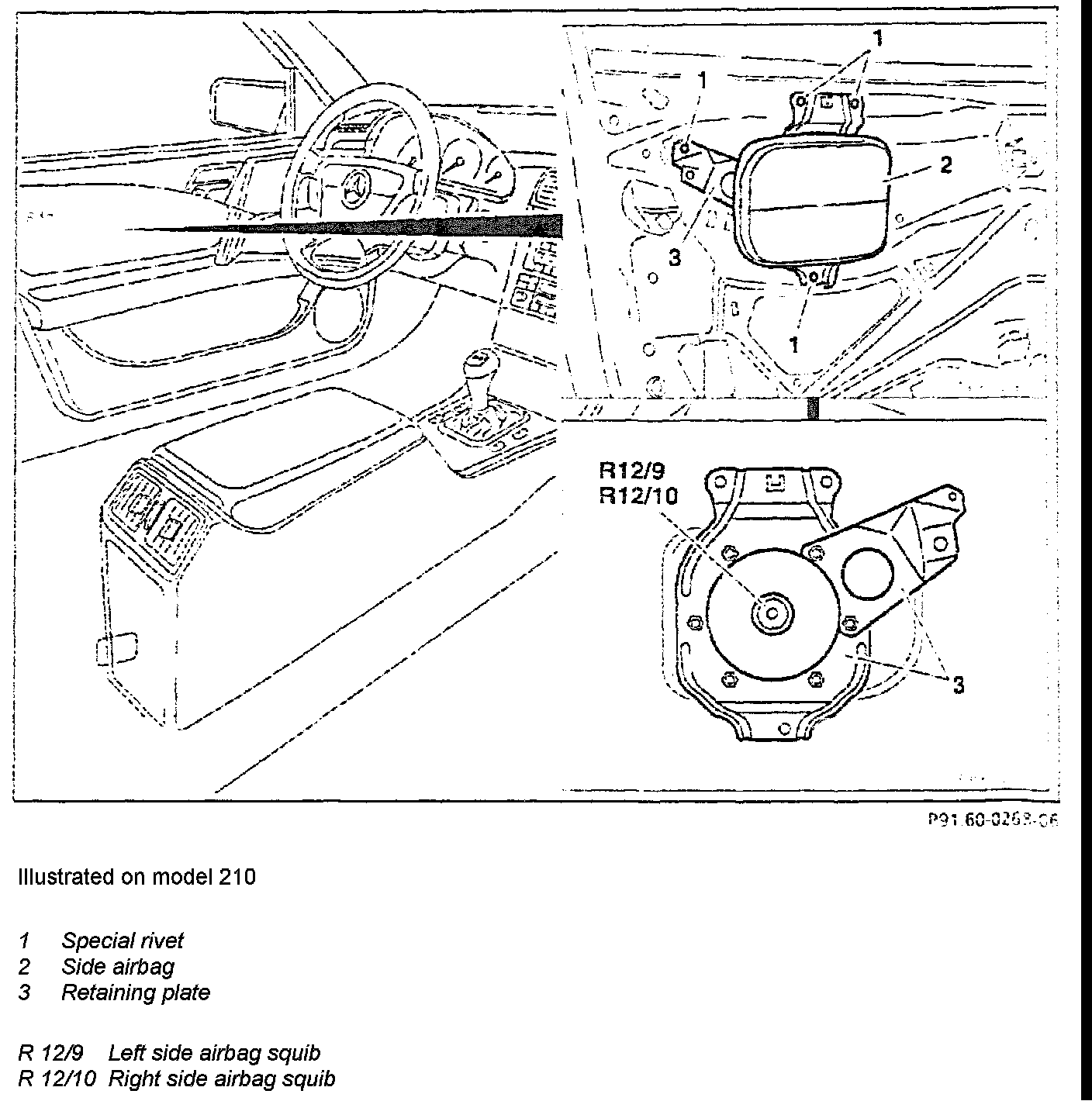

Illustrated On Model 210:
The side airbags are installed below the door liner on the front doors.
