AR01.45-P-7500-06F Oil Pan Bolt Diagram



AR01.45-P-7500-06F Oil pan bolt diagram

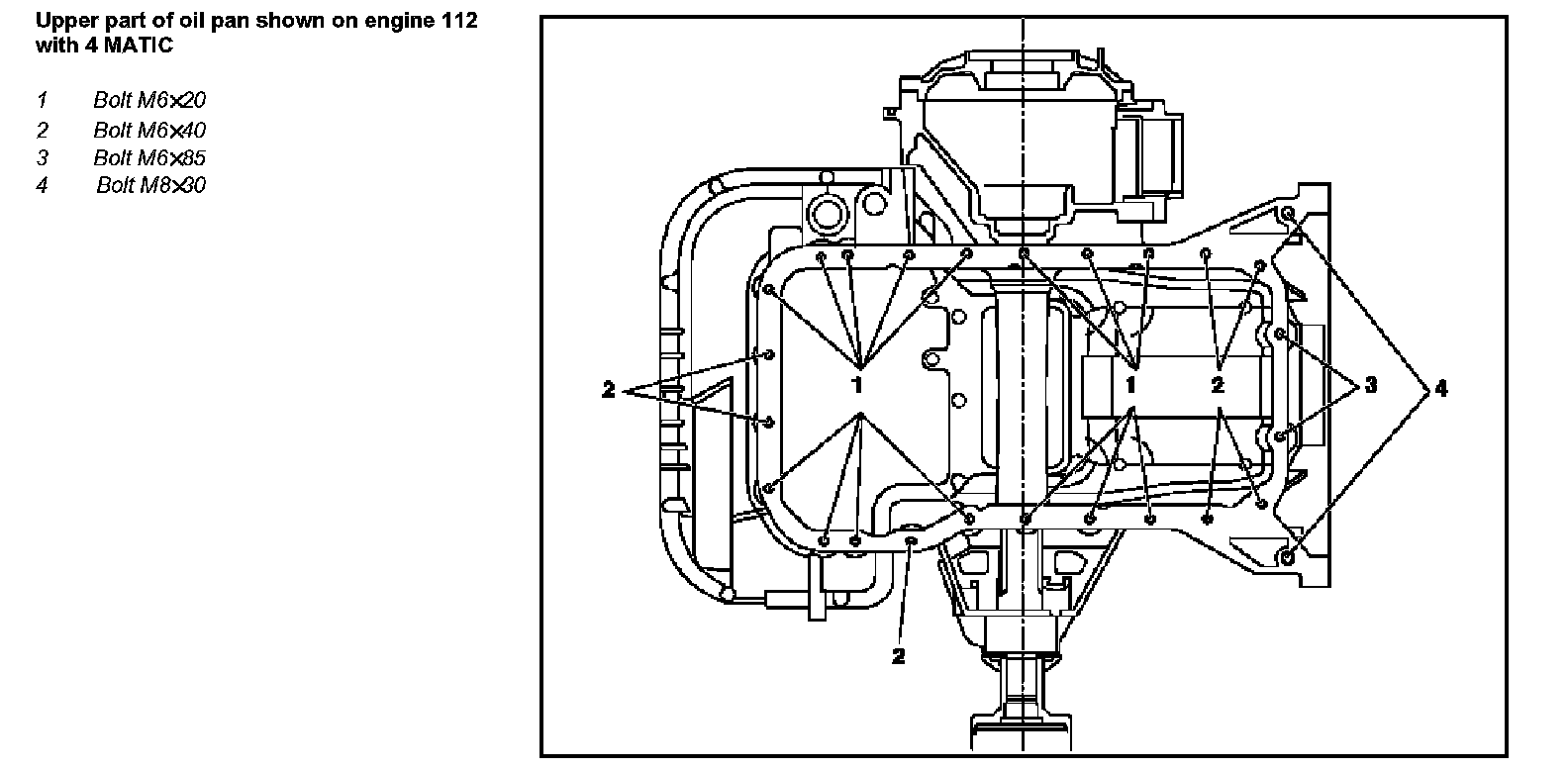

Upper part of oil pan shown on engine 112 with 4 MATIC:

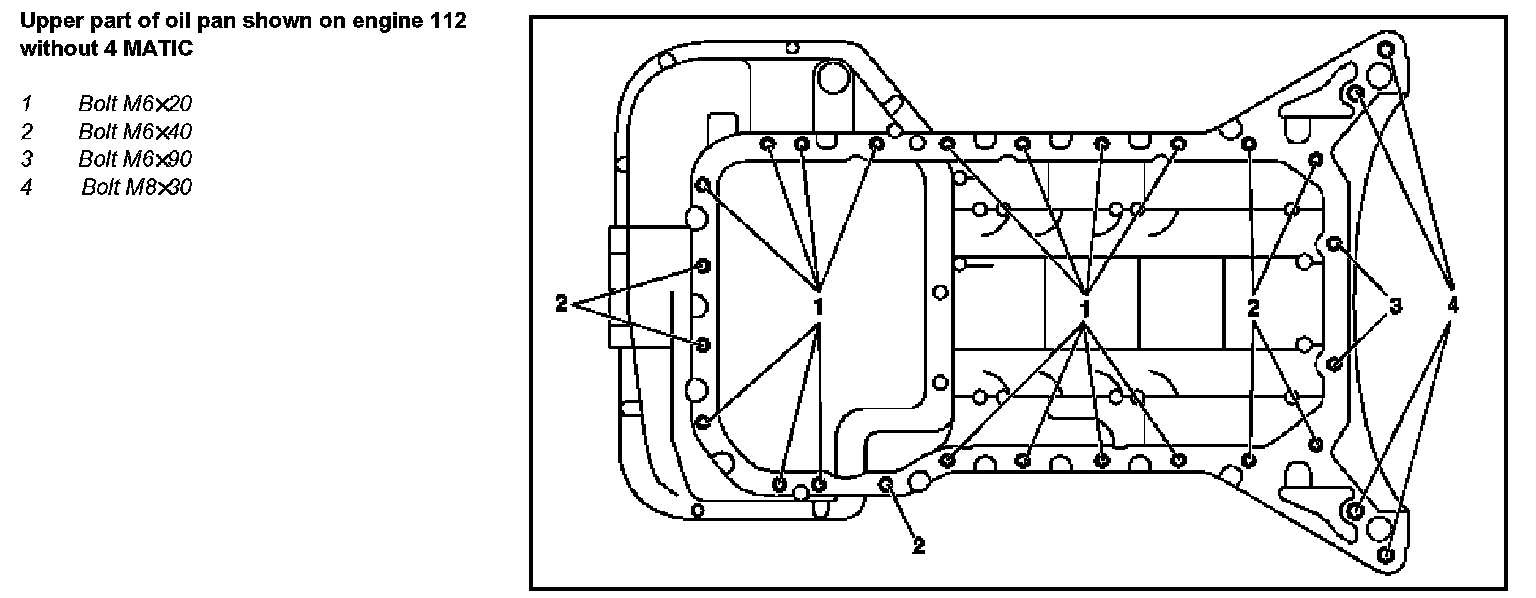

Upper part of oil pan shown on engine 112 without 4 MATIC:

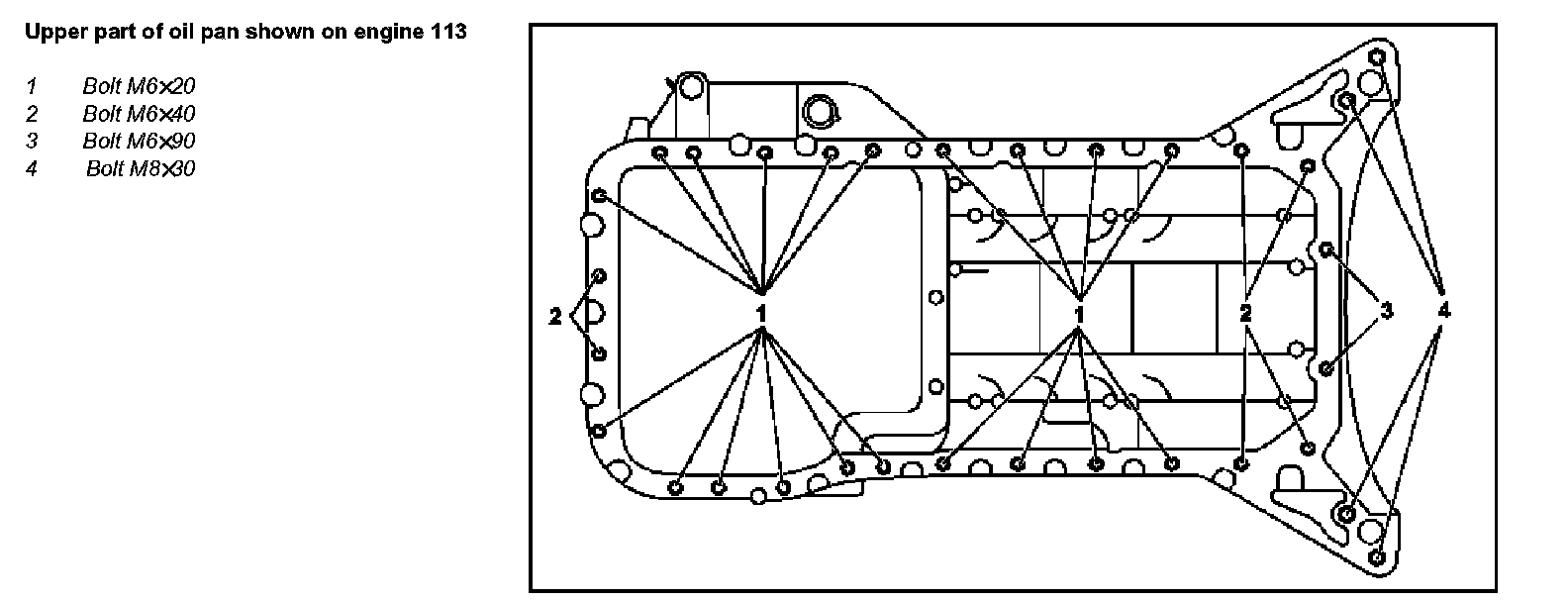

Upper part of oil pan shown on engine 113:
