BE40.30-P-1000-05B Test Values For Distance and Comparison Measurements on Rear Axle



BE40.30-P-1000-05B Test values for distance and comparison measurements on rear axle

Modification Notes:

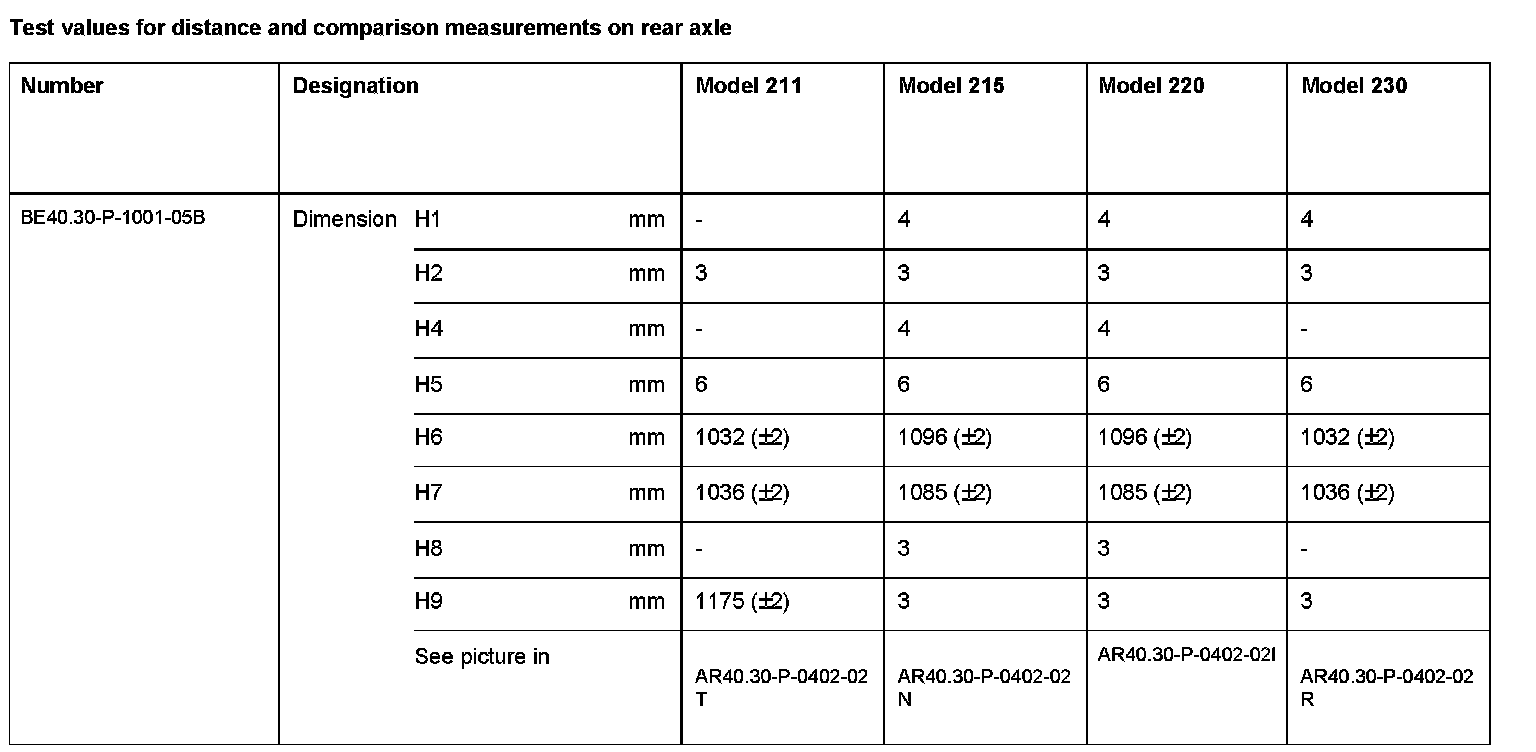

Test Values For Distance And Comparison Measurements On Rear Axle:

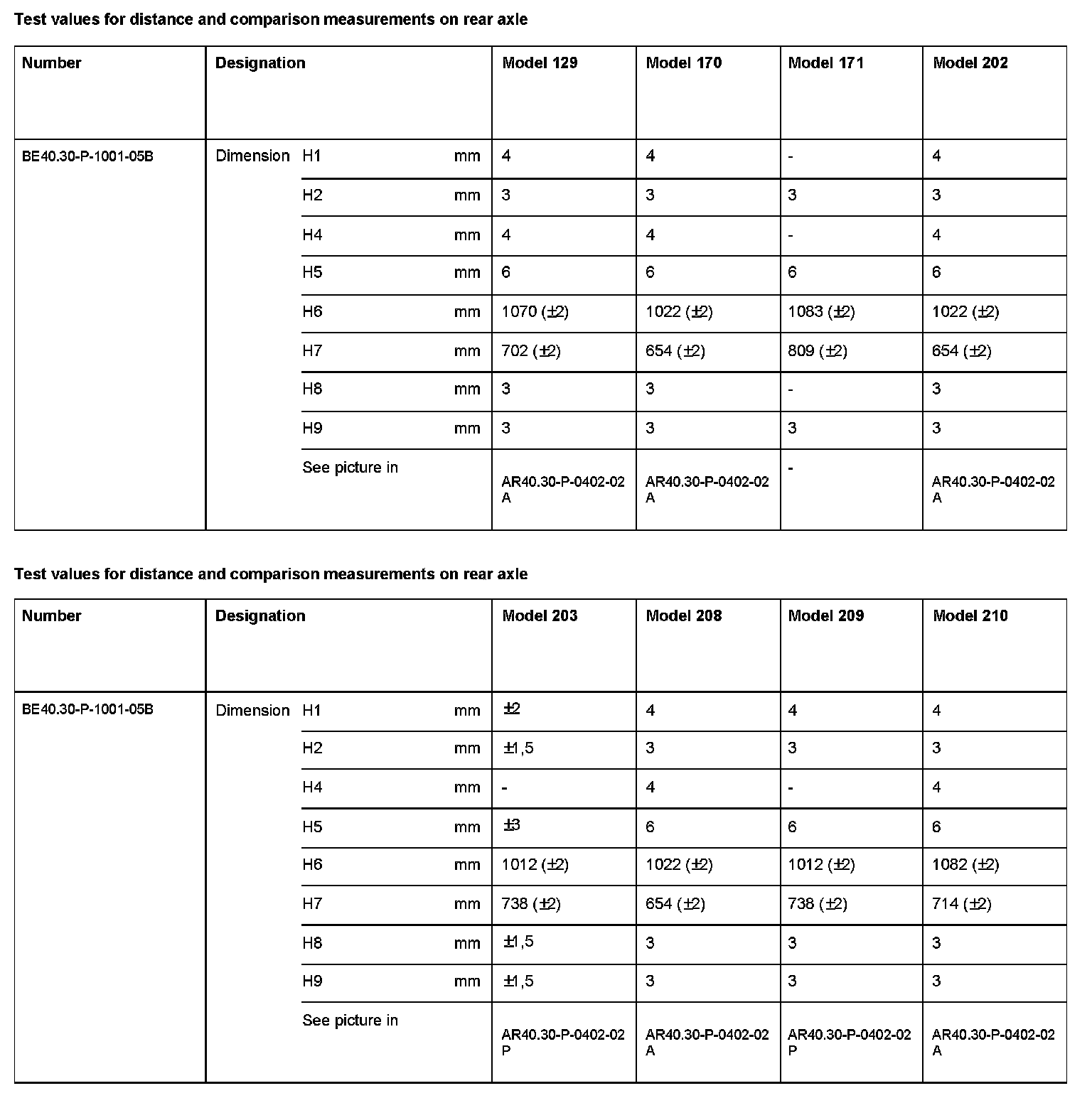

Test Values For Distance And Comparison Measurements On Rear Axle:
