Idler Arm: Testing and Inspection

Checking Ball Point Position





NOTE: Numbers in parentheses ( ) indicate a component or tool in the associated illustration.

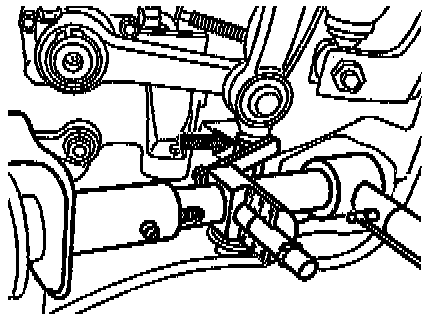

1. Install measuring device (01) tool No. 210 589 00 21 00 in the wishbone bolted connection and position on "0" on the scale by means of a plum bob





2. Check ball point position in the straight ahead position of the front wheels
- Slide (01b) on track rod
- Specification:
- Range: 21 to 25 mm
- Desired: 23 mm
3. If the ball point position is outside tolerance, refer to Adjustments
