AR67.10-P-1000-01C Cutting Out Windshield With Cutting Blades

AR67.10-P-1000-01C Cutting Out Windshield With Cutting Blades

Special Tools:

Commercially Available Tools:

Shorten blade on cutter (124 589 03 63 00) 10 mm to prevent damaging heat exchanger.

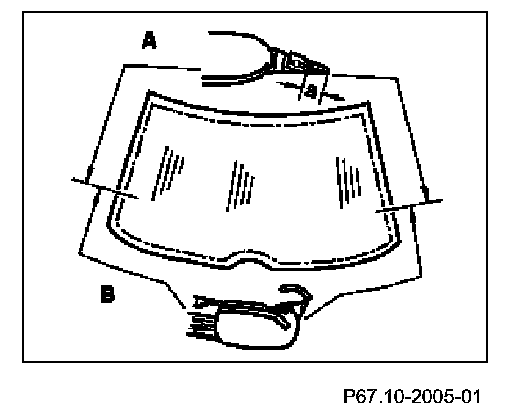

1. Clamp blade (124 589 12 63 00) into multi-cutter (stop dimension a = 20 mm).
2. Moisten whetstone and sharpen both sides of blade with machine switched on.
3. Cut out window in area "A" from inside.
4. Clamp blade (124 589 03 63 00) into multi-cutter (blade shortened 10 mm).
5. Moisten whetstone and sharpen both sides of blade with machine switched on.
6. Cut out window in area "B" from outside.

If it is not possible to cut all the way through the glue with the blades available use cutting wire.
