Electrical Seat Adjustment (ESA) PE91.29-U-2000RA
Electrical Seat Adjustment (ESA) PE91.29-U-2000RA
Seat Adjustment (ESA)

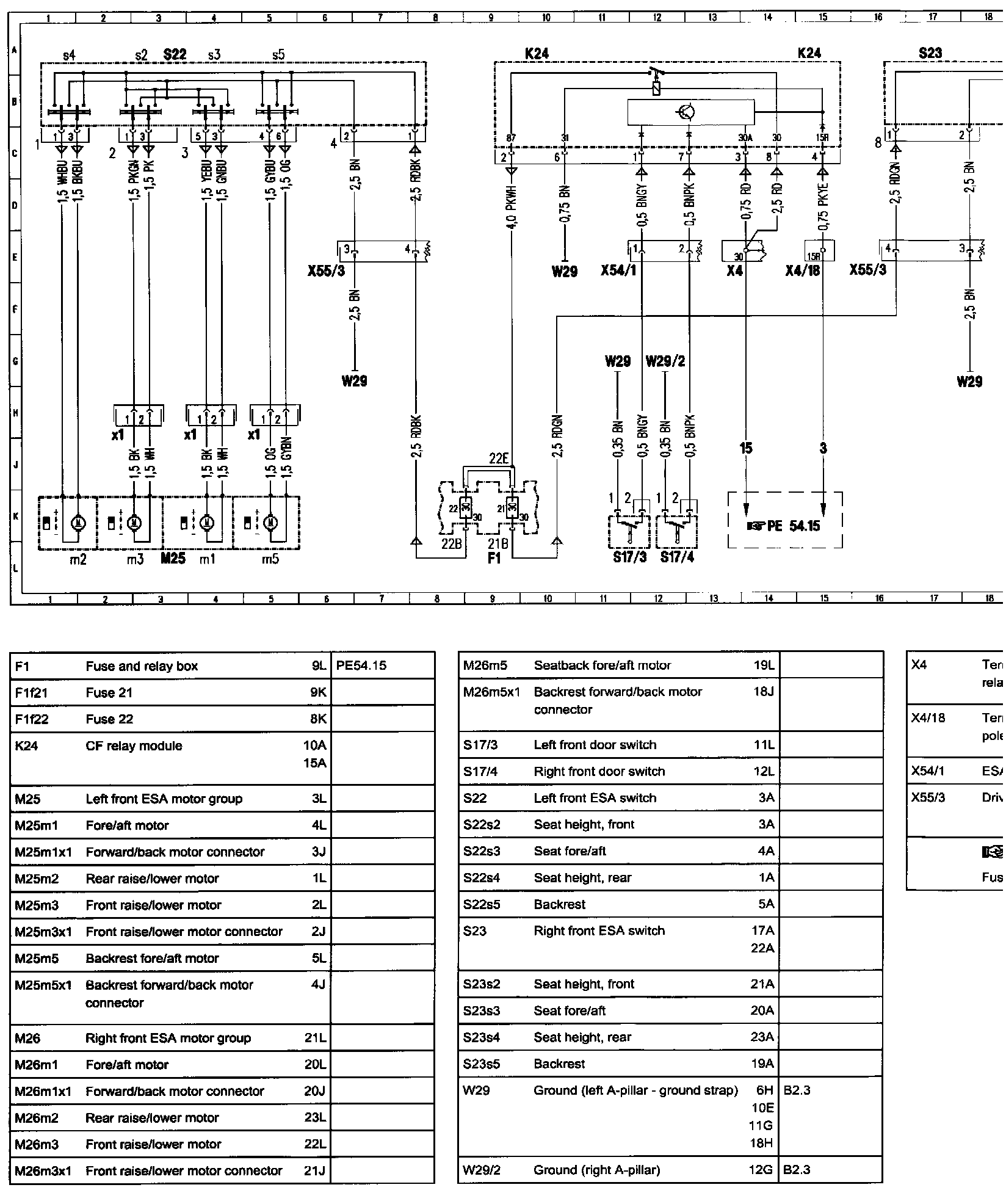

,x�VWiring Diagram:

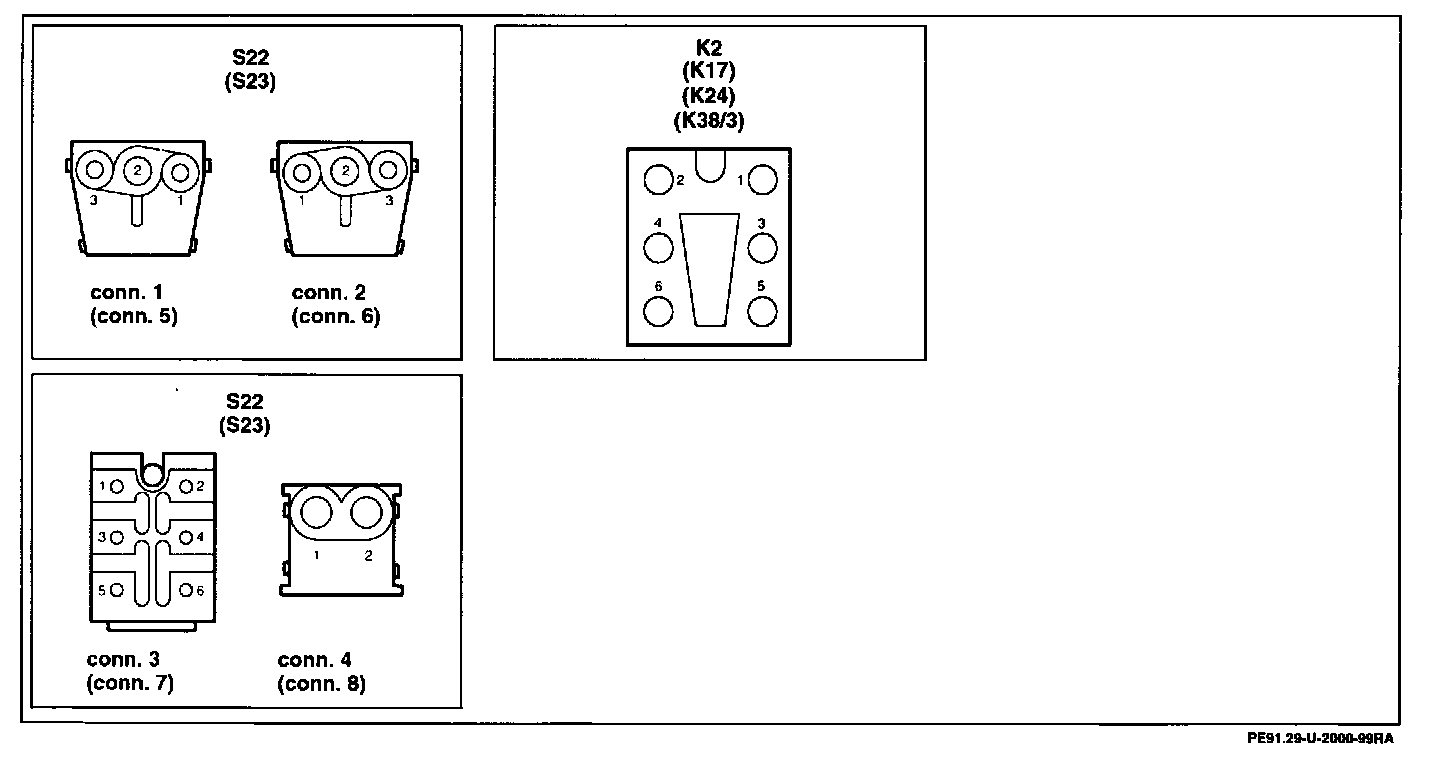

Connector Assignment:
