Drive Belt

LAYOUT OF POLY-V-BELT DRIVE:

The engine is equipped with two poly-V-belts.

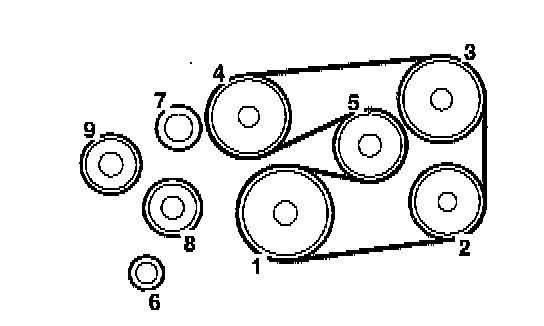

Routing, belt I:

Routing, belt I:
1 Crankshaft
2 Air conditioner compressor
3 Power steering pump
4 Coolant pump, fan

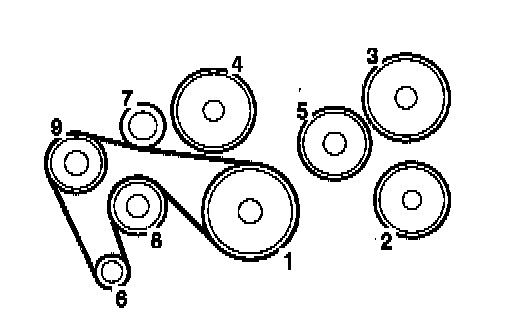

Routing, belt II:

Routing, belt II:
5 Idler pulley
6 Generator (alternator)
7 Idler pulley
8 Idler pulley
9 Supercharger

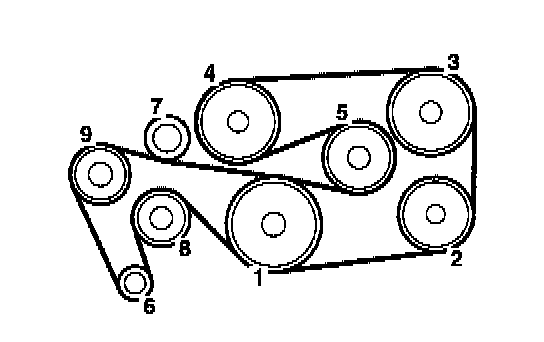

Routing combined, belts I and II:

Routing combined, belts I and II:
1 Crankshaft
2 Air conditioner compressor
3 Power steering pump
4 Coolant pump, fan
5 Idler pulley
6 Generator (alternator)
7 Idler pulley
8 Idler pulley
9 Supercharger
