Blower Motor: Service and Repair

Removing and Installing Blower Motor

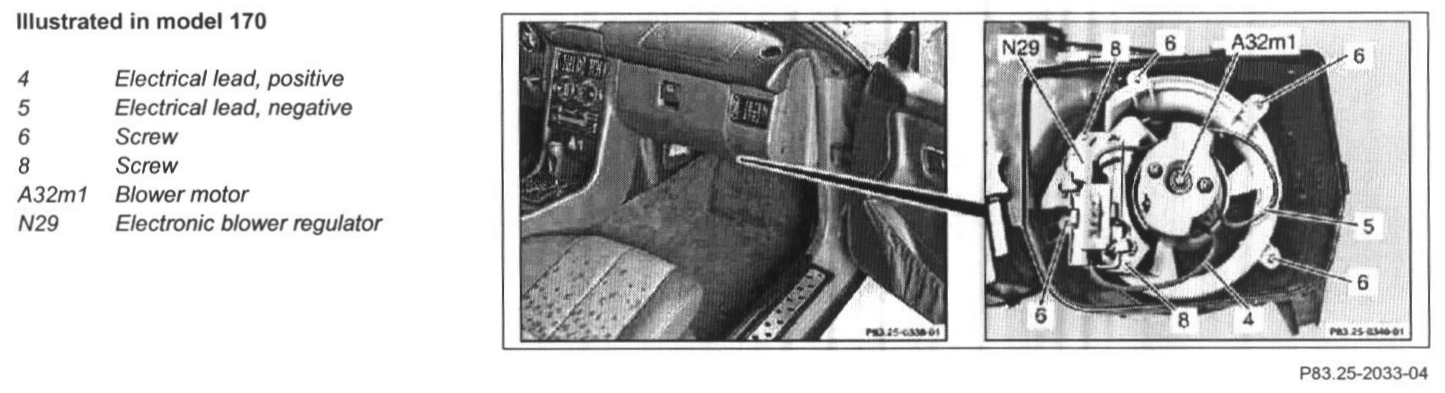

Illustrated In Model 170:

1 Remove electronic blower regulator (N29) Service and Repair
2 Unscrew screws (6)
3 Remove blower motor (A32m1)
4 Install in opposite order.
