Condenser HVAC: Service and Repair
Removing and installing
condenser

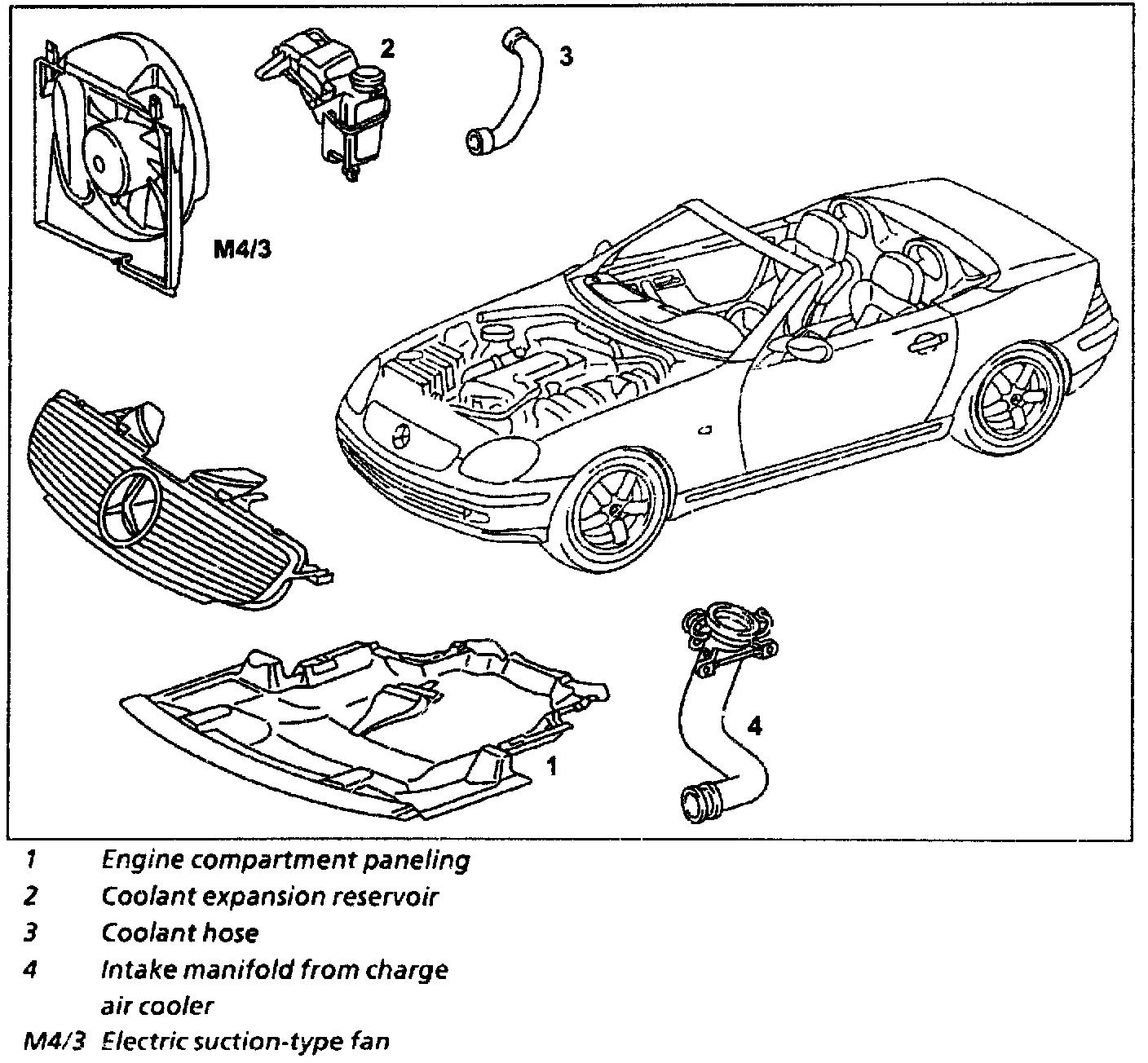

Component Id:
Component Id:
Remove, Install - Steps 1-11:

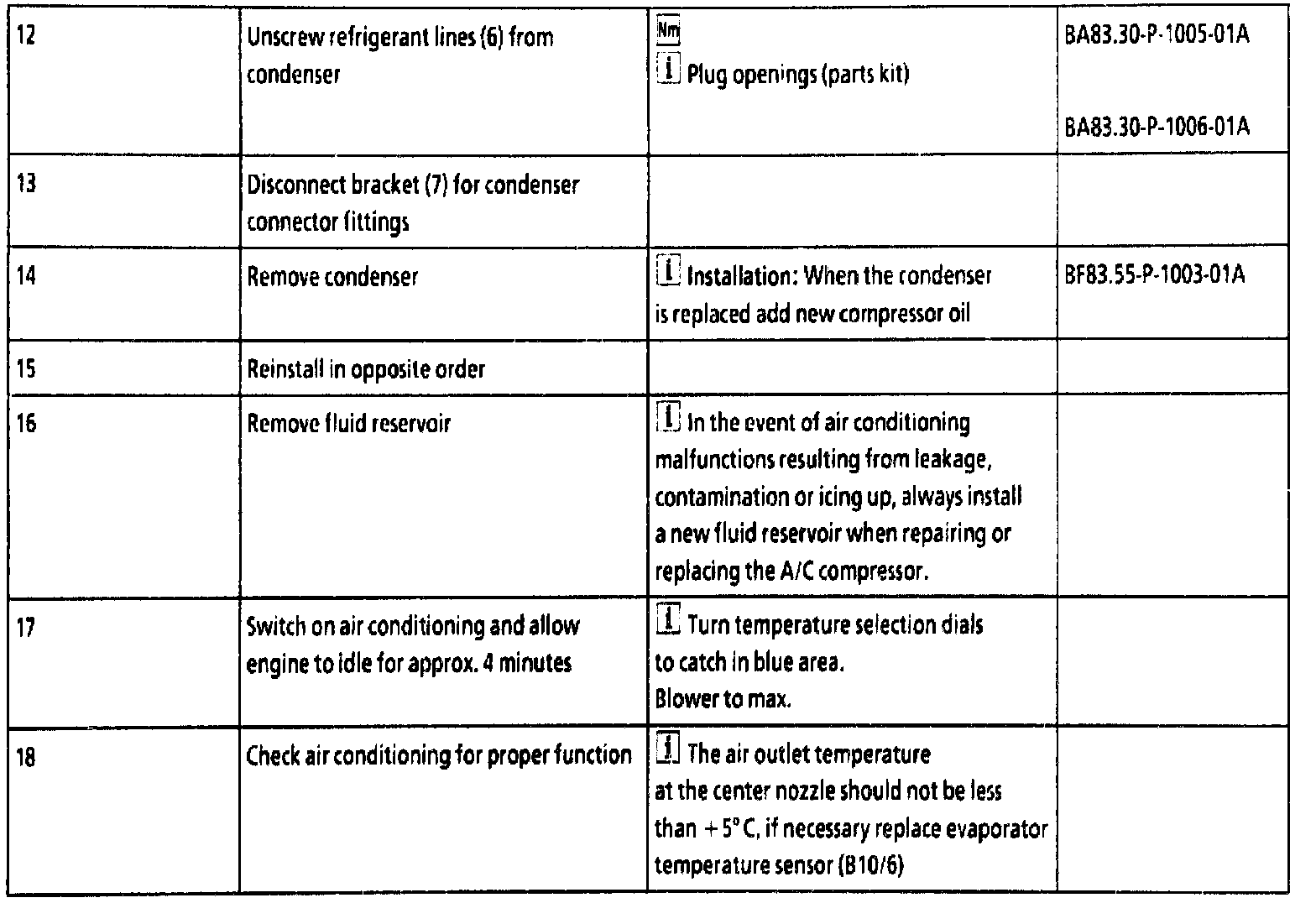

Remove, Install - Steps 12-18:
Torque Specs:

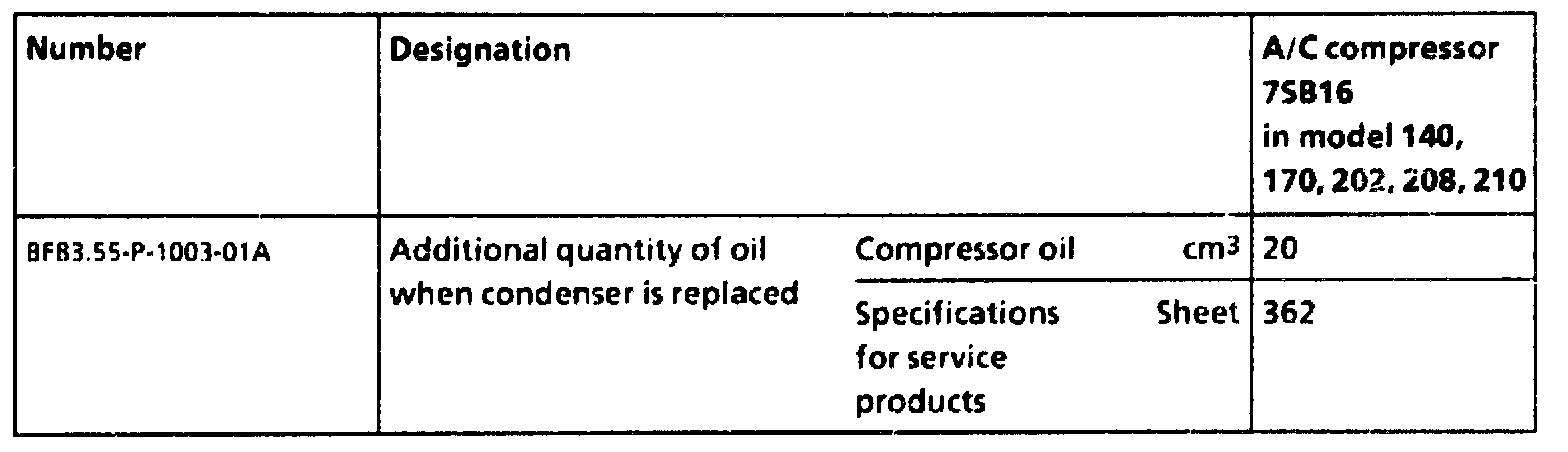

Capacity Specs:
