ME-SFI Fuel Injection/Ignition System PE07.61-U-2000V (Up to 2/28/00)
ME-SFI Fuel Injection and Ignition System
PE07.61-U-2000V - Engine Block Harness (Up to Feb 28, 2000)
Wiring Diagram
3� :

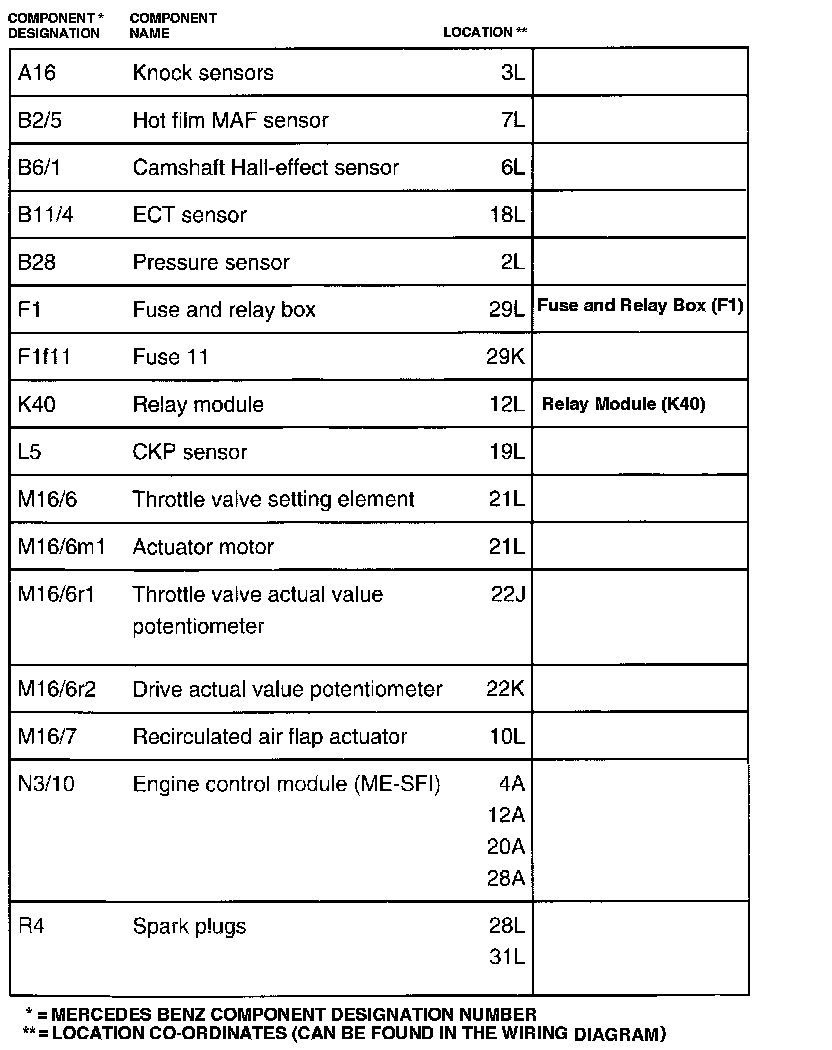

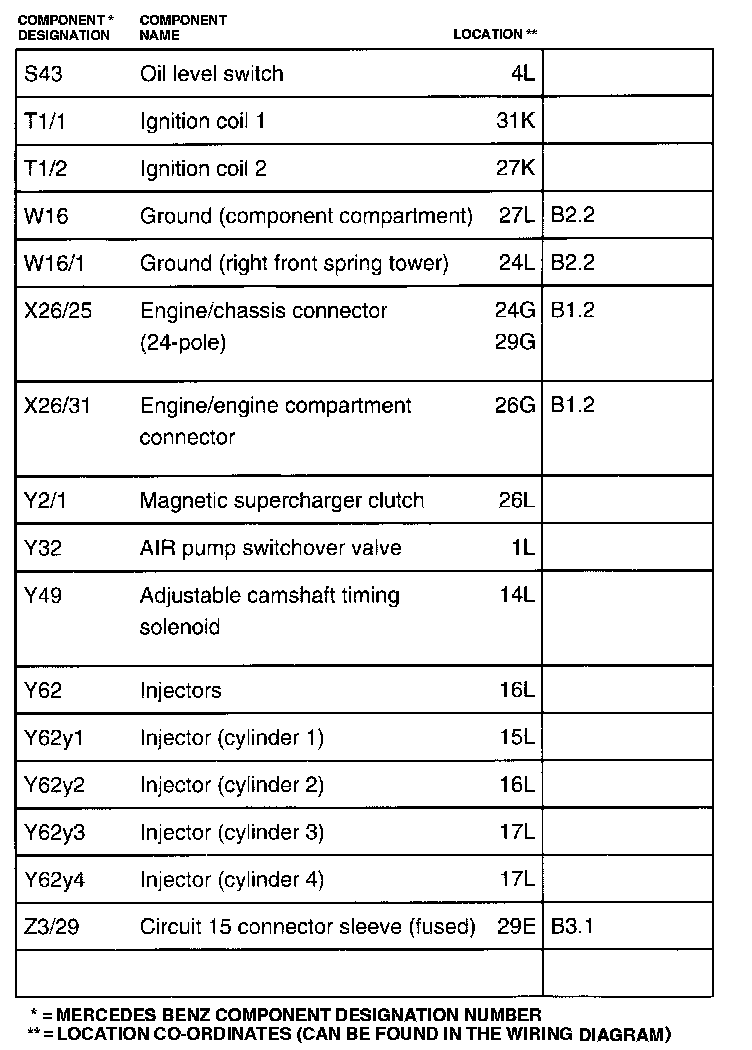

Component Grid Location
A16 - R4:
S43 - Z3/29:
Z6/1 - Z20:
Pin-Out Testing - Component: N3/10 - Engine Control Module

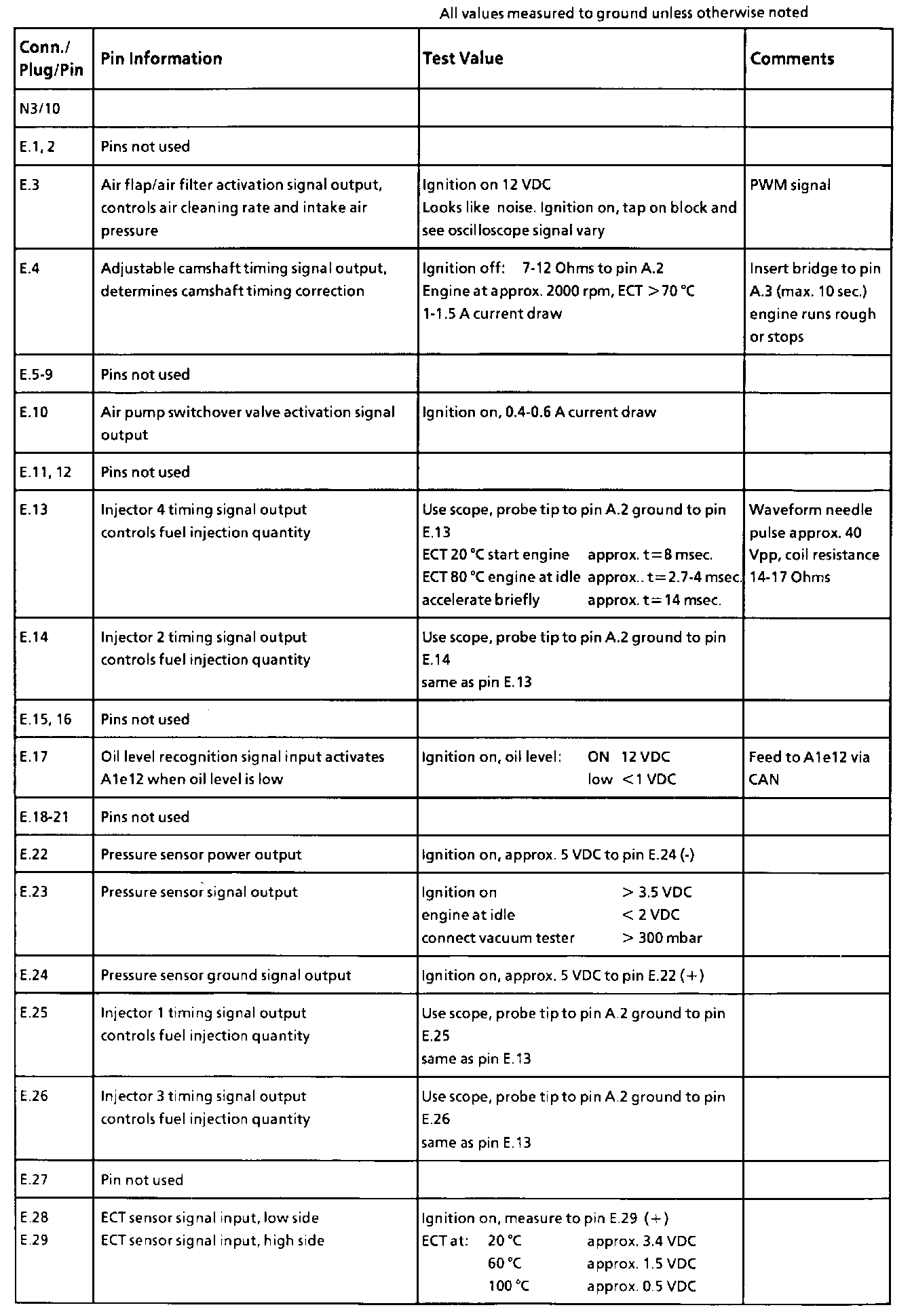

Connector N - Pin 3 Through E - Pin 29:

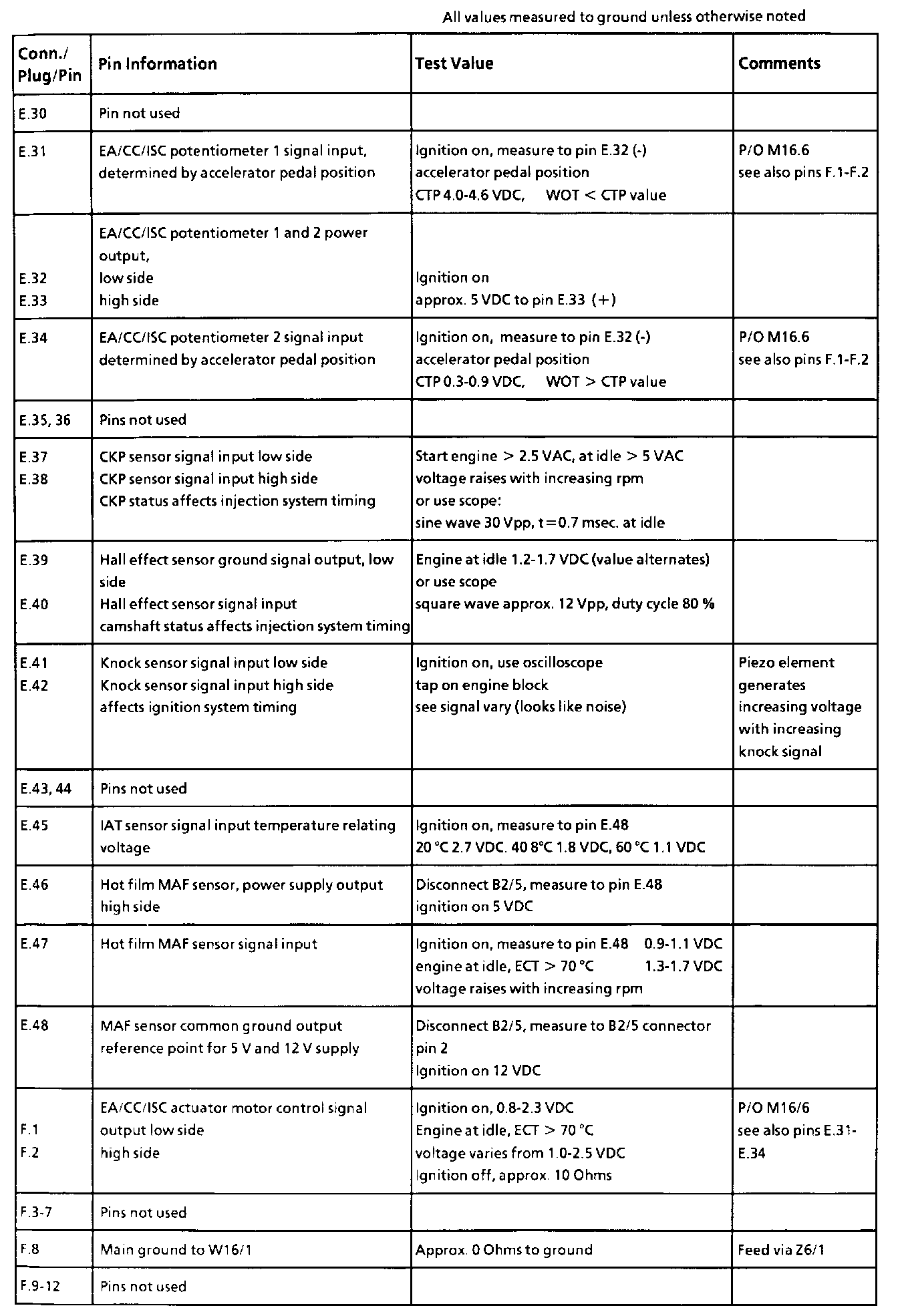

Connector E - Pin 30 Through F - Pin 12:

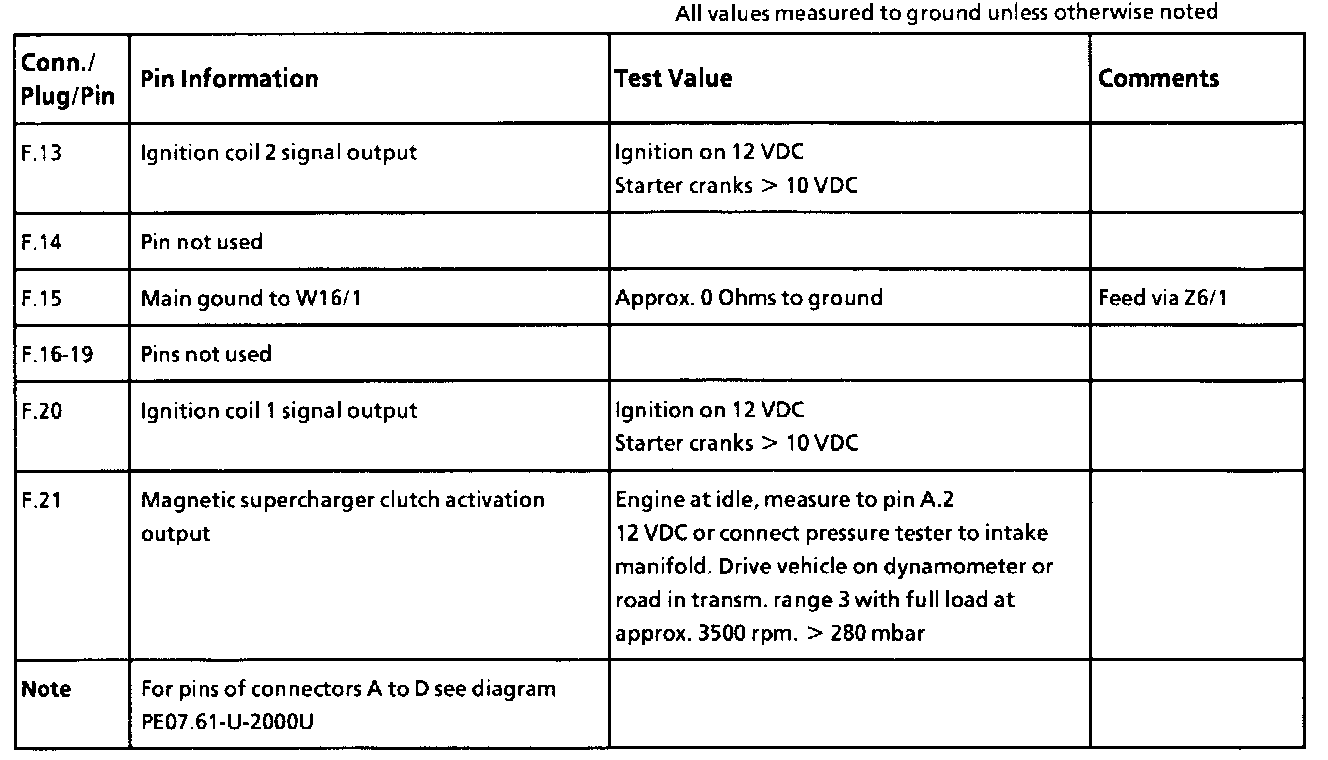

Connector F - Pin 13 Through F - Pin 21:

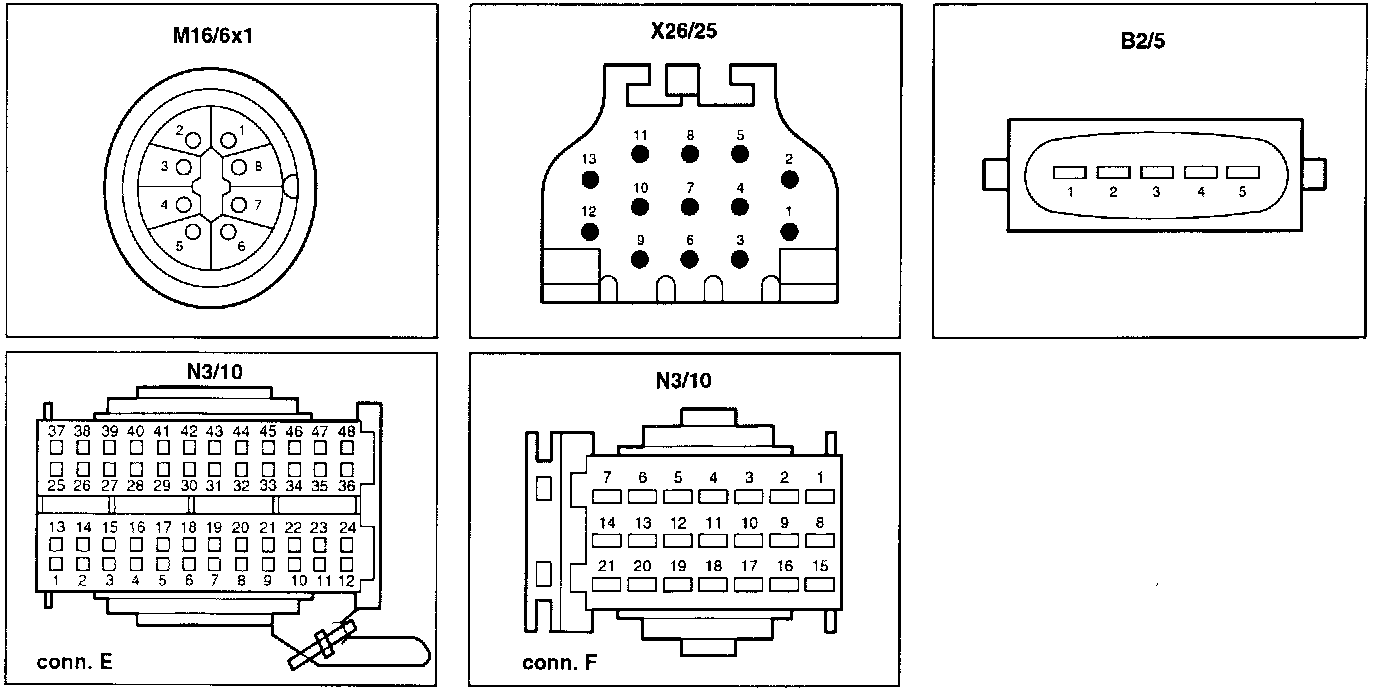

Connector Views:
