Cycle Module (N65) PE54.21-U-2100RA (As of 3/1/00)
Cycle Module (N65) PE54.21-U-2100RA (As of 3/1/00)
Cycle Module (N65) From Mar 1, 2000
Wiring Diagram:
Connector Assignment:

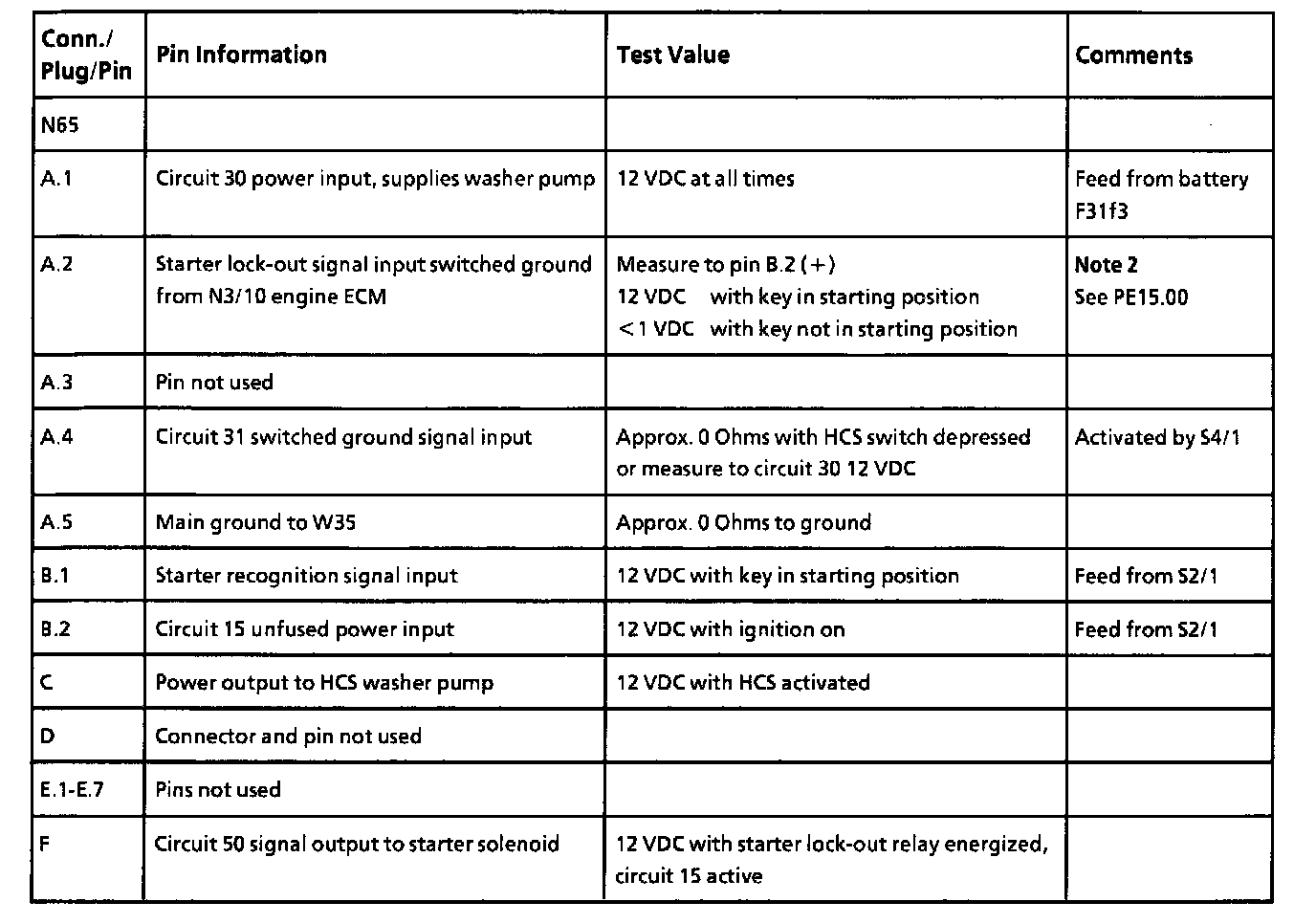

Pin Information:
