Starter, Generator PE15.00-U-2000O (Up to 2/28/00)
Starter, Generator Up to Feb 28, 2000

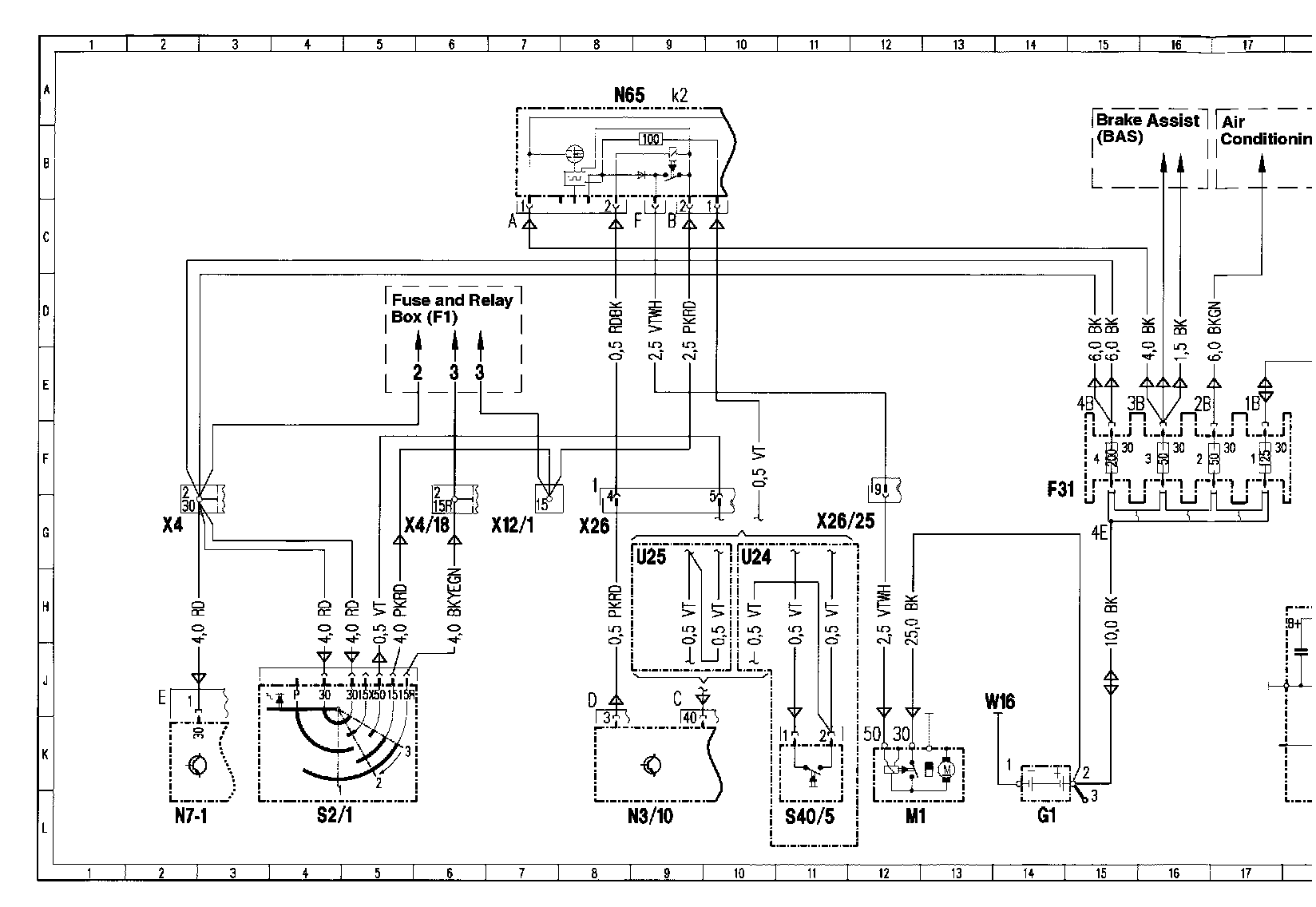

Wiring Diagram
�|�(Applicable from 6/98:

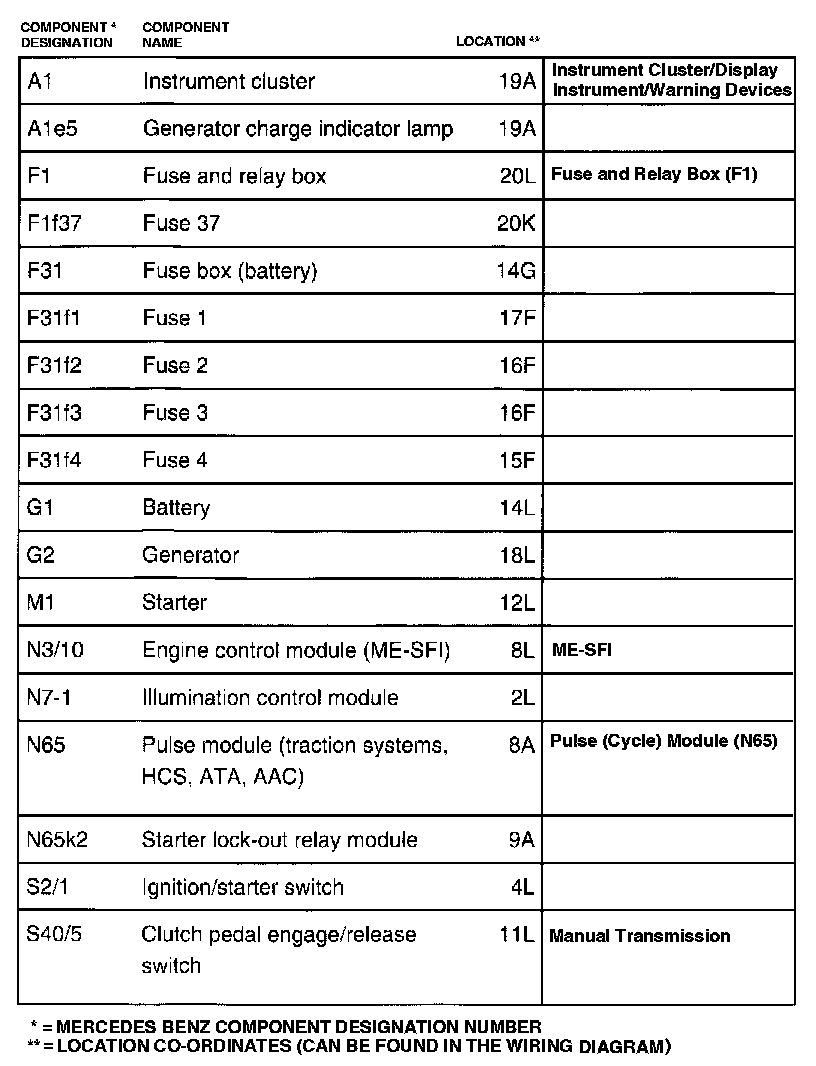

Component Grid Location
A1 - S40/5:
U24 - Z3/11:

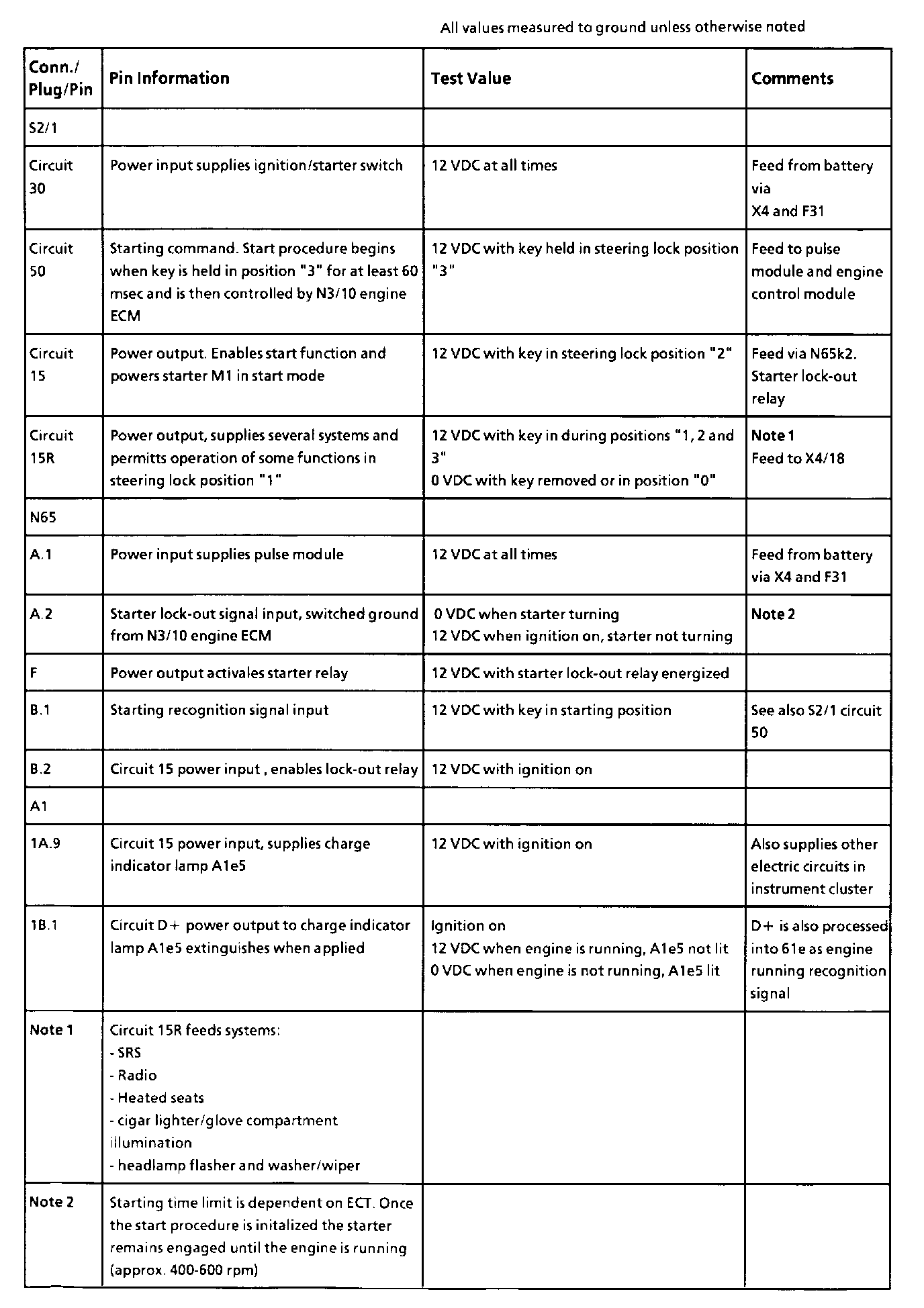

Pin-Out Testing - Component: S2/1
Data:
Connector Views:
Starter, Generator Up to Feb 28, 2000
Wiring Diagram
Component Grid Location
Pin-Out Testing - Component: S2/1
