Retractable Rear Head Restraints (RHR) PE91.16-U-2000B



Retractable Rear Head Restraints (RHR) PE91.16-U-2000B

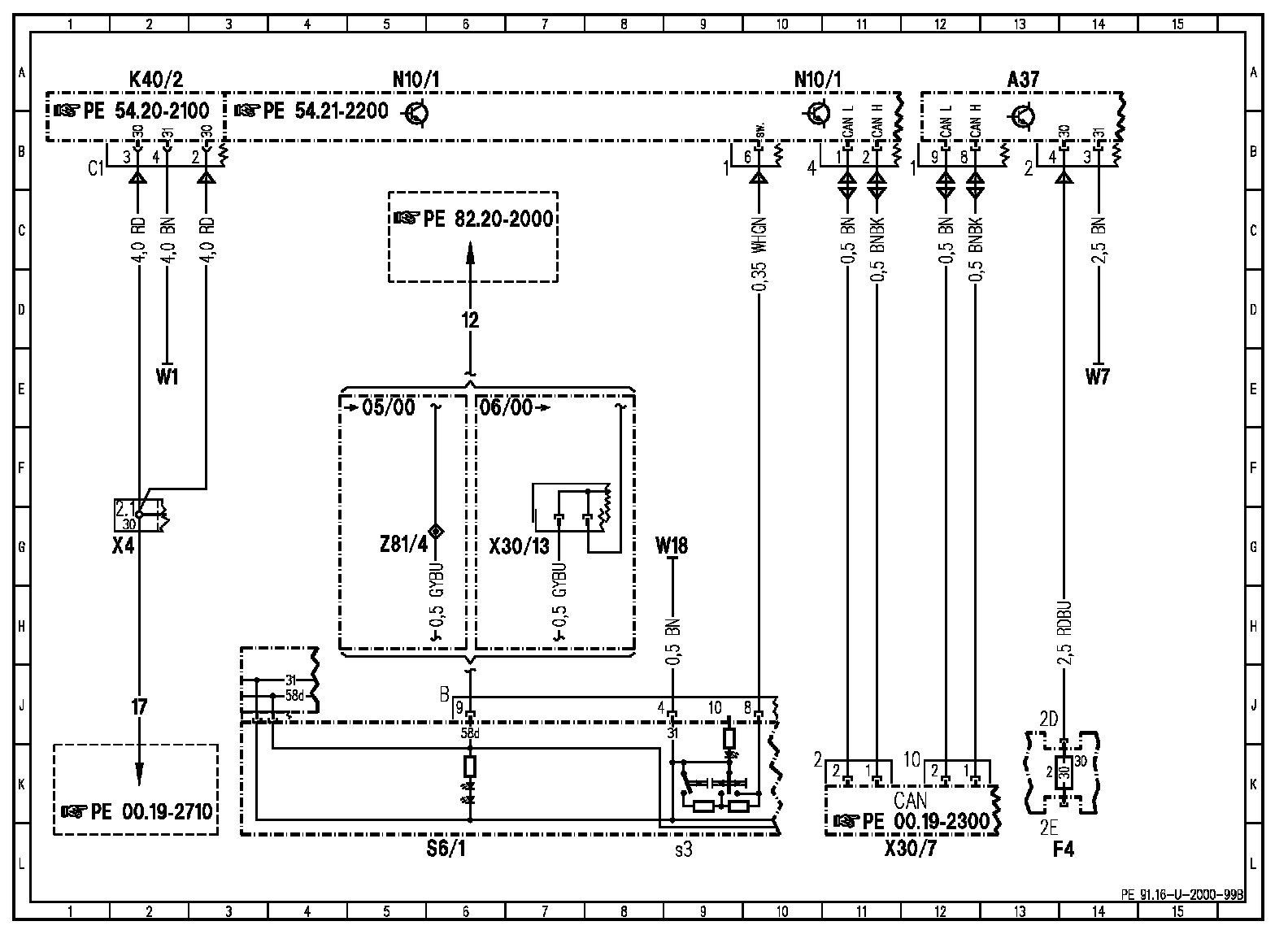

Wiring Diagram:

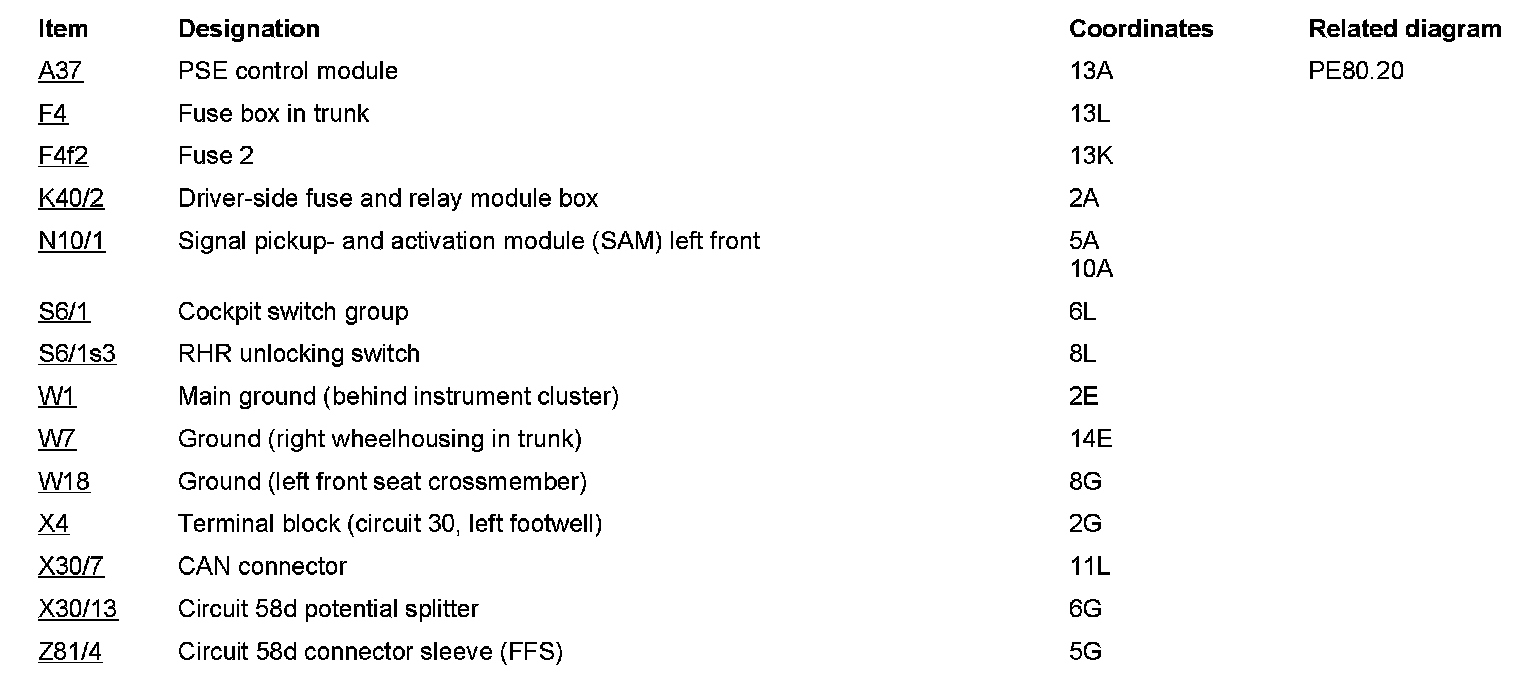

Component Description/Coordinates, A37 To Z81/4:






Component Locations: Component Location photographs can be found via their component names at the vehicle level.
