Window Shade

Rear Sun Shade PE68.50-U-2000WA

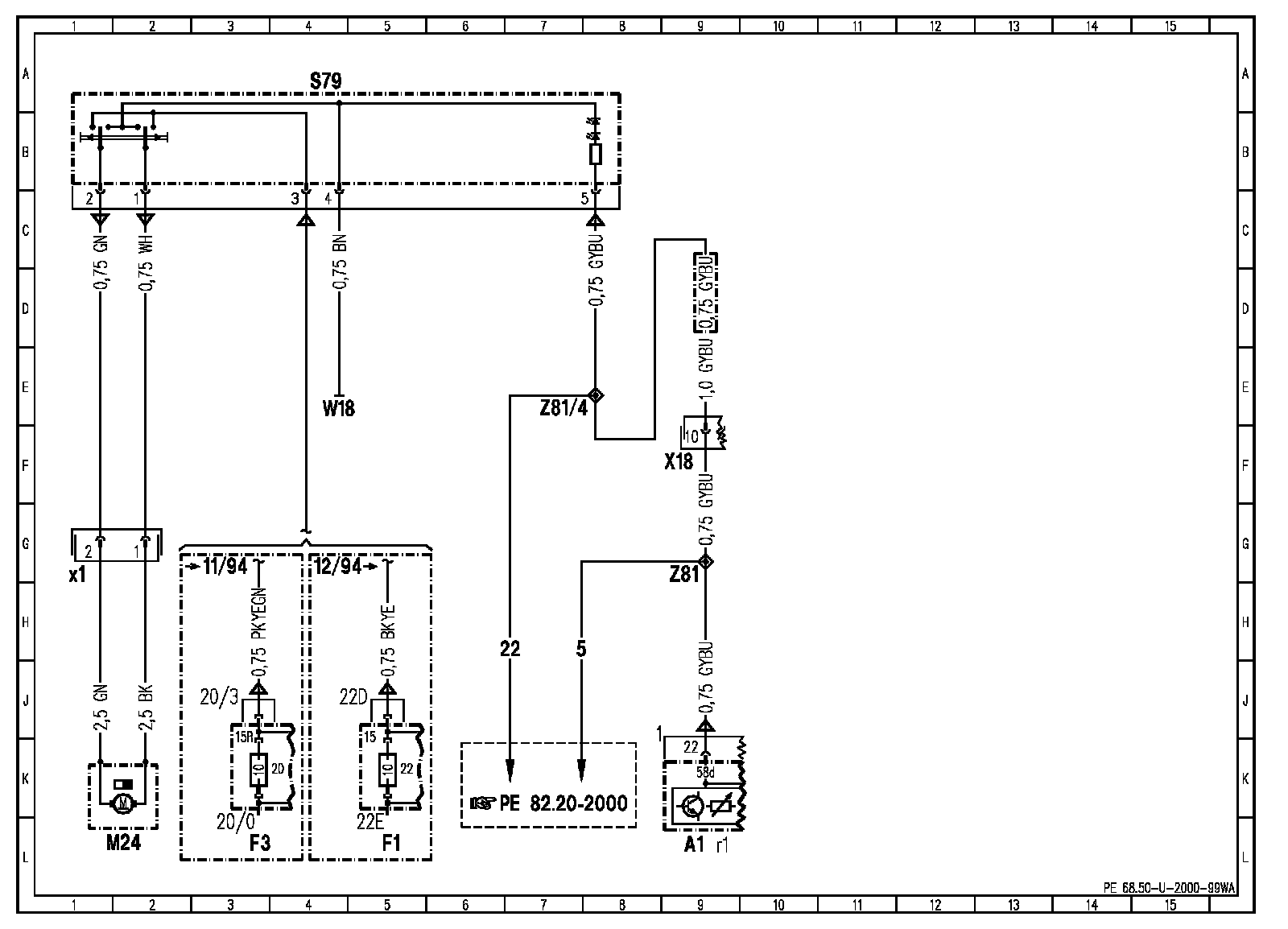

Wiring Diagram:

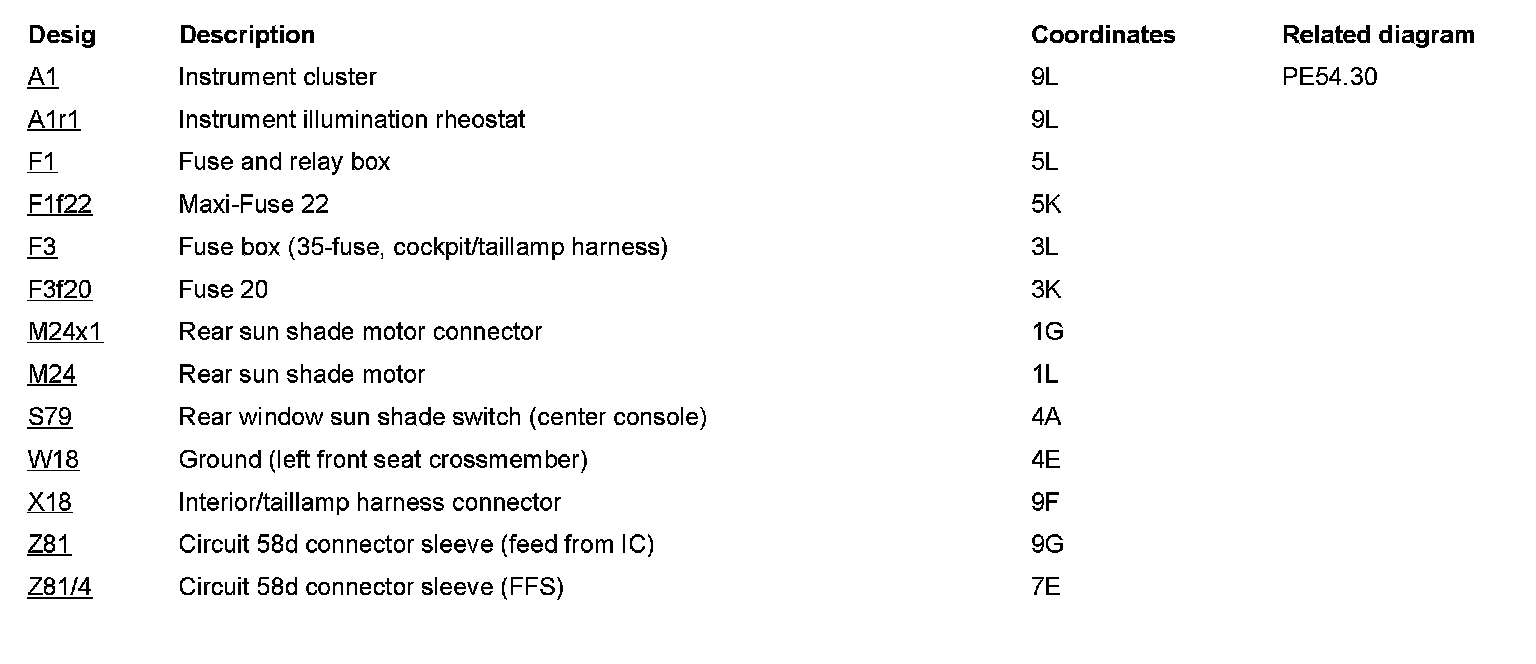

Component Description/Coordinates, A1 To Z81/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level.
