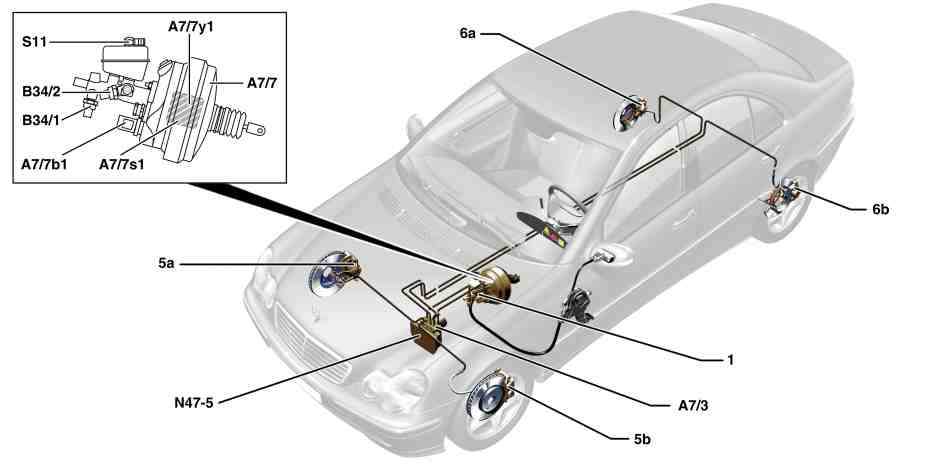

GF42.45-P-0001-02PP Electronic Stability Program (ESP), Location of Hydraulic Components

GF42.45-P-0001-02PP Electronic Stability Program (ESP), Location of Hydraulic Components
-MODEL 203 up to 7/01
- with CODE (472a) Electronic Stability Program





1 Tandem master cylinder
5a Right front brake caliper
5b Left front brake caliper
6a Right rear brake caliper
6b Left rear brake caliper
A7/3 ESP hydraulic unit
A7/7 BAS brake booster
b1 BAS diaphragm travel sensor
BAS release switch
BAS solenoid valve
B34/1 ESP brake pressure sensor 1
B34/2 ESP brake pressure sensor 2
N47-5 ESP and BAS control module
S11 Brake fluid level switch
