Instrument Cluster / Carrier: Application and ID

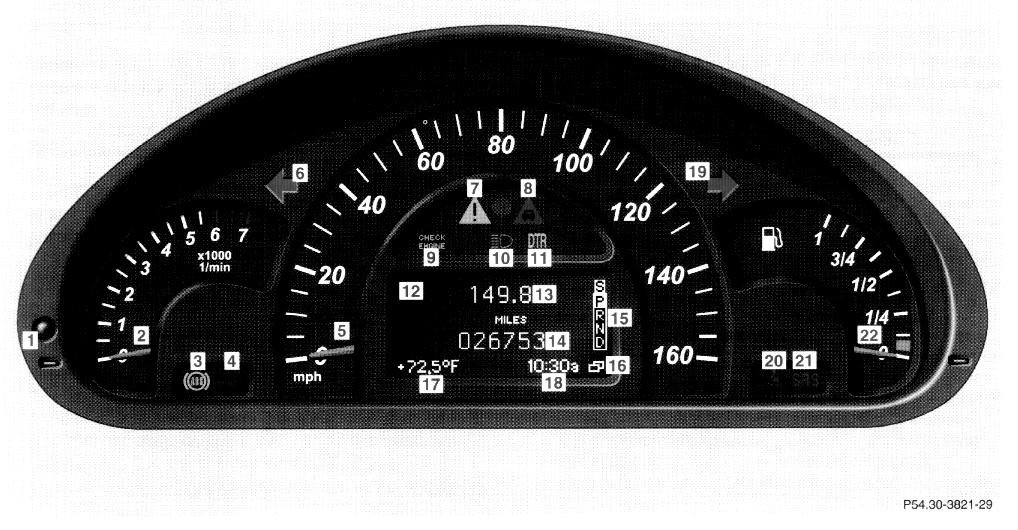

Instrument cluster:



1 Knob for instrument cluster illumination

Reset knob for trip odometer, and individual settings

2 Tachometer

3 Antilock brake system (ABS) malfunction indicator lamp

4 Brake fluid low or parking brake engaged

5 Speedometer

6 Left turn signal indicator lamp

7 Electronic stability program (ESP) warning lamp, system is adjusting to road conditions

8 Indicator lamp without function. It illuminates with the electronic key in starter switch position 2. It should go out when the engine is running.

9 CHECK ENGINE malfunction indicator lamp

10 High beam headlamp indicator

11 Indicator lamp without function. It illuminates with the electronic key In starter switch position 2. It should go out when the engine Is running.

12 Multifunction display

Instrument cluster display

13 Trip odometer

14 Main odometer

15 Display for program mode and gear range indicators

16 Malfunction/warning message memory

17 Outside temperature indicator

18 Digital clock

19 Right turn signal indicator lamp

20 Fasten seat belts

21 Supplemental restraint system (SRS) malfunction indicator lamp

22 Fuel gauge with reserve and fuel cap placement warning lamp
