GF40.15-P-0002-03P Tire Pressure Loss Warning (RDW) Mercedes-Benz Driver Information Service

GF40.15-P-0002-03P Tire Pressure Loss Warning (RDW) Mercedes-Benz Driver Information Service
- with CODE (477) Tire pressure loss warning

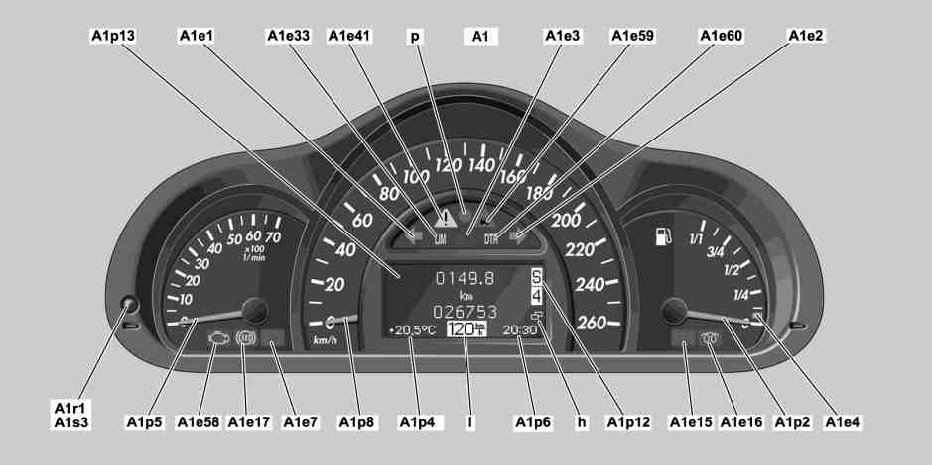

Models 203.0/2





h Information symbol for faults
i Vehicle speed limiter
p Phototransistor
A1 Instrument cluster
A1e1 Left turn signal indicator lamp
A1e2 Right turn signal indicator lamp
A1e3 Main beam indicator lamp
A1e4 Fuel reserve warning lamp
A1e7 Brake fluid and parking brake warning lamp
A1e9 Seat belt warning lamp
A1e15 Airbag malfunction indicator and warning lamp
A1e16 Preglow indicator lamp
A1e17 ABS indicator lamp
A1e33 LIM (variable vehicle speed limiter) function lamp
A1e41 ESP warning lamp
A1e58 Engine diagnosis malfunction indicator lamp
A1e59 DTR warning lamp
A1e60 DTR malfunction indicator lamp
A1p2 Fuel level and reserve gauge
A1p4 Ambient temperature display
A1p5 Tachometer
A1p6 Electronic clock
A1p8 Electronic speedometer
A1p12 Gear indicator
A1p13 Multifunction display
A1r1 Variable resistor for instrument illumination
A1s3 Trip counter reset button

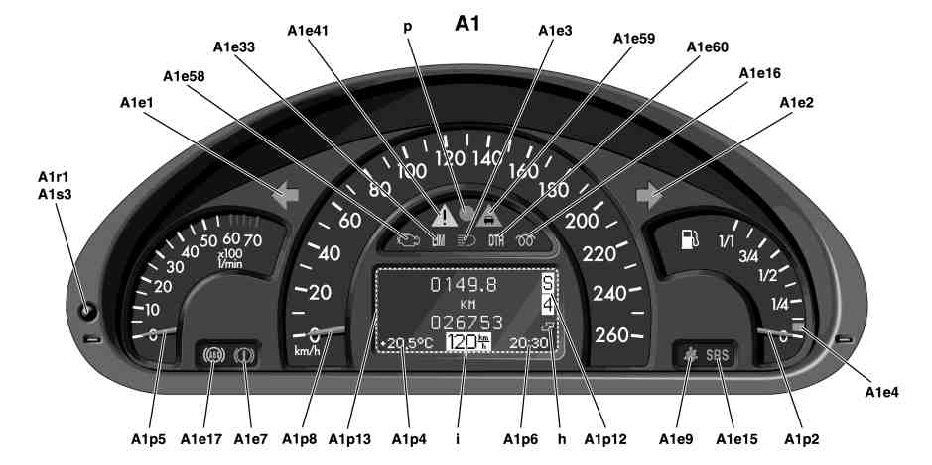

MODEL 203.7

h Information symbol for faults
i Vehicle speed limiter
p Phototransistor
A1 Instrument cluster
A1e1 Left turn signal indicator lamp
A1e2 Right turn signal indicator lamp
A1e3 Main beam indicator lamp
A1e4 Fuel reserve warning lamp
A1e7 Brake fluid and parking brake warning lamp
A1e9 Seat belt warning lamp
A1e15 Airbag malfunction indicator and warning lamp
A1e16 Preglow indicator lamp
A1e17 ABS indicator lamp
A1e33 LIM (variable vehicle speed limiter) function lamp
A1e41 ESP warning lamp
A1e58 Engine diagnosis malfunction indicator lamp
A1e59 DTR warning lamp
A1e60 DTR malfunction indicator lamp
A1p2 Fuel level and reserve gauge
A1p4 Ambient temperature display
A1p5 Tachometer
A1p6 Electronic clock
A1p8 Electronic speedometer
A1p12 Gear indicator
A1p13 Multifunction display
A1r1 Variable resistor for instrument illumination
A1s3 Trip counter reset button

The tire pressure loss warning (RDW) can be displayed in the multifunction display (A1p13) in the instrument cluster (A1).

These can be shown as follows:
^ Warning messages
^ Information displays

The messages in the multifunction display (A1p13) can be:
^ shown against a colored background
^ acknowledgeable
^ not acknowledgeable





Fig. 1

System information

Re figure 1:

The tire pressure loss warning (RDW) is first available as of "circuit 15 ON".





Figure 2

Selection screen

Re picture 2:

This display appears when a reactivation is performed.





Fig. 3

Selection screen

Re picture 3:

Once the tires have been checked, the confirmation for the tire pressure loss warning (RDW) is given in this display.

If this confirmation dies not take place, the tire pressure loss warning is not active.





Figure 4

Confirmation screen

Re picture 4:

This display appears to confirm that the tire pressure loss warning is active.





Fig. 5

Warning message

Re picture 5:

Warning message while driving

The message can be acknowledged.

The tire pressure loss warning has established that the rolling circumferences of the wheels have changed relative to each other.

It is necessary to check the wheels.





Fig. 6

System reminder

Re picture 6:

Since the last red warning message the tire pressure loss warning has not yet been restarted.





Figure 7

System message

Re picture 7:

In this display a driver's acknowledgment is no longer possible.

Activation is only possible in the workshop via STAR DIAGNOSIS.
