B1.3 - Interior Compartment (Cockpit)

Arrangement and assignment of the wiring and plug connectors, interior compartment (cockpit)

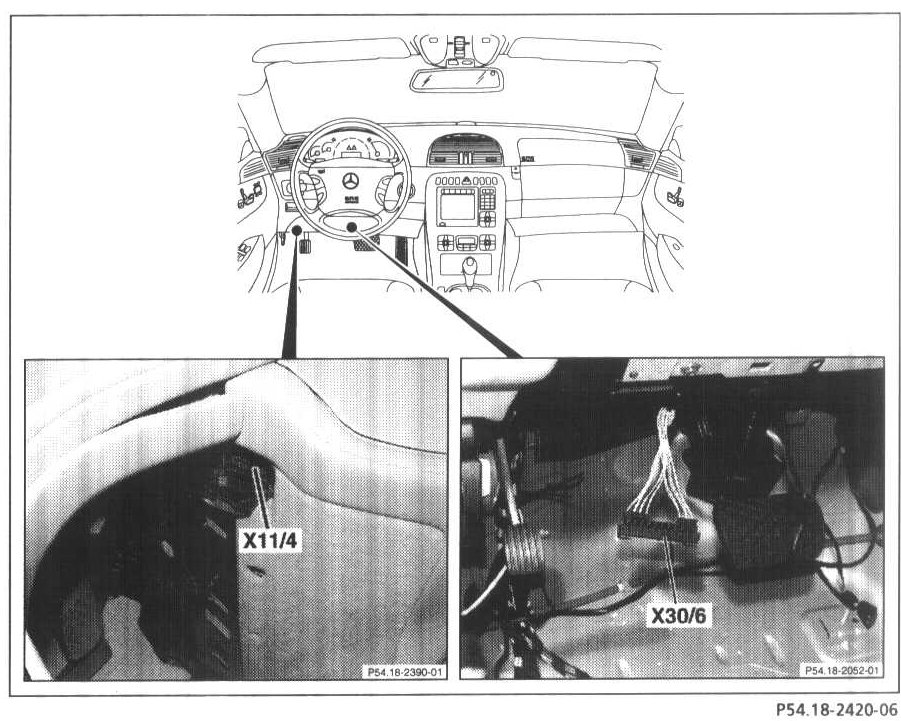

Arrangement

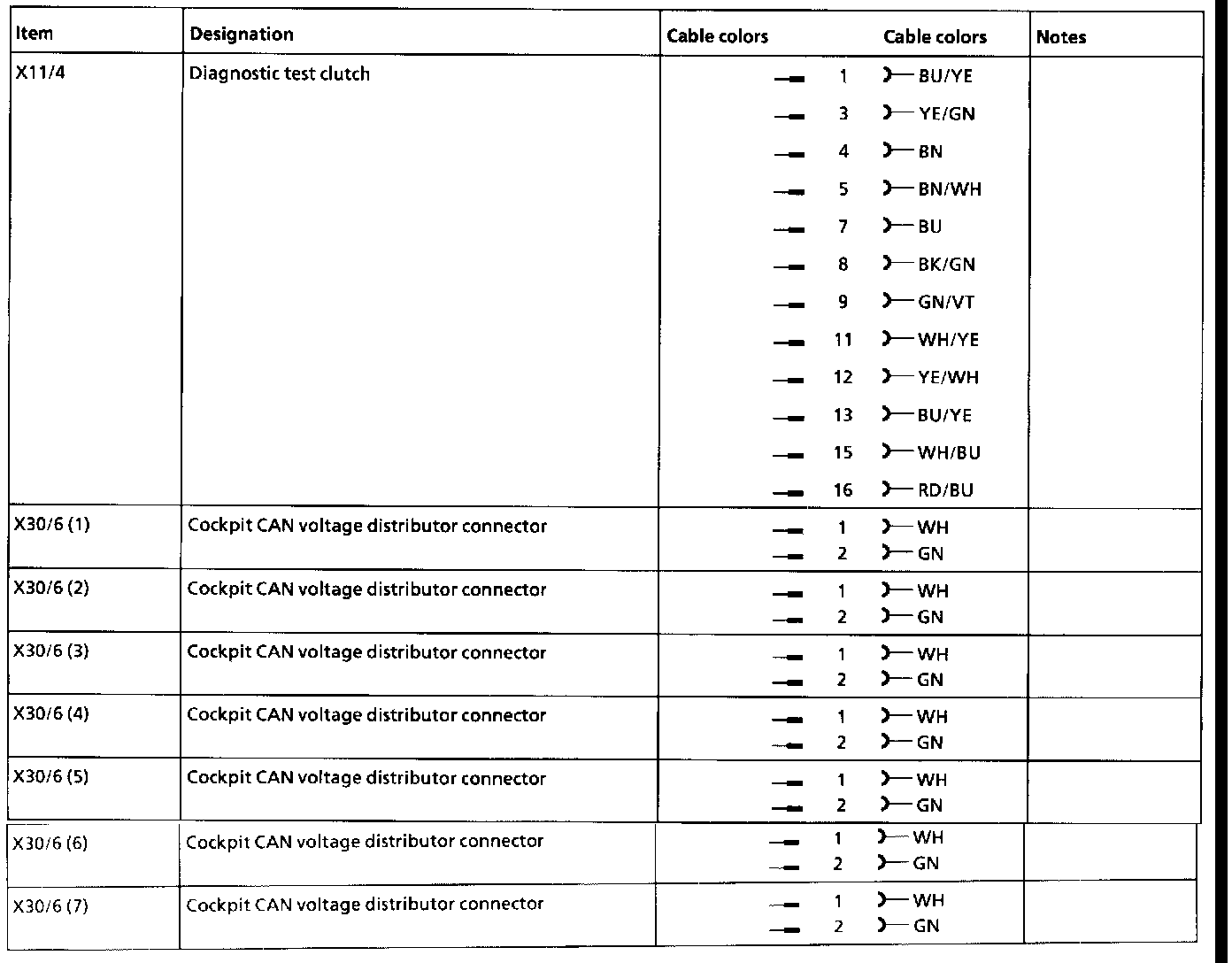

Assignment
