Voice Activation System
>>

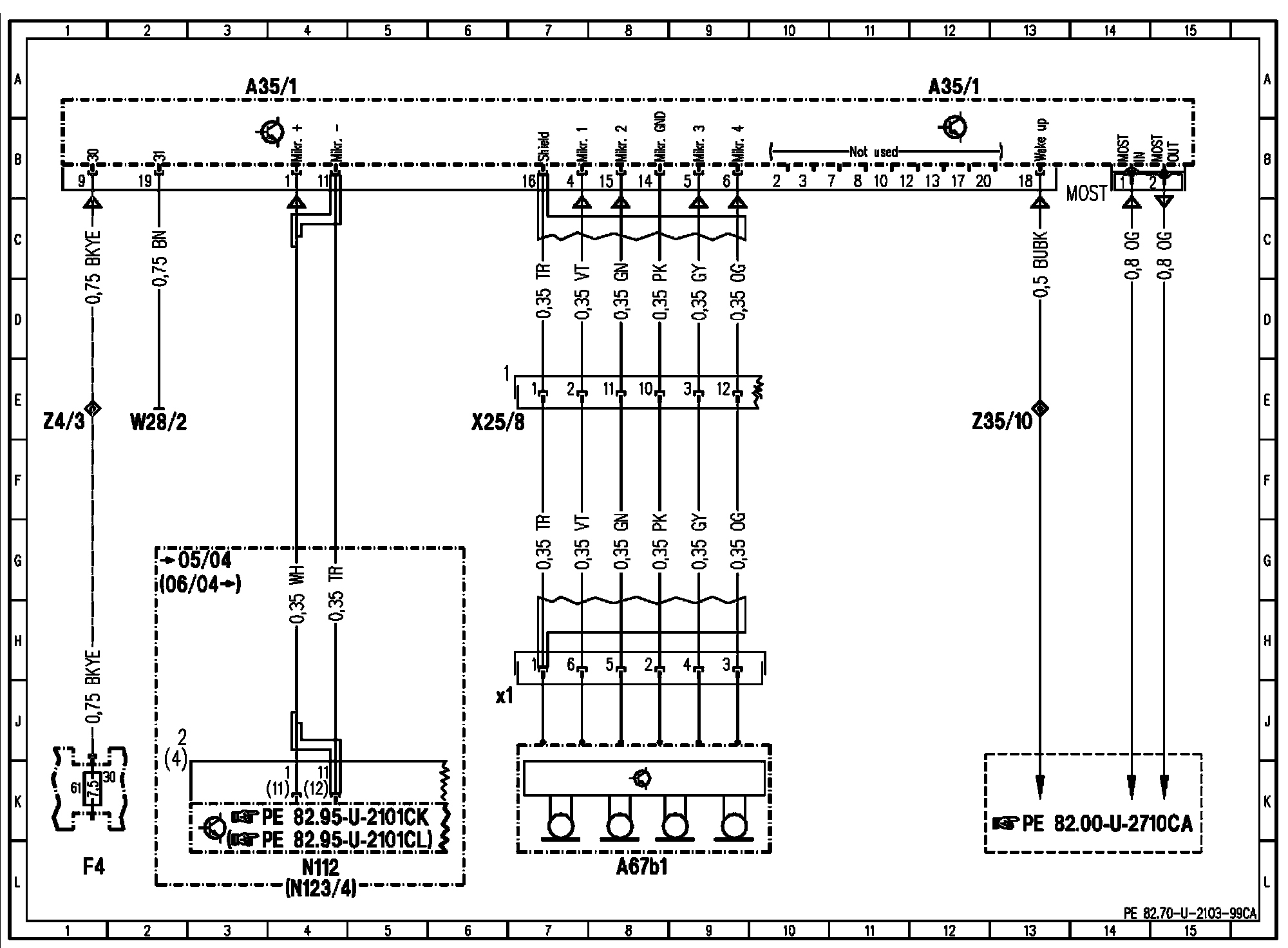

PE82.70-U-2103CA Hand-Free Microphone Control Module
PE82.70-U-2103CA Hand-Free Microphone Control Module
PE82.70-U-2103CA Hand-Free Microphone Control Module
Control Module A35/1
