B2.4 - Interior Compartment (Left)



Arrangement and assignment of ground terminals, Interior Compartment (Left)

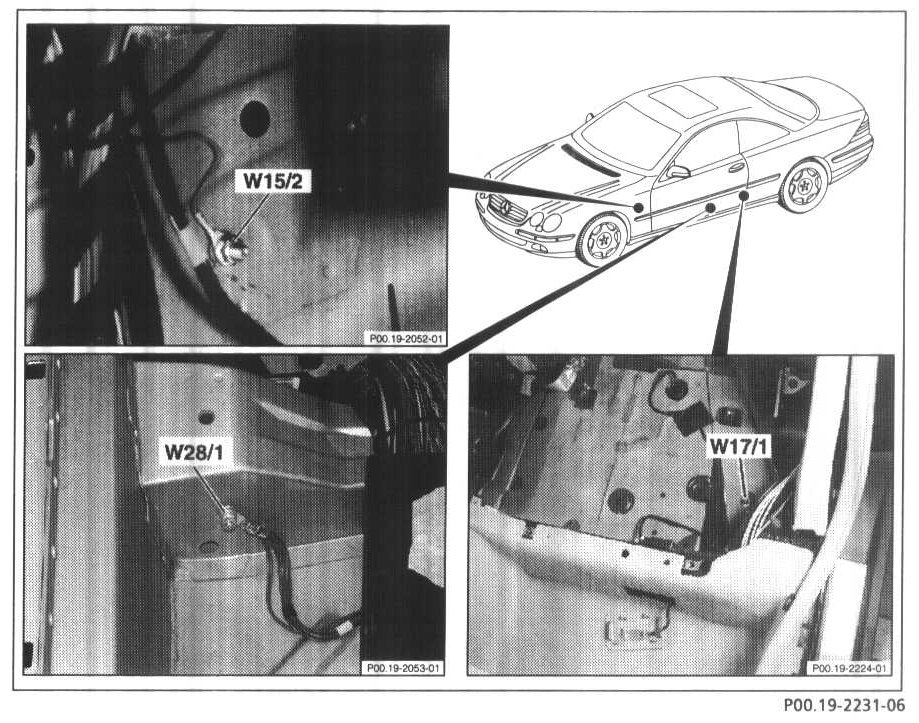

Arrangement

B2.4 Grounds:

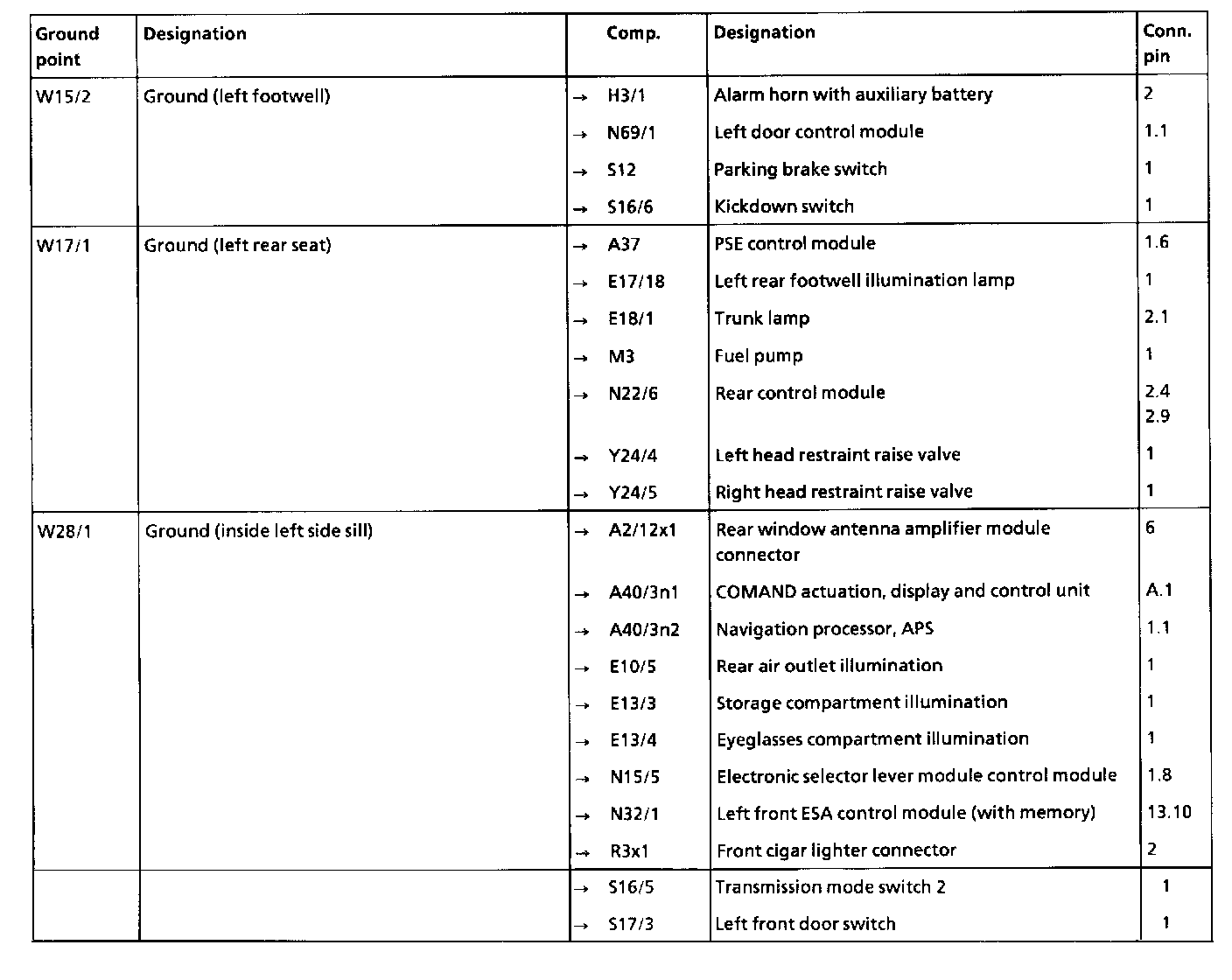

Assignment

B2.4 Designation:
