Home
>>
Mercedes Benz
>>
2001
>>
CL 600 (215.378) V12-5.8L (137.970)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Cabin Ventilation Grille
>>
Service and Repair
>>
Procedures
Procedures
AP83.10-P-8339M Clean Water Drain In Air/Water Duct

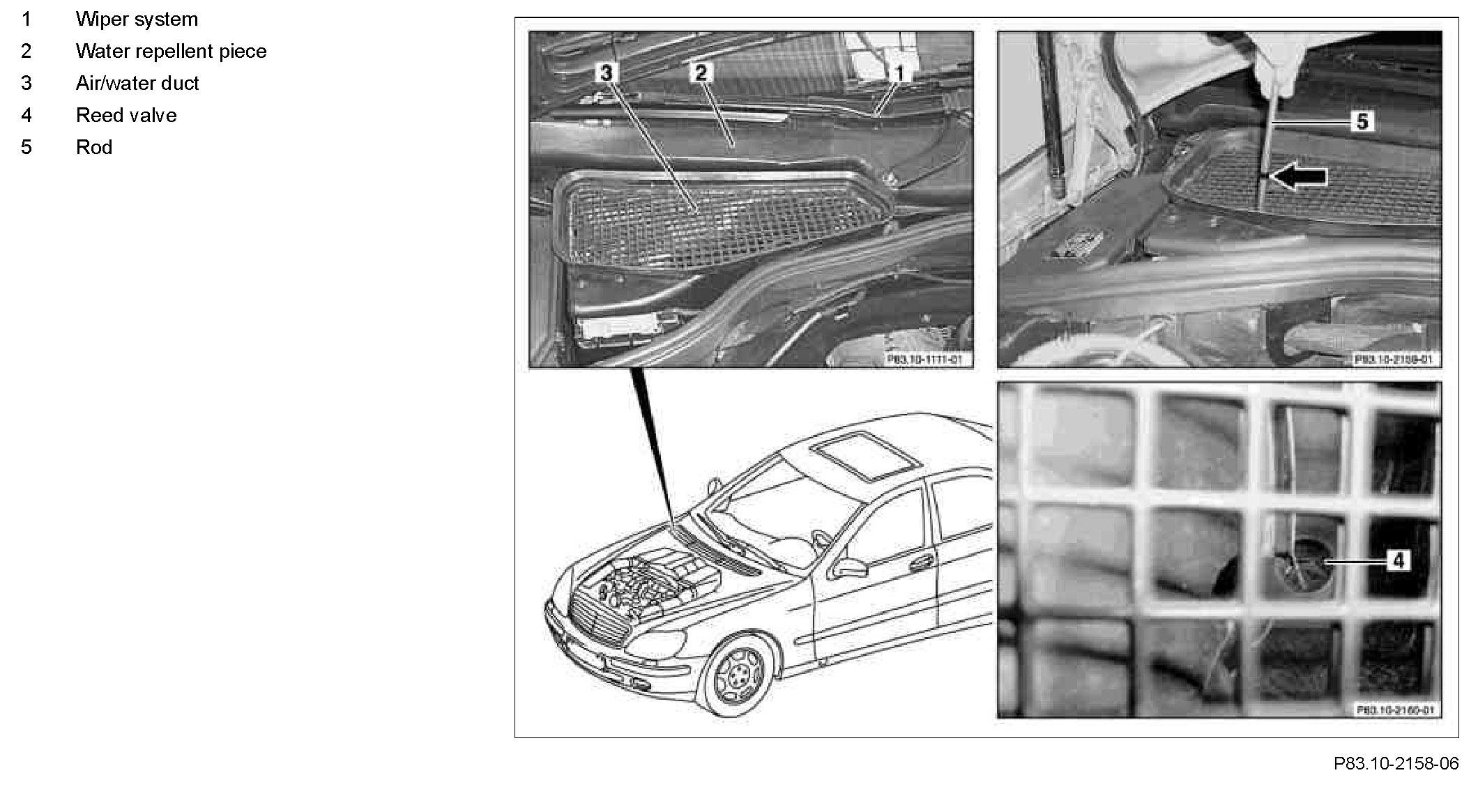

Component Identification:

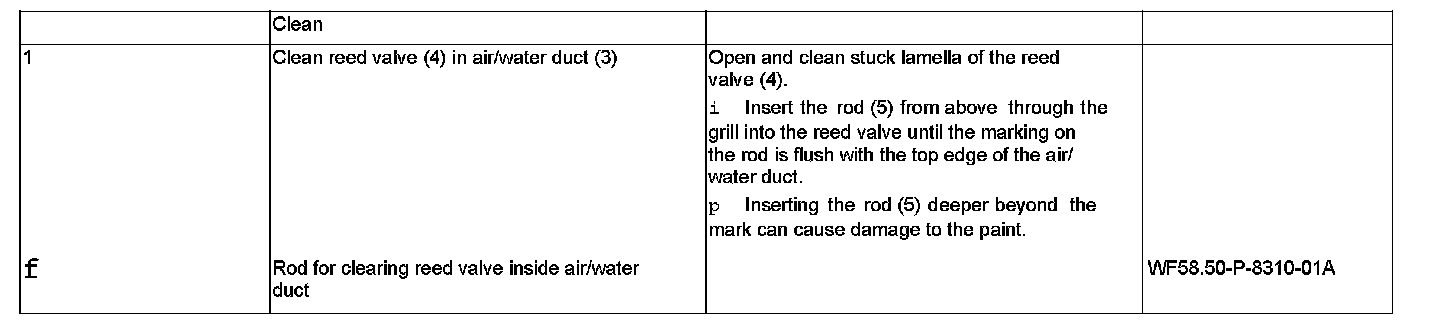

Step 1:
