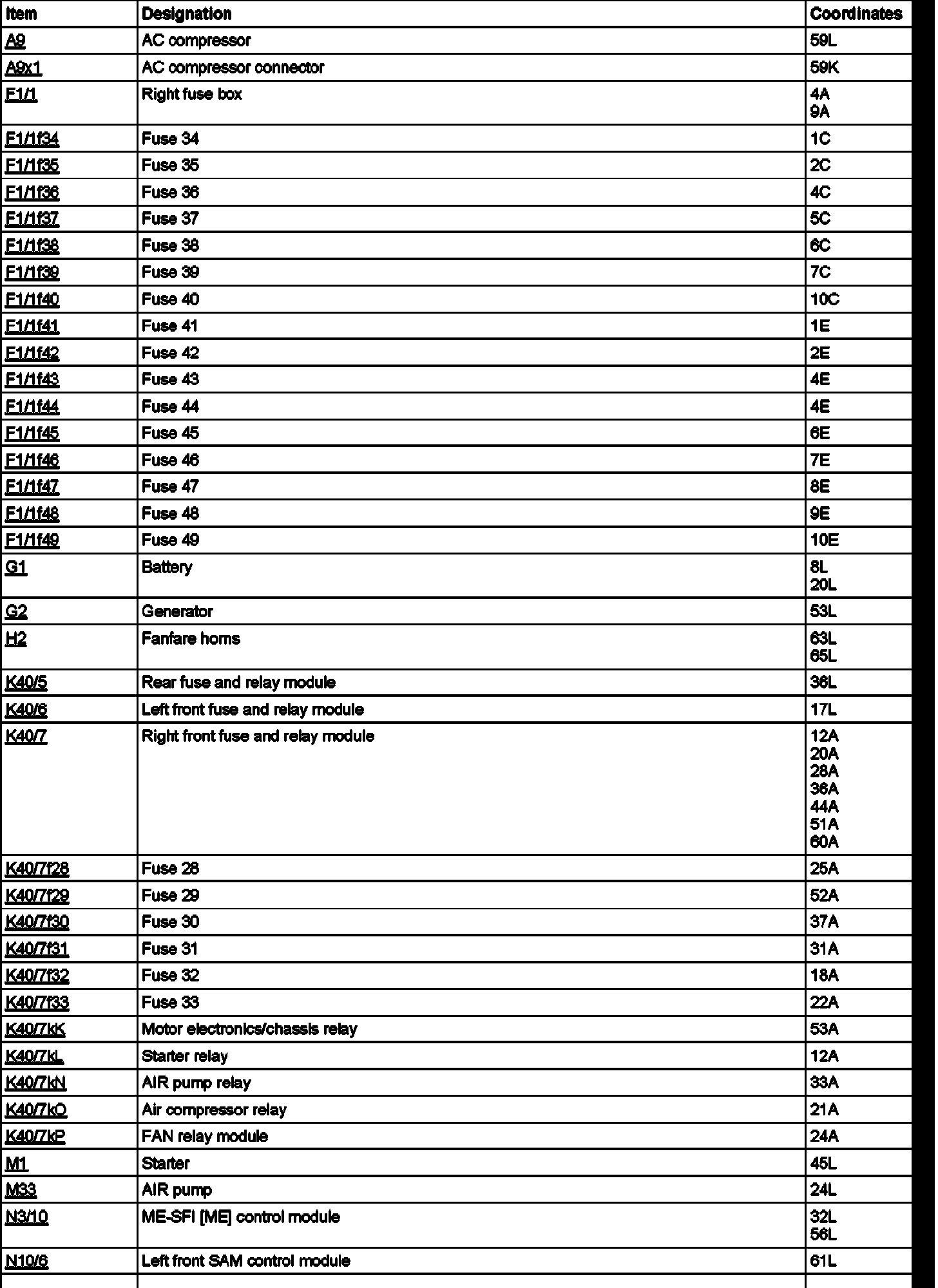

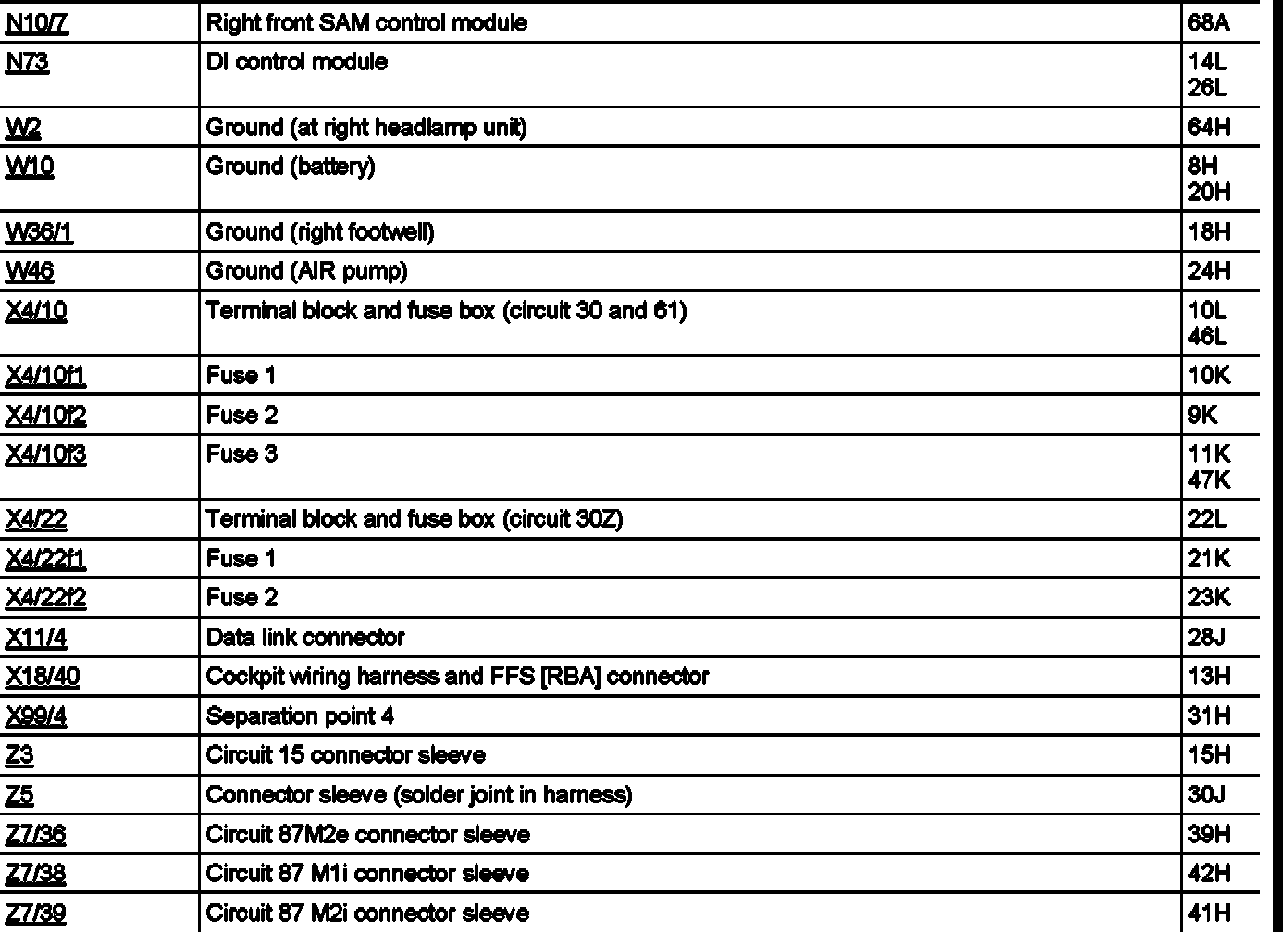

PE54.15-U-2102CB Fuse and Relay Box, Right



PE54.15-U-2102CB Fuse and Relay Box, Right
Model 215 up to 05/31/01 with Engine 137

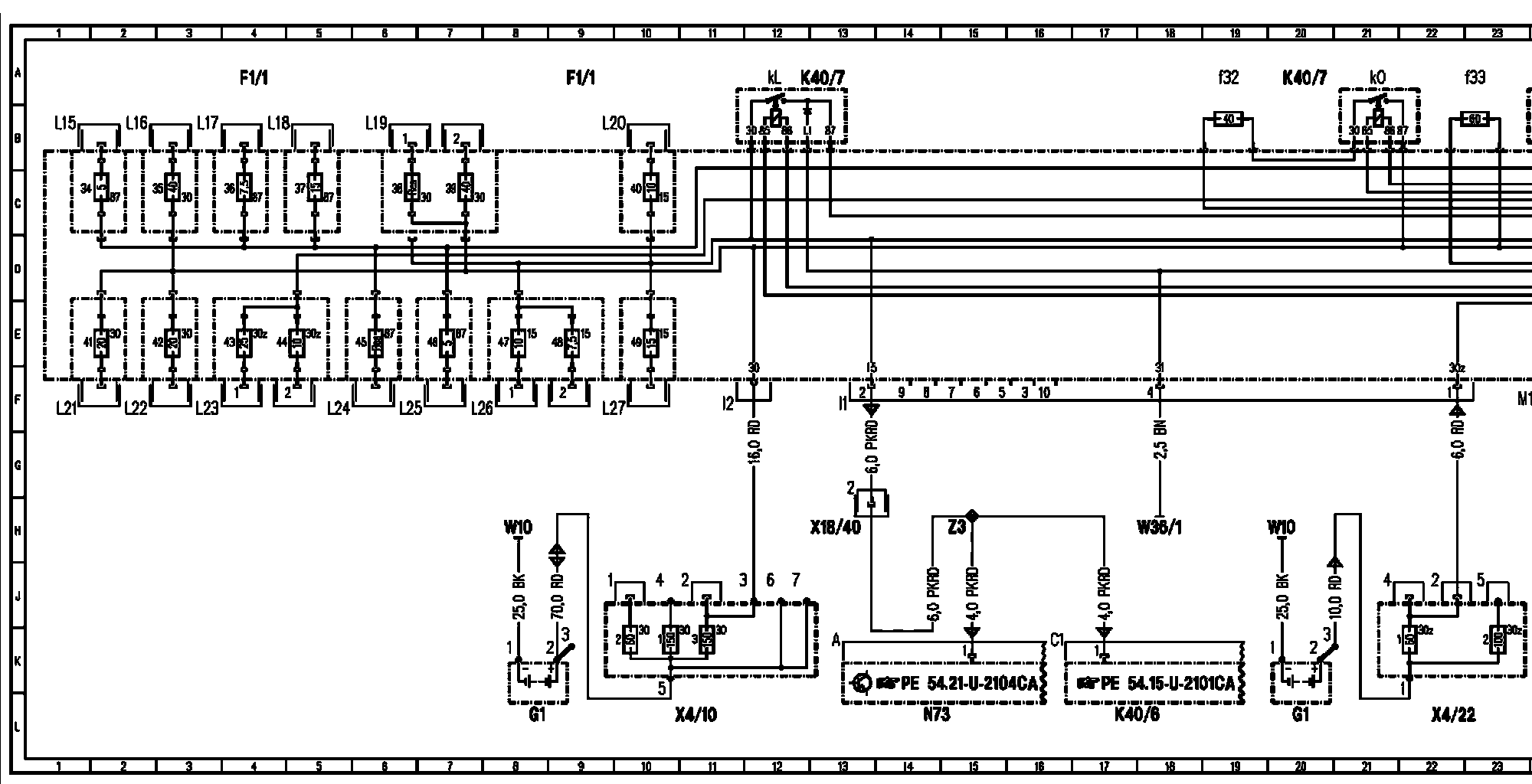

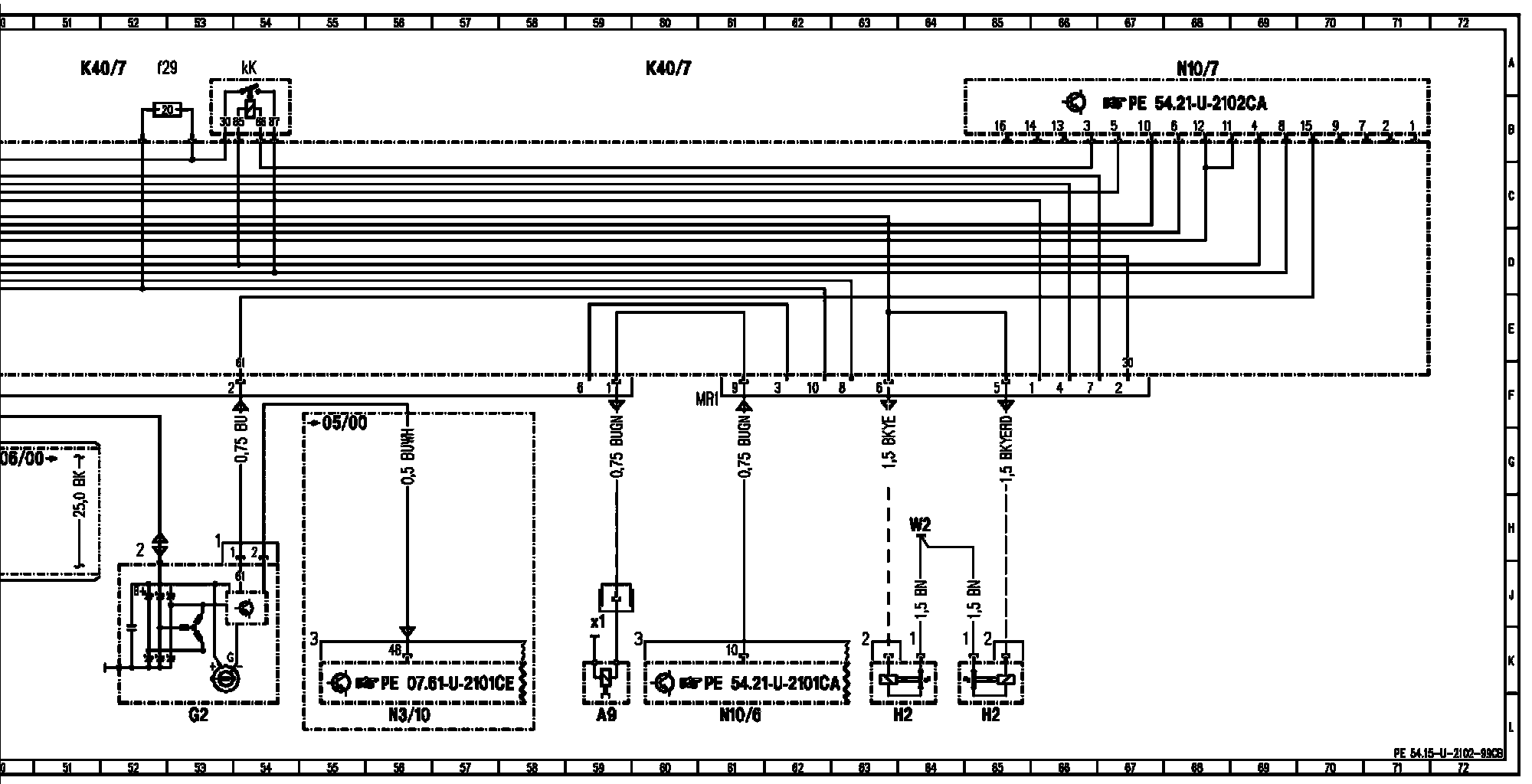

Supply of fuses in right fuse box
