ME-SFI Fuel Injection/Ignition System PE07.61-U-2000ME (As of 12/1/00)




ME-SFI Fuel Injection & Ignition System, From Dec 1, 2000
- Engine Compartment/Frame Floor Harness



�� !�b !(� !ME-SFI Fuel Injection And Ignition System:

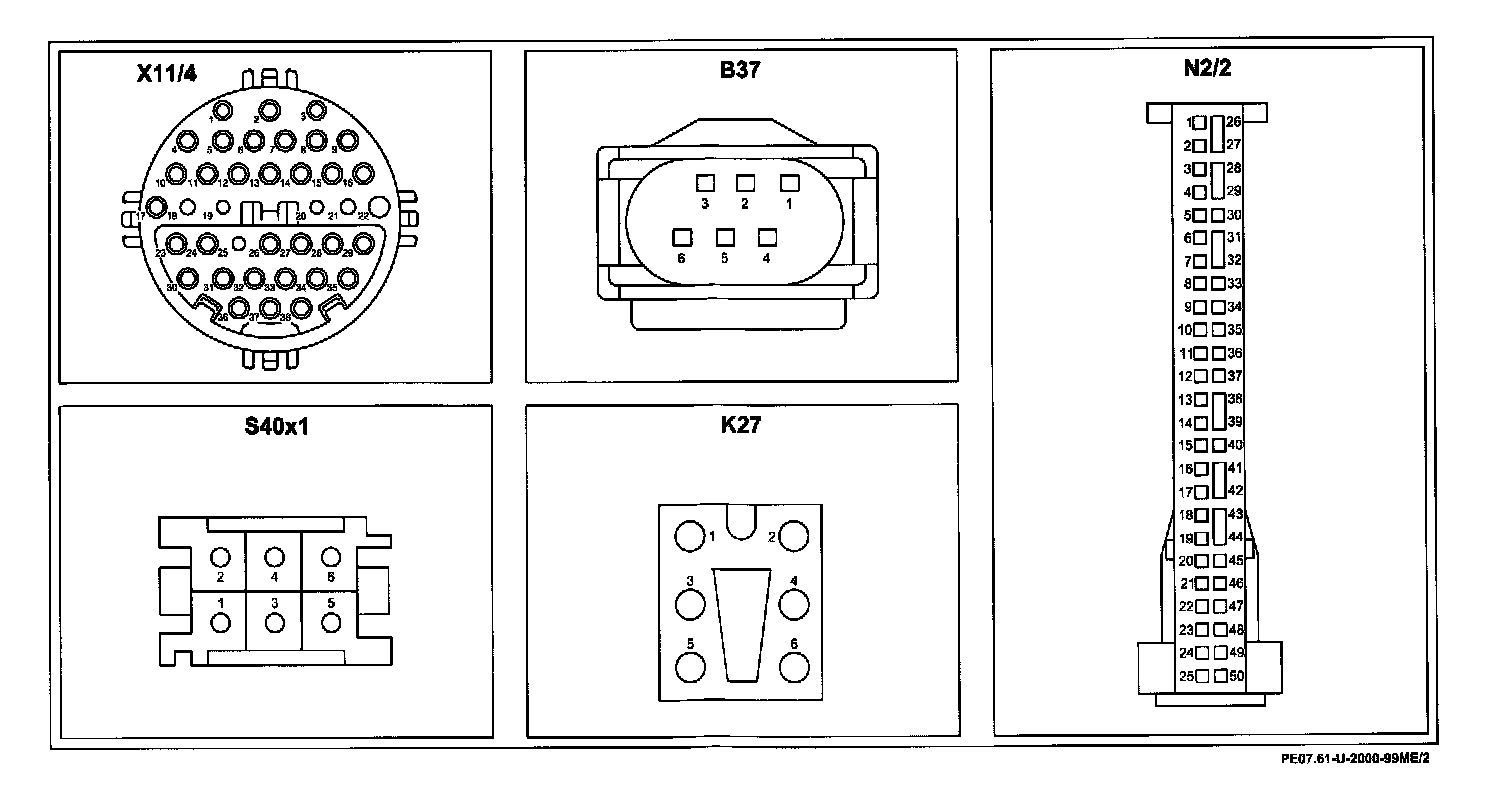

Connector Assignment:

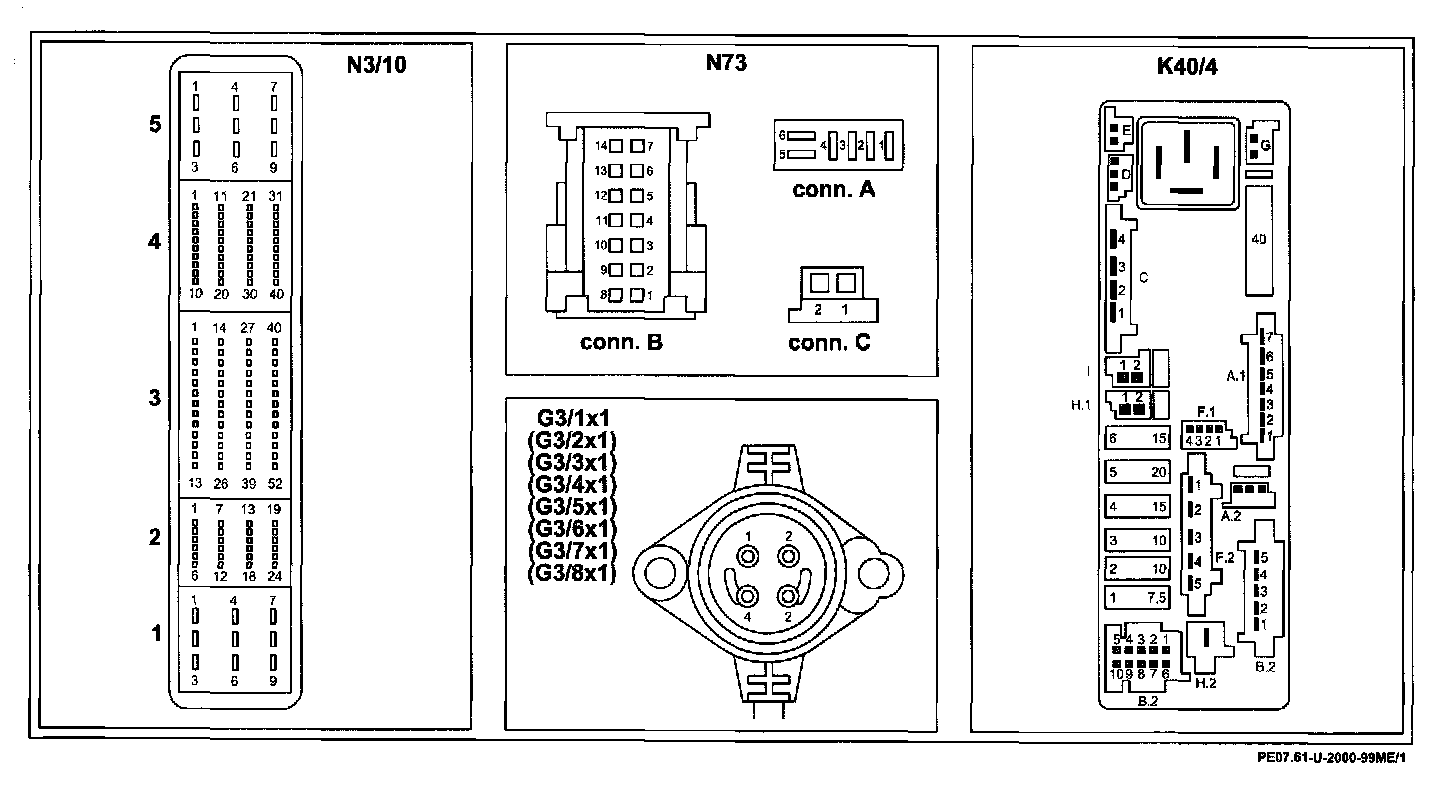

Connector Assignment:

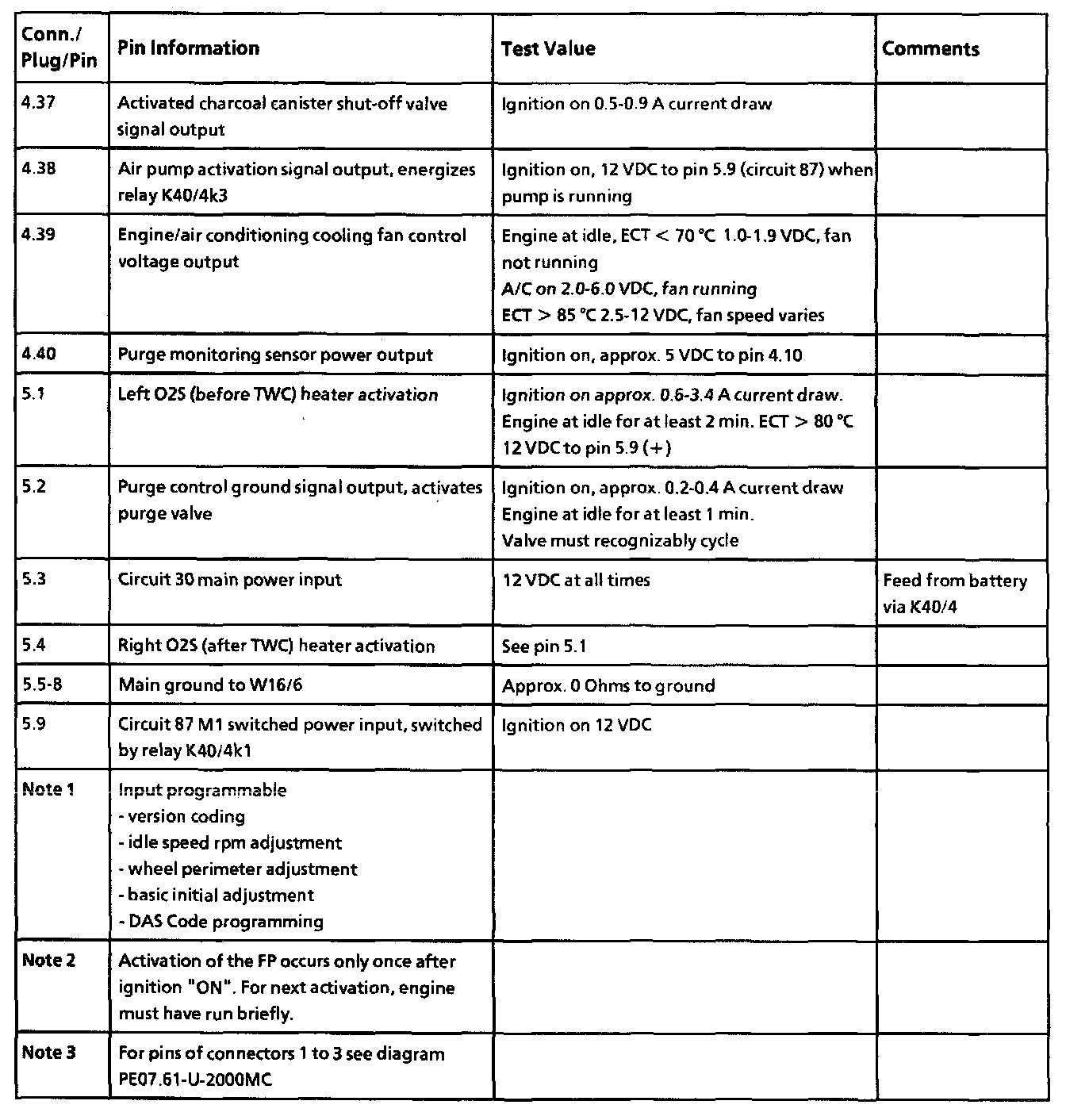

Pin Information, Part 1:






Pin Information, Part 2:
