Emergency Call System (ECS) PE82.95-U-2100MB (Up to 11/30/00)

Emergency Call System (ECS) PE82.95-U-2100MB (Up to 11/30/00)
- with CODE (348a) Emergency call system EMERGENCY CALL

l��>�N�>�|�>(CLUS) Display Instruments - Warning Devices PE54.30-U-2000MJ:

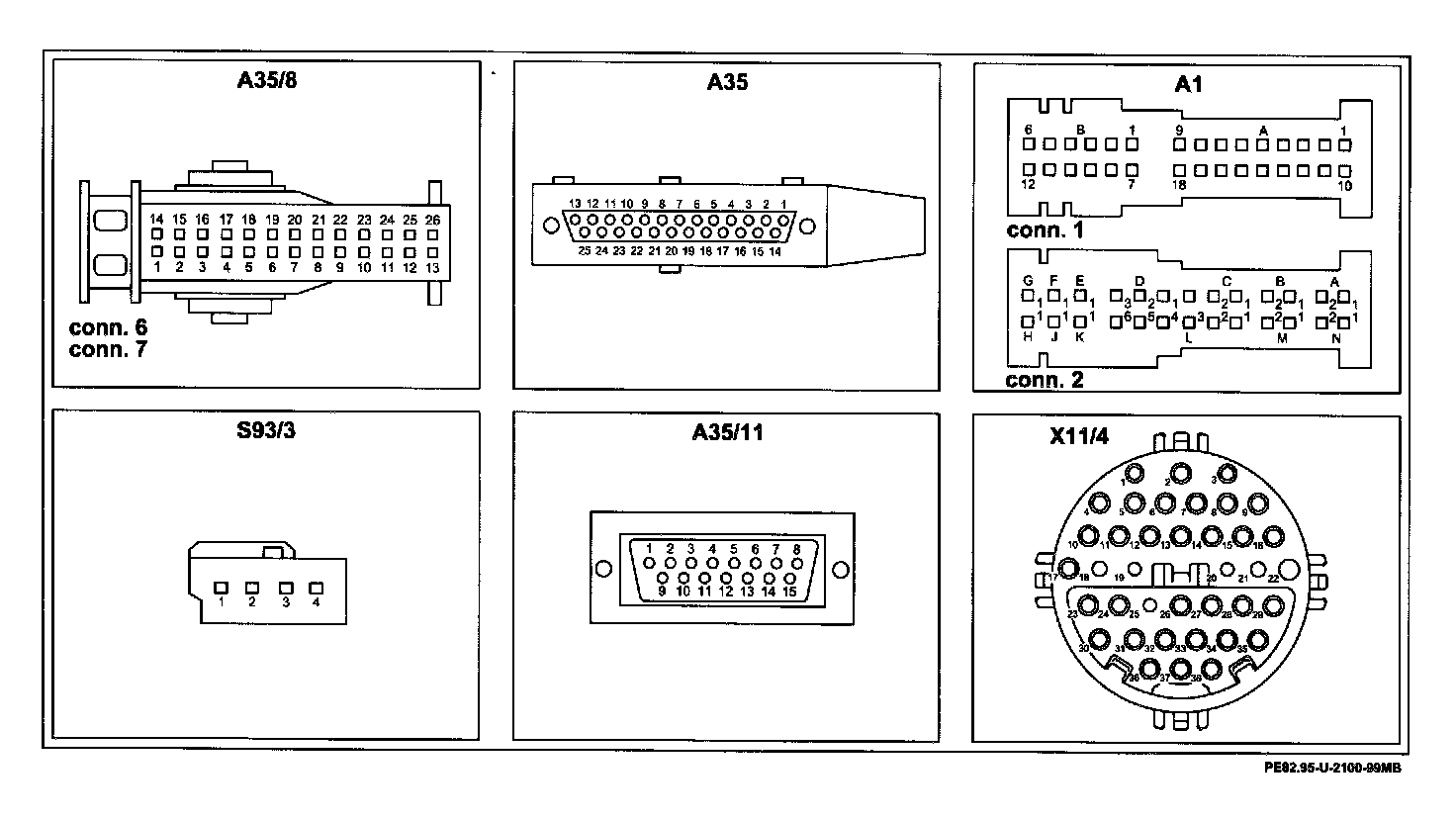

Connector Assignment:

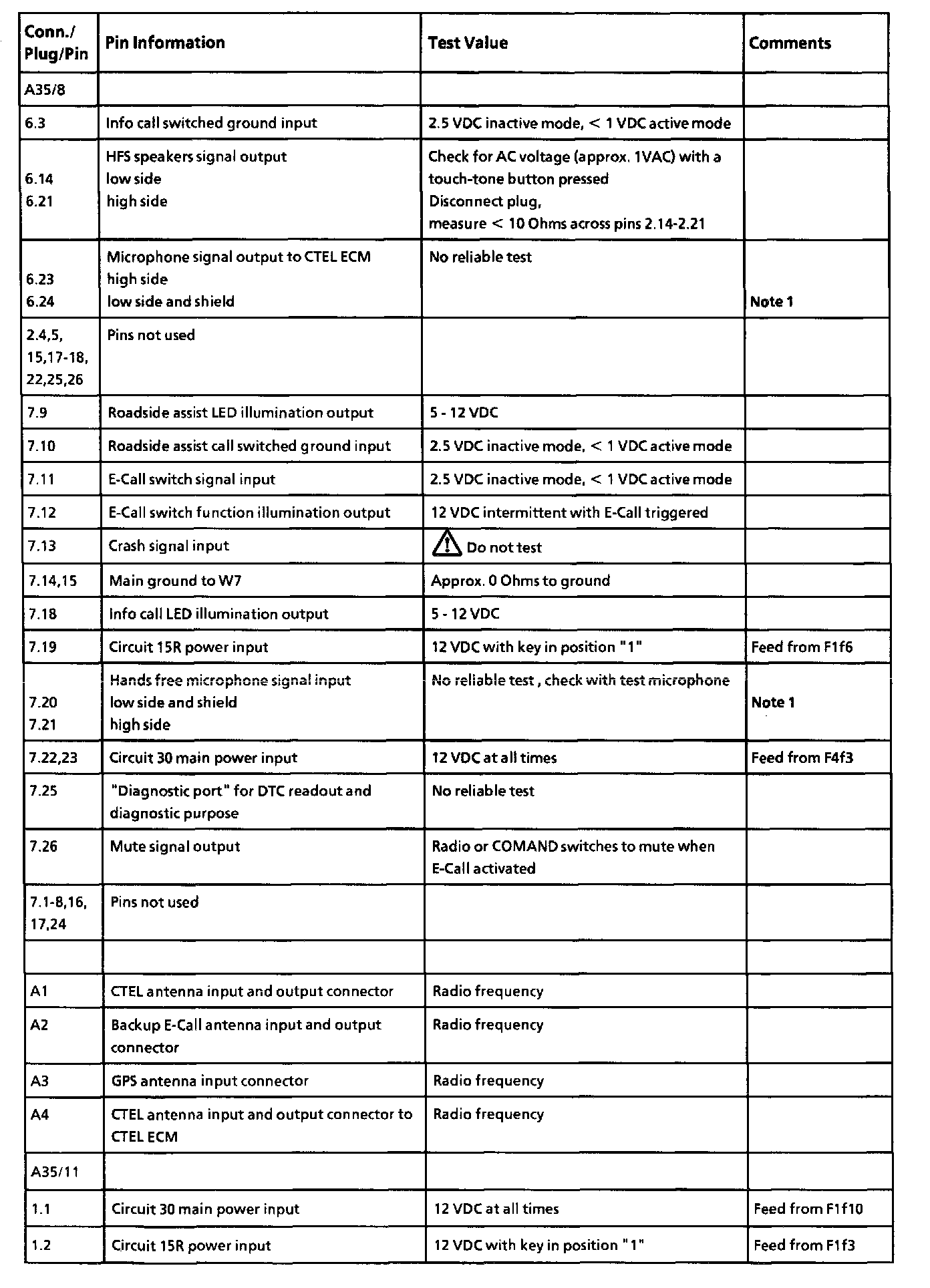

Pin Information, Part 1:

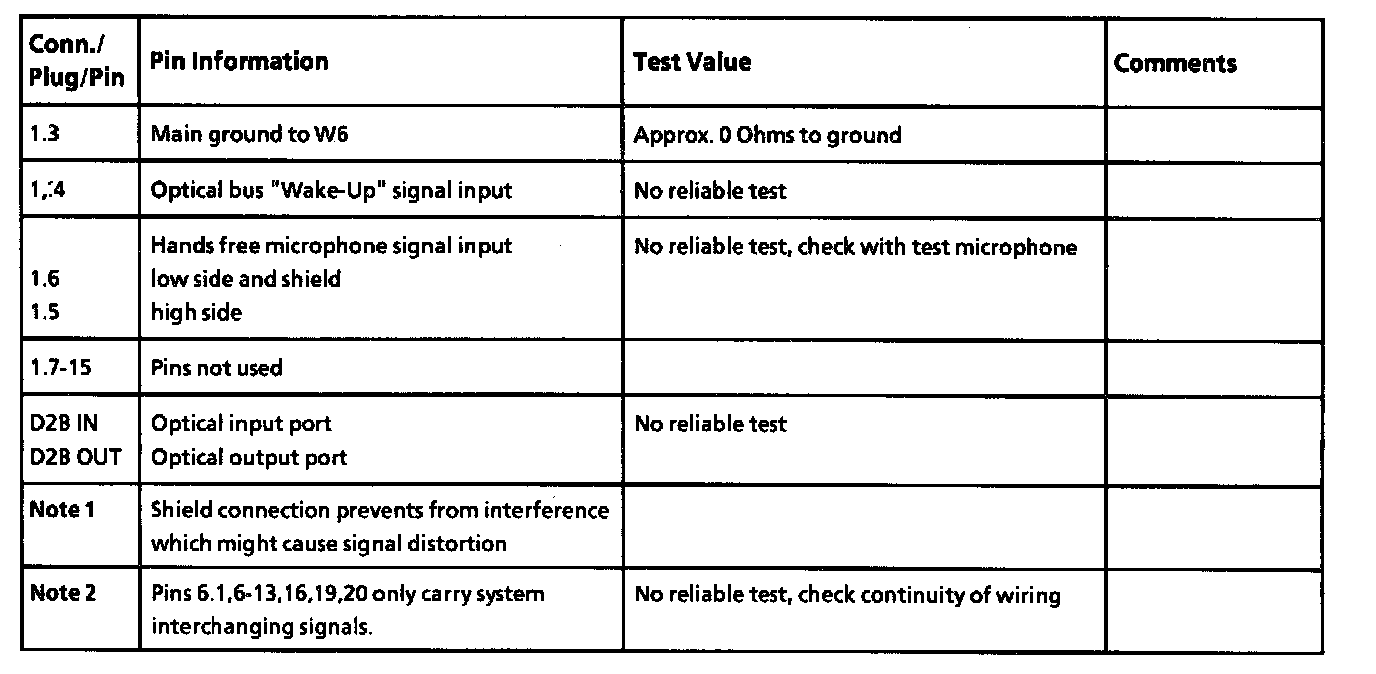

Pin Information, Part 2:
