Emergency Call System (ECS) PE82.95-U-2100MD (As of 12/1/00)




Emergency Call System (ECS) PE82.95-U-2100MD (as of 12/1/00)
- with CODE (347) TELE AID emergency call system (D2B)

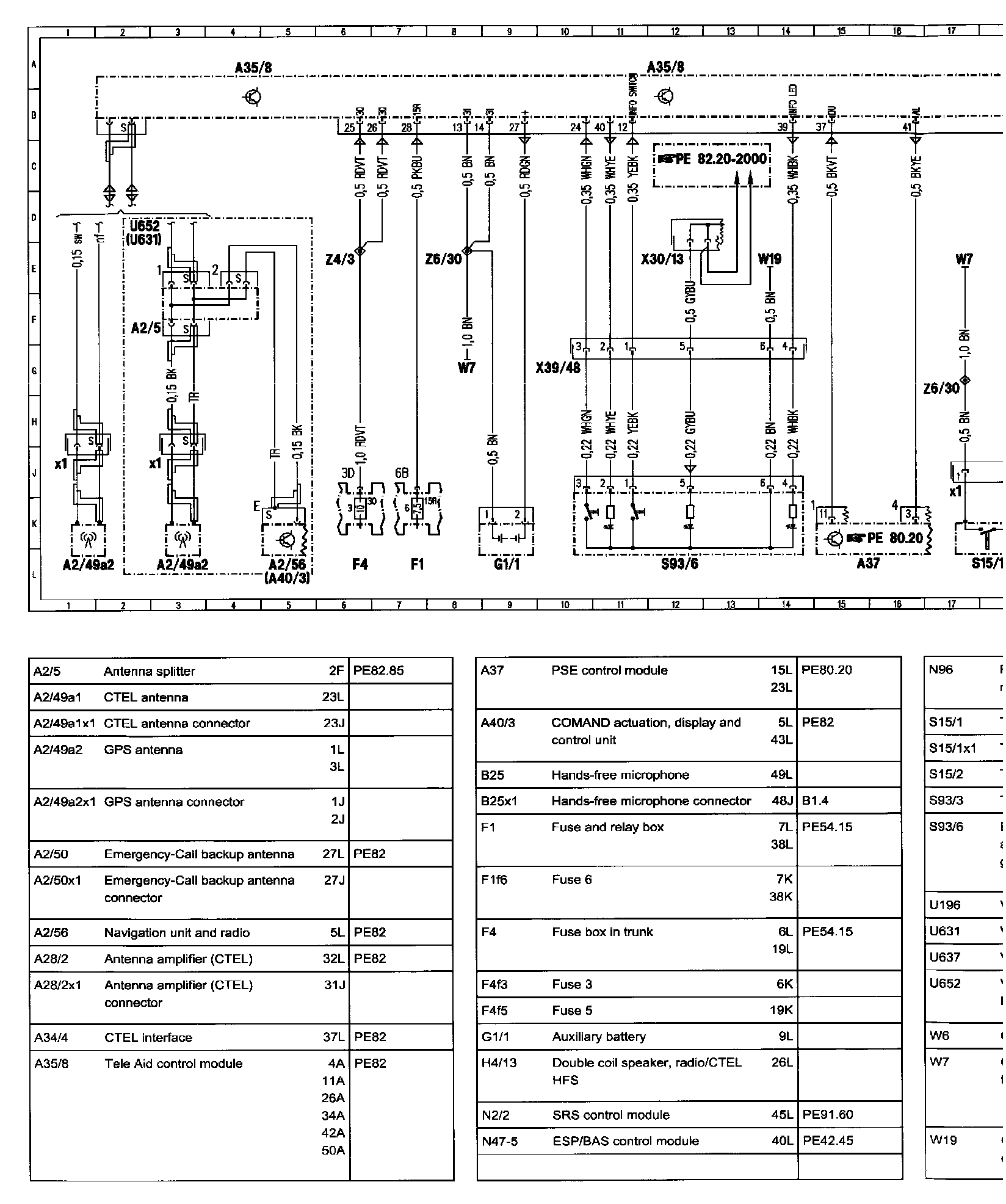

e��>���>*�>Emergency Call System, PE82.95-U-2100MD:

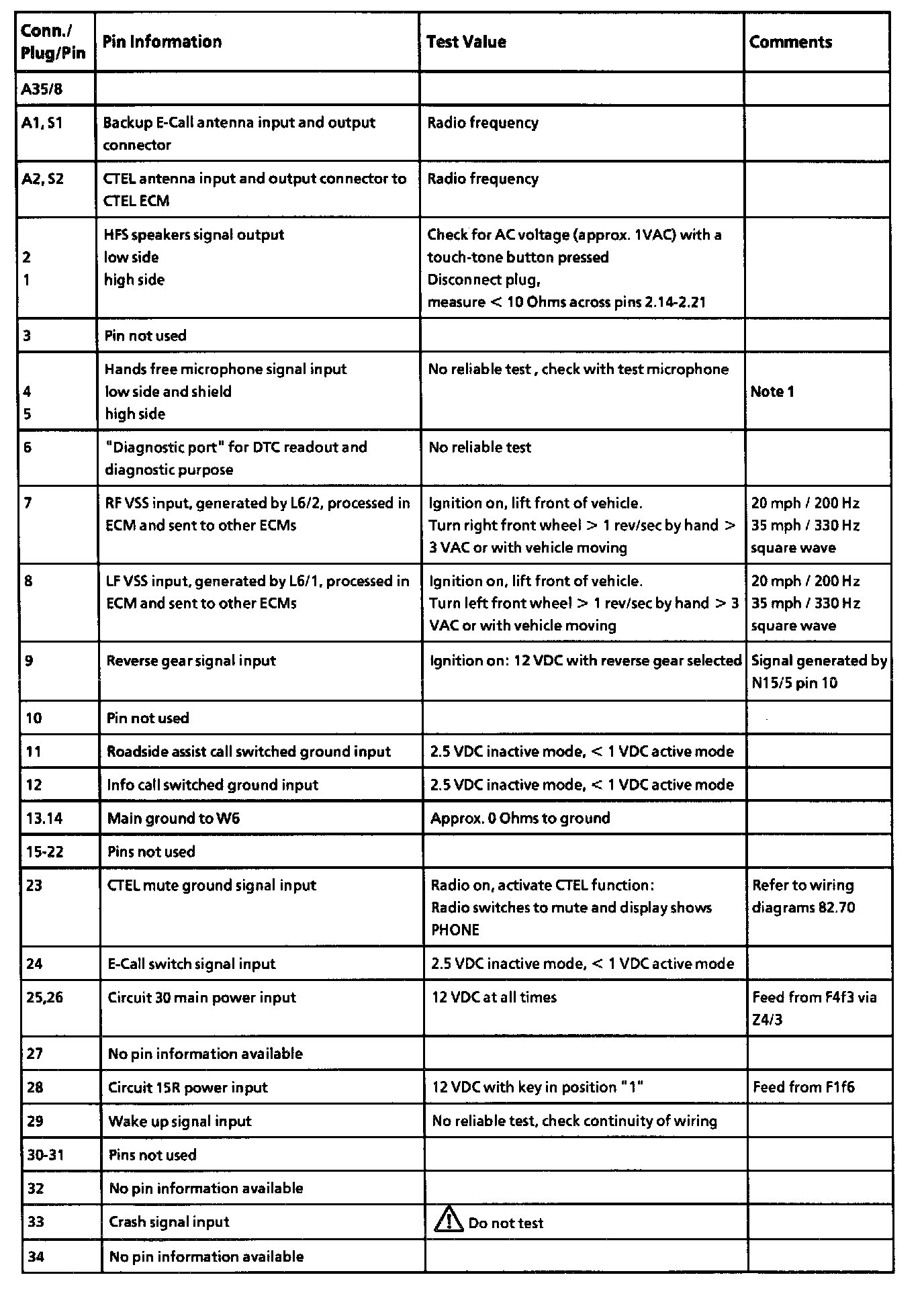

Pin Information, Part 1:






Pin Information, Part 2:
