AR63.20-P-1150-08KA Preparing Console For Instrument Panel Carrier For Installation

AR63.20-P-1150-08KA Preparing Console For Instrument Panel Carrier For Installation

Commercially Available Tools:

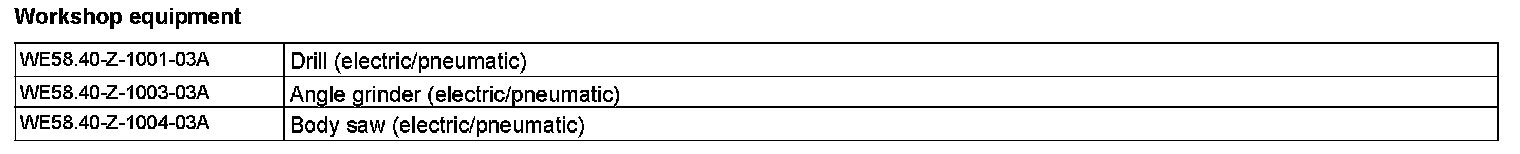

Workshop Equipment:

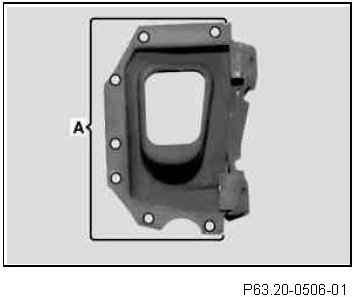

1. Drill 8 mm dia. holes in area A.

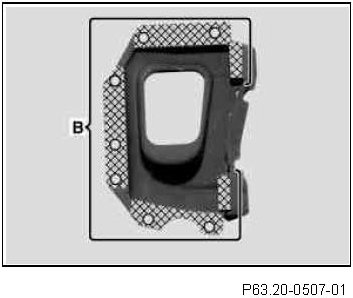

2. Deburr connection surfaces in area B.
3. Grind welding flange down to bare metal in shaded area.
4. Coat inside with zinc dust paint.
