Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2001
>>
CLK 55 AMG (208.374) V8-5.5L (113.984)
>>
Repair and Diagnosis
>>
Maintenance
>>
Drive Belt
>>
Testing and Inspection
>>
AP13.22-P-1352Z Check Visible Area Of Poly-V Belt For Wear
AP13.22-P-1352Z Check Visible Area Of Poly-V Belt For Wear
AP13.22-P-1352Z Check Visible Area Of Poly-V Belt For Wear

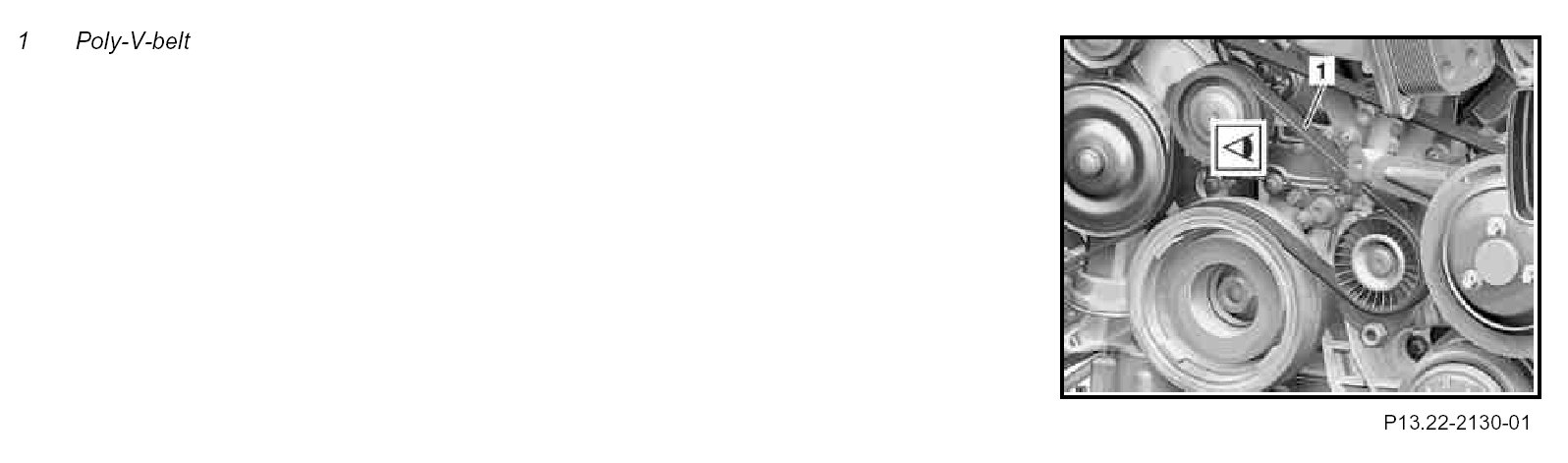

Component Identification:
Component Identification:

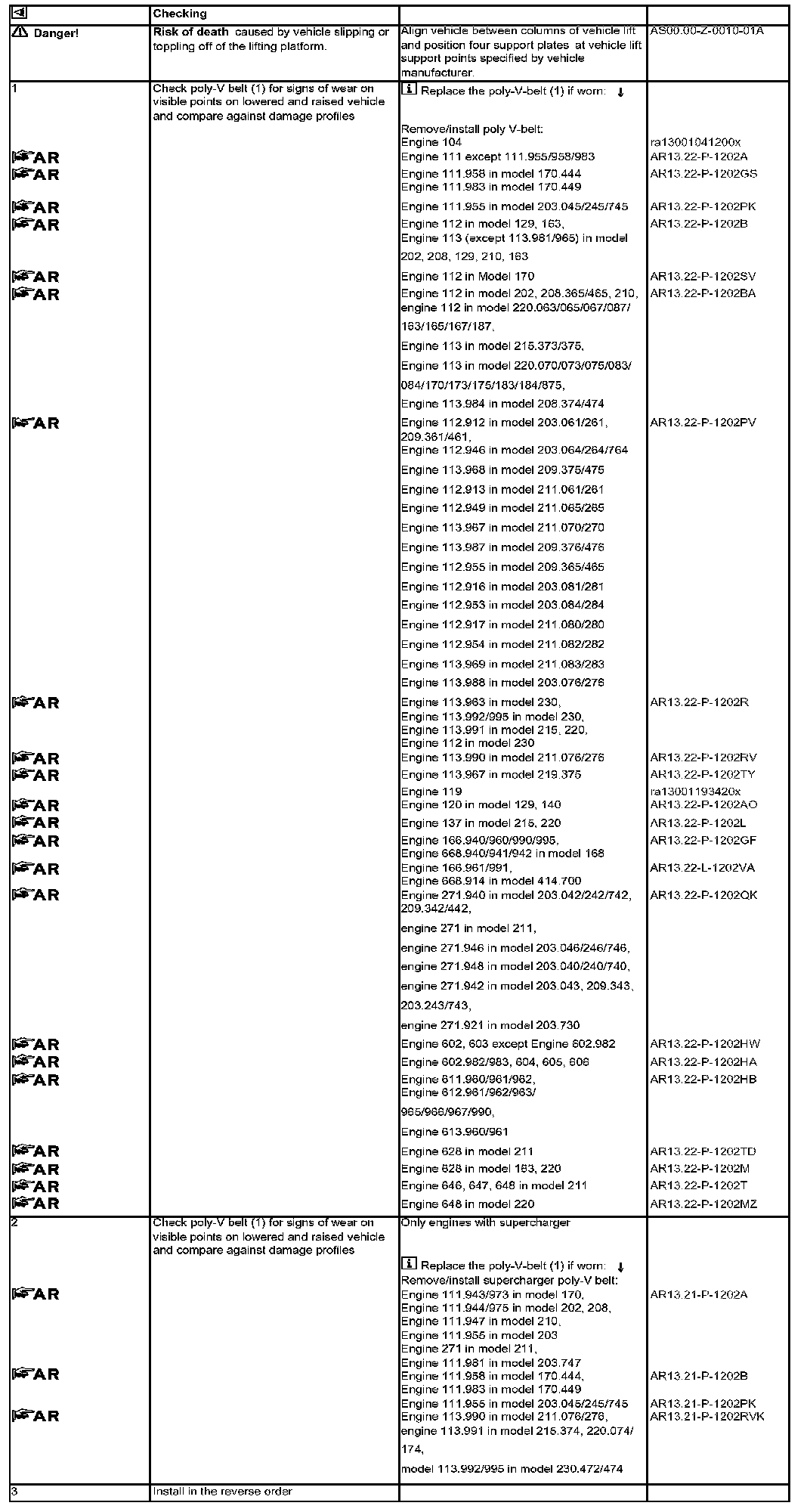

Steps 1 - 3:
