Timeport Portable Telephone Programming

Date: August 2000

Order No.: S-SI-82.70/136

Supersedes:

Group: 82

SUBJECT:
MODELS: 129,163, 170, 203, 208, 210, 215, 220
MODEL: YEAR 2001
TIMEPORT PORTABLE TELEPHONE PROGRAMMING

Following are programming instructions for the Timeport portable telephone.

Questions concerning telephone selection in accordance with client cellular carrier choice and/or telephone programming should be addressed with the Mercedes-Benz/Motorola Timeport Technical Hotline toll free at
1-877-668-8600.

The programming sequence differs between a TDMA phone and a CDMA phone.

TDMA PROGRAMMING

1. Obtain the following information from the cellular carrier before beginning the programming sequence:

^ Cellular telephone number:_ _ _-_ _ _ -_ _ _ _

^ Carrier system I.D.:_ _ _ _ _ (I.D. number will be 1 to 5 digits)

2. Obtain the telephone security code from the client. In a new phone, it is set to 000000.

^ Telephone security code:_ _ _ _ _ _ (Default is all zeros)

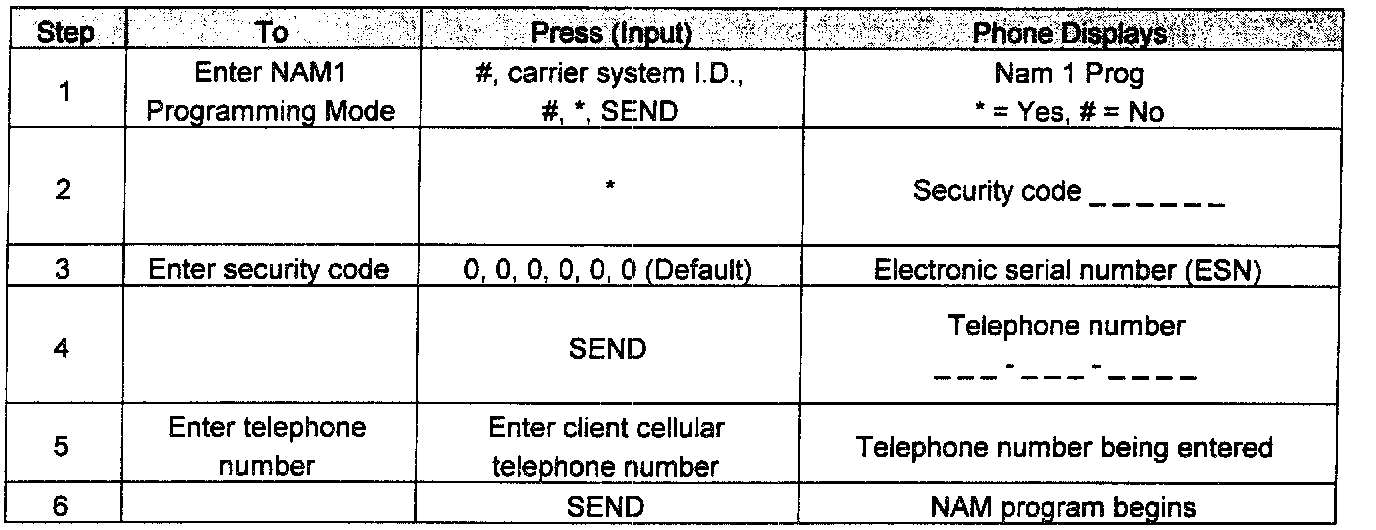

3. Program as shown.

Note:
The telephone will display Try Again if an entry error is made. Press CLR to erase the message/incorrect digits or press and hold CLR to clear all digits. Then enter the correct number and press SEND.

4. The telephone will turn off after the NAM Program Begins message displays. Upon being turned back on, the telephone will search for the network and be ready for use.

CDMA PROGRAMMING

1. Obtain the following information from the cellular carrier before beginning the programming sequence:

^ Cellular telephone number:_ _ _ -_ _ _ -_ _ _ _

^ Carrier analog system I.D.:_ _ _ _ _ (I.D. number will be 1 to 5 digits)

^ Carrier digital system I.D.:_ _ _ _ _ (I.D. number will be 1 to 5 digits)

Note:
Generally, the analog and digital system I.D. numbers will be the same. Questions regarding system I.D. numbers should be addressed with the cellular carrier.

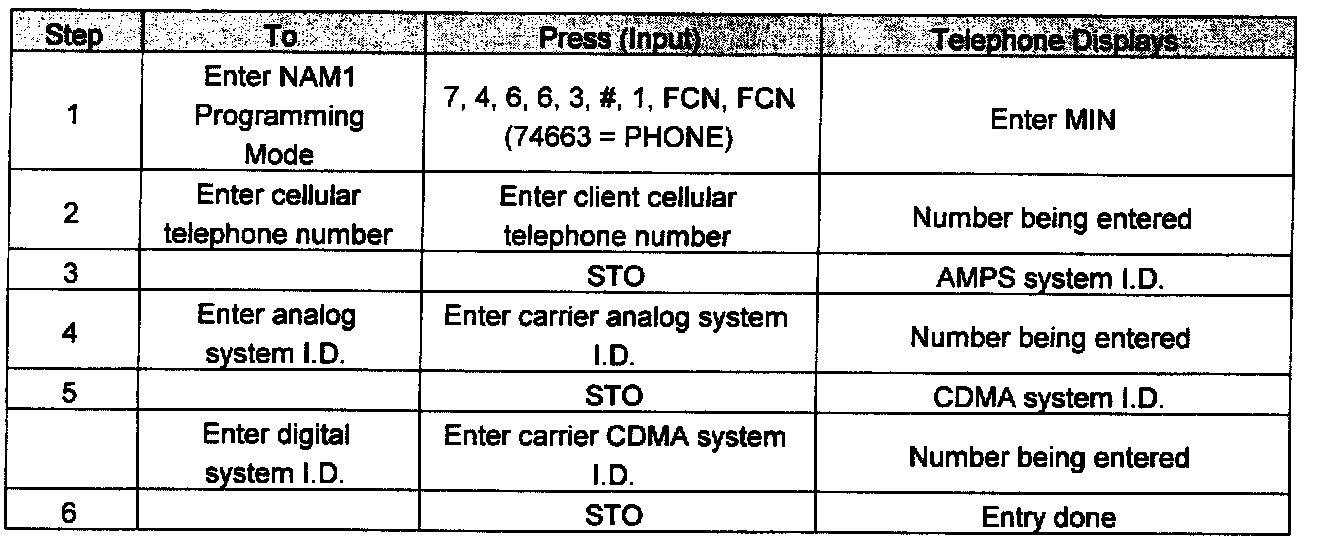

2. Program as shown.

Note:
The telephone will display Try Again if an entry error is made. Press CLR to erase the message/incorrect digits or press and hold CLR to clear all digits. Then enter the correct number and press STO.

3. After the Entry Done message appears, the telephone will display Searching as it attempts to contact a network. When the Searching message disappears, the telephone is ready for use.

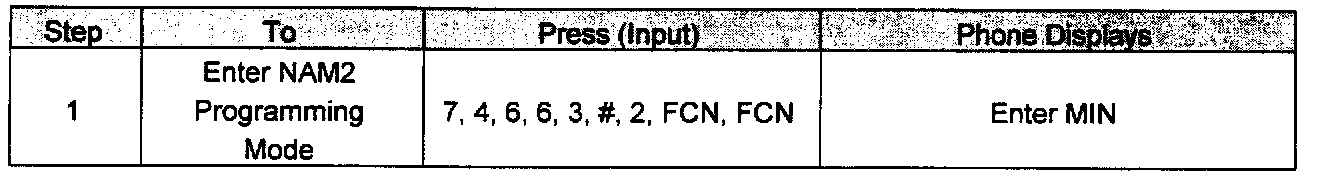

4. To program a second number, follow step 1 in the table and steps 26 in the above table.

Note:
Be sure to obtain the system I.D. for each before beginning the programming sequence if the second through fourth numbers are with different cellular carriers.

Note:
The CDMA telephone has a two telephone number maximum. Refer to the operation guide for instructions on how to switch between the various telephone numbers.
