License Plate Lamp: Service and Repair

Removing And Installing License Plate Lamps

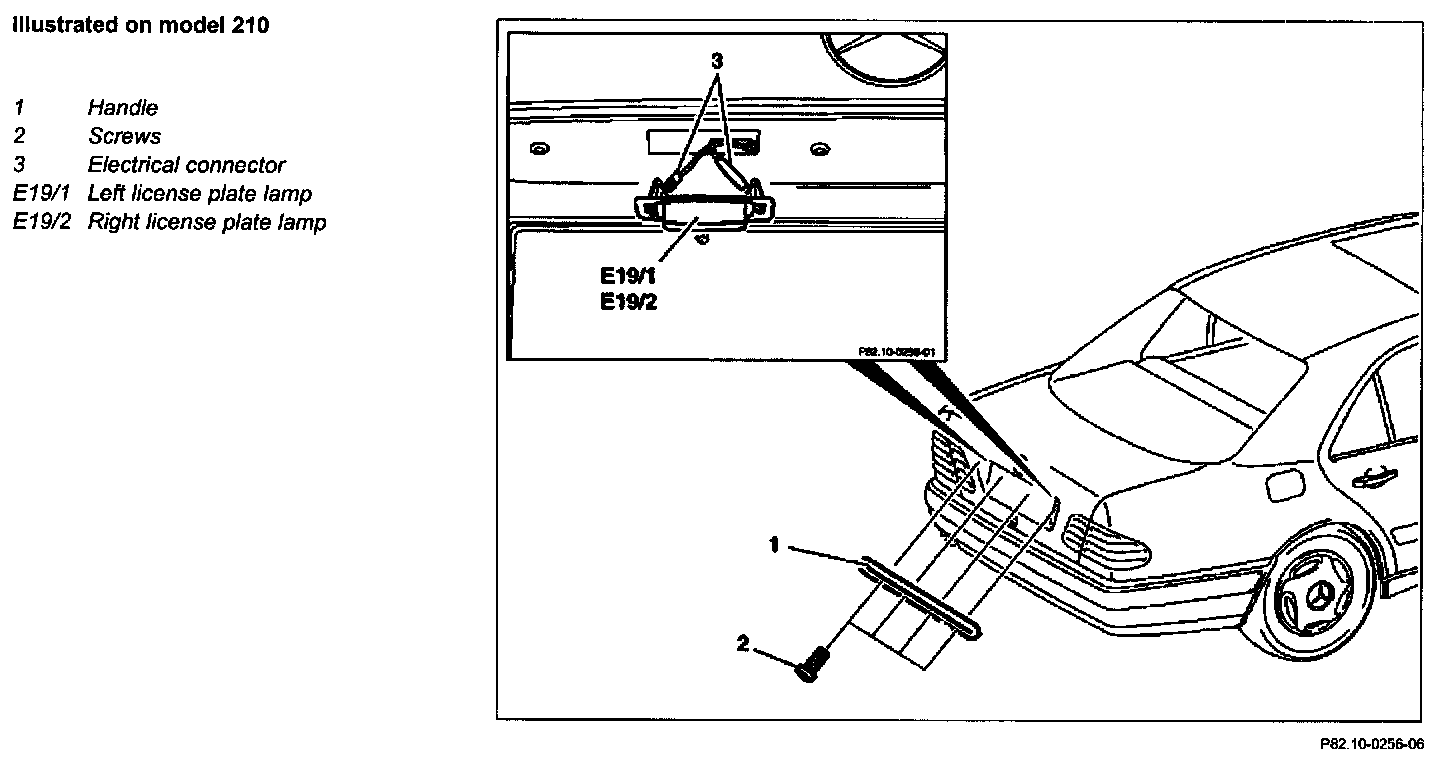

Illustrated On Model 210:

1 Unscrew screws (2) and remove handle (1) from trunk lid
2 Unclip license plate lamp (E19/1 or E19/2)

NOTE:
- To unclip insert a flat tool such as plastic wedge between the license plate lamp and trunk lid
- Installation: Ensure that gasket is in good condition and properly seated

3 Disconnect electrical connectors (3)
4 Reinstall in opposite order
