Mercedes Benz
>>
2001
>>
E 55 AMG (210.074) V8-5.5L (113.980)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Exterior Lights With Xenon Headlamps PE82.10-U-2000B
Exterior Lights With Xenon Headlamps PE82.10-U-2000B

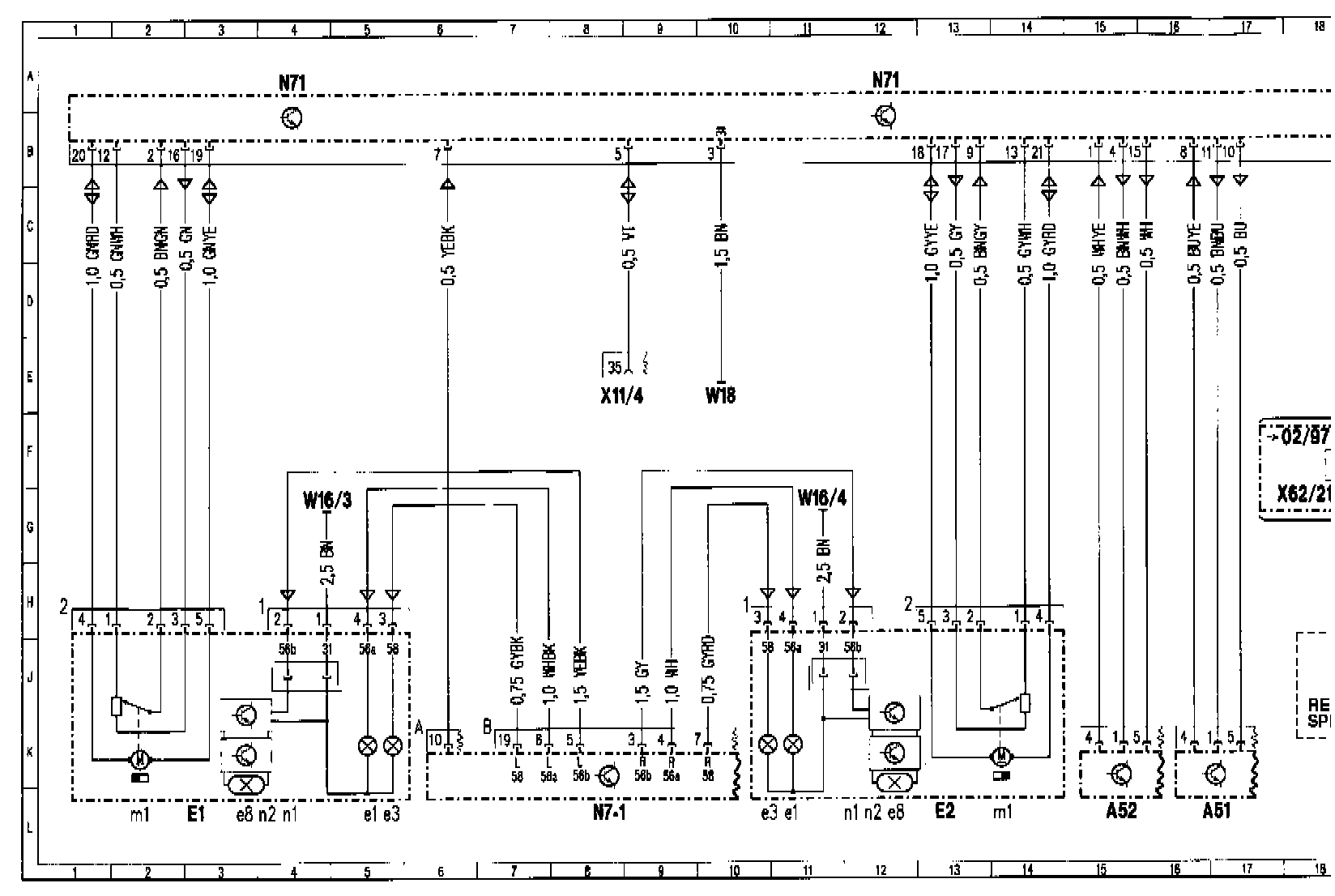

�0cWiring Diagram:

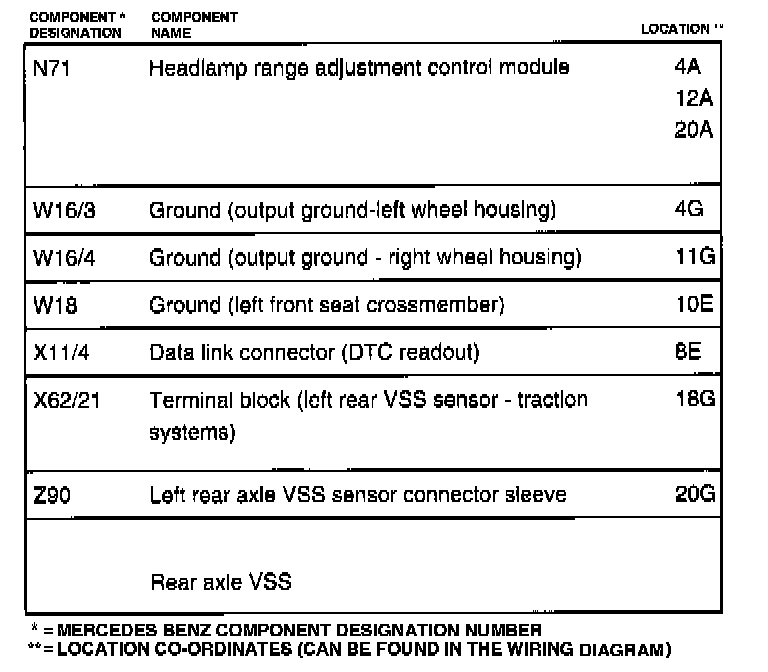

Component Grid Location
A51 - N7-1:
N71 - Z90:
