AR54.30-P-6015EA Remove/Install Instrument Cluster

Removing and installing instrument cluster







1 Disconnect ground cable of battery

CAUTION: On model 210, insulate the cable terminal of the ground lead to prevent unintentional contact between the disconnected ground lead and ground point W10


2.1 Remove steering wheel


CAUTION: Caution when handling the airbag unit.
- Improper handling may result in damage to the airbag unit
- Vehicles without adjustable steering wheel

2.2 Pull steering wheel completely out Vehicles with adjustable steering wheel

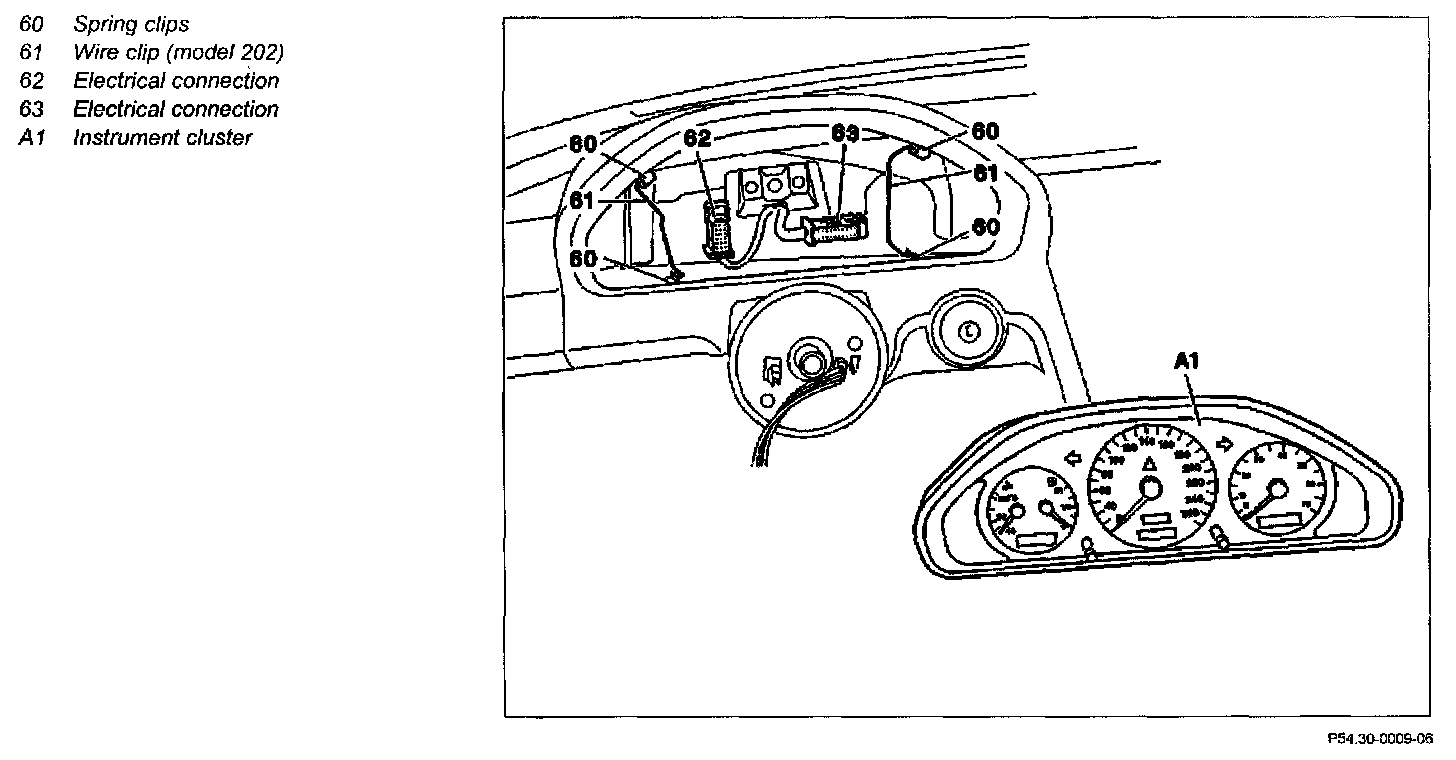

3 Pull out instrument cluster

See "Special Tools" given below.

CAUTION: Do not damage the dashboard

NOTE: Installation: Press in instrument cluster evenly

4 Unlock and remove electrical connections (62, 63)
5 Install in the reverse order


Special Tools

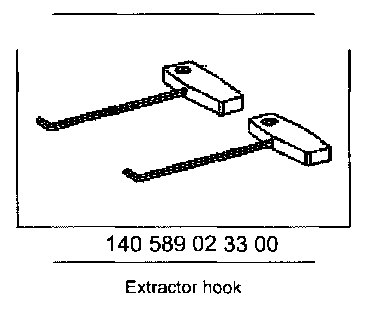

Extractor Hook , P/N # 140 589 02 33 00:
