B1.1 Engine Compartment (Left)
B1.1 Engine Compartment (Left)

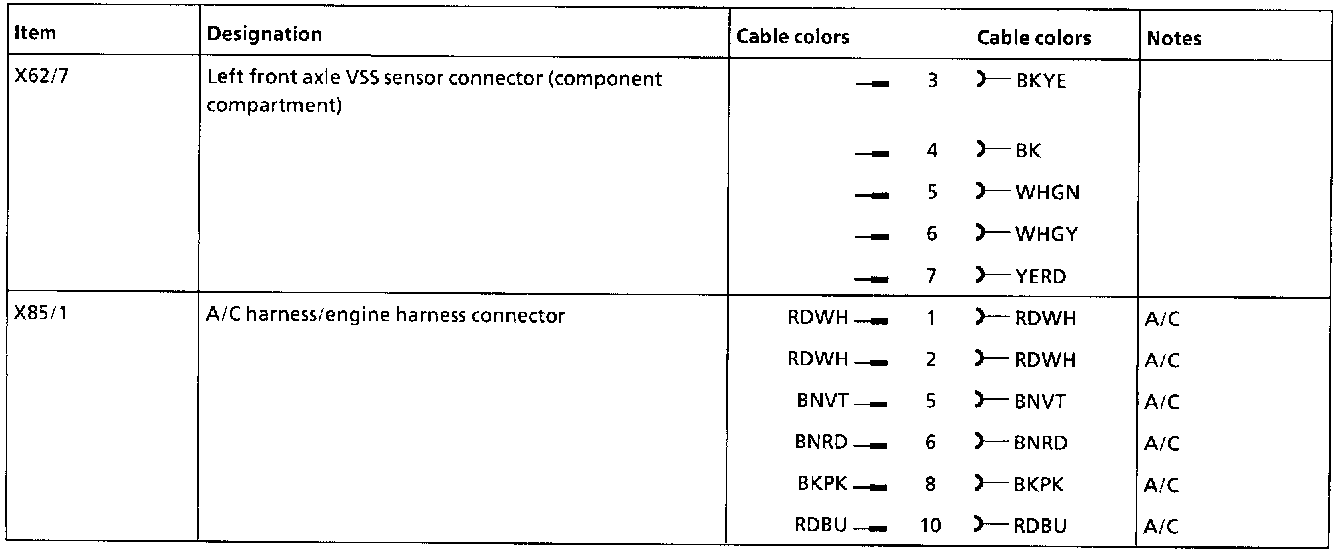

Arrangement and assignment of the wiring and plug connectors engine compartment (left)
Connector ID
