B2.1 Engine Compartments (Left)
B2.1 Engine Compartments (Left)

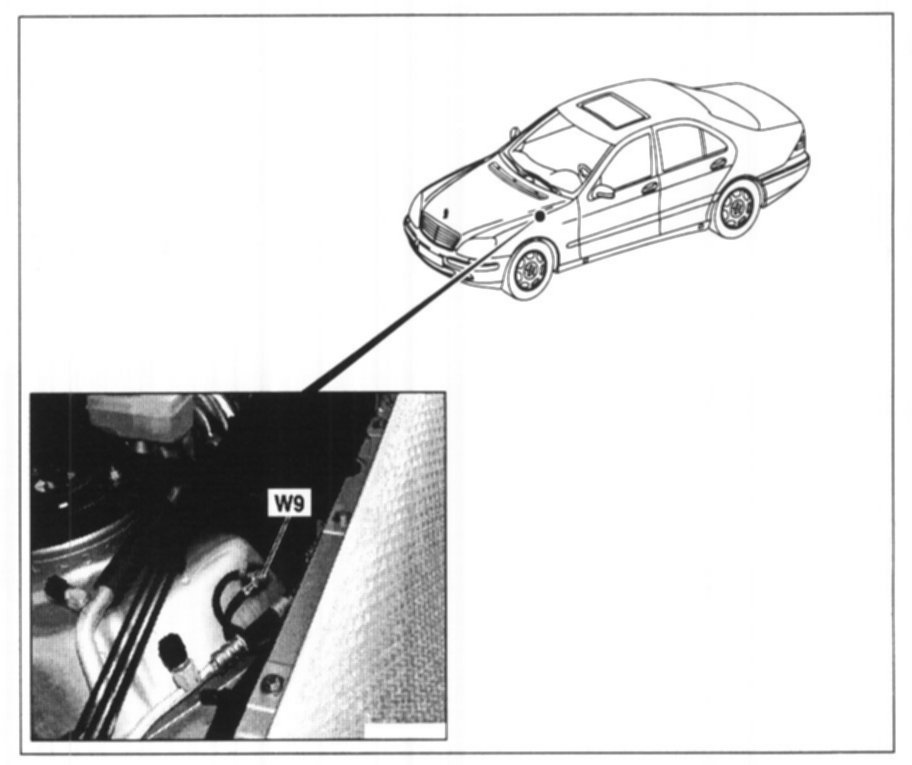

Arrangement and assignment of ground terminals, engine compartment (left)

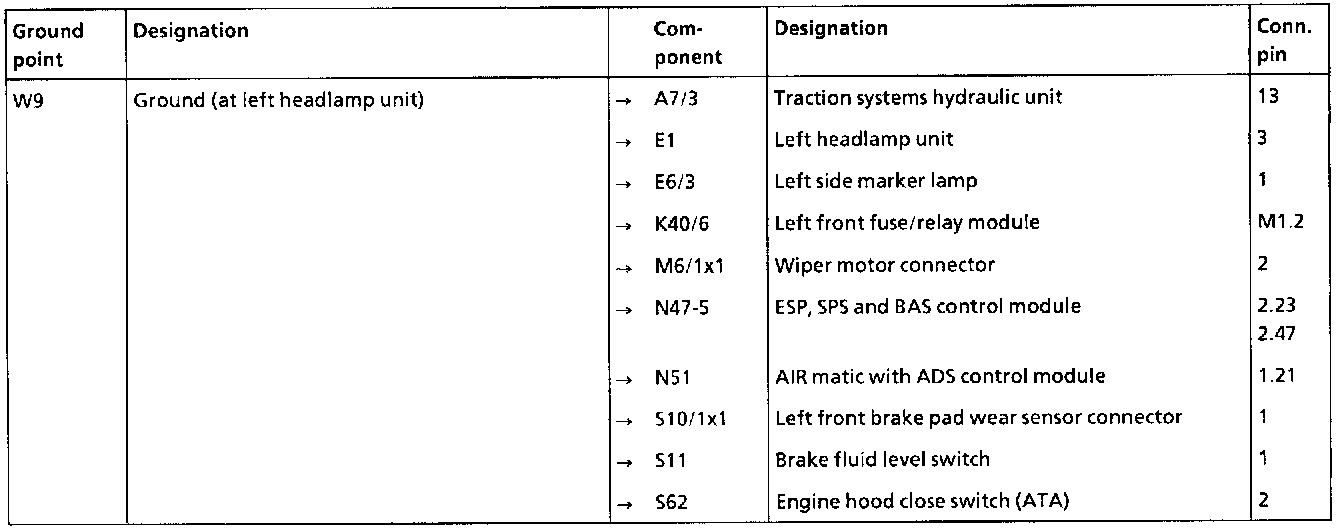

Connector ID
