Refrigerant Control Solenoid Valve: Service and Repair

AR83.50-P-9000M Remove/Install Rear Air Conditioning Refrigerant Shutoff Valve
- with CODE (582) Rear air conditioning







DANGER:
- Explosion hazard when performing welding or brazing work on closed air conditioning. Poisoning hazard from inhaling overheated refrigerant vapors. Injury hazard from skin and eye contact with liquid refrigerant.
- Do not perform any type of welding work on closed air conditioning system or in its vicinity. Smoking and open flame prohibited.
- Wear protective goggles and protective gloves, work only in well-ventilated rooms. Perform repair work on air conditioning circuit only with system emptied.

CAUTION: Protect air conditioning circuit and components from moisture during repair work.

1 Empty air conditioning (recycle), evacuate, charge, check for leaks

CAUTION: Add quantity of compressor oil removed to refrigerant circuit when charging air conditioning (new oil).

2 Remove left front wheel
3 Remove left front inner fender

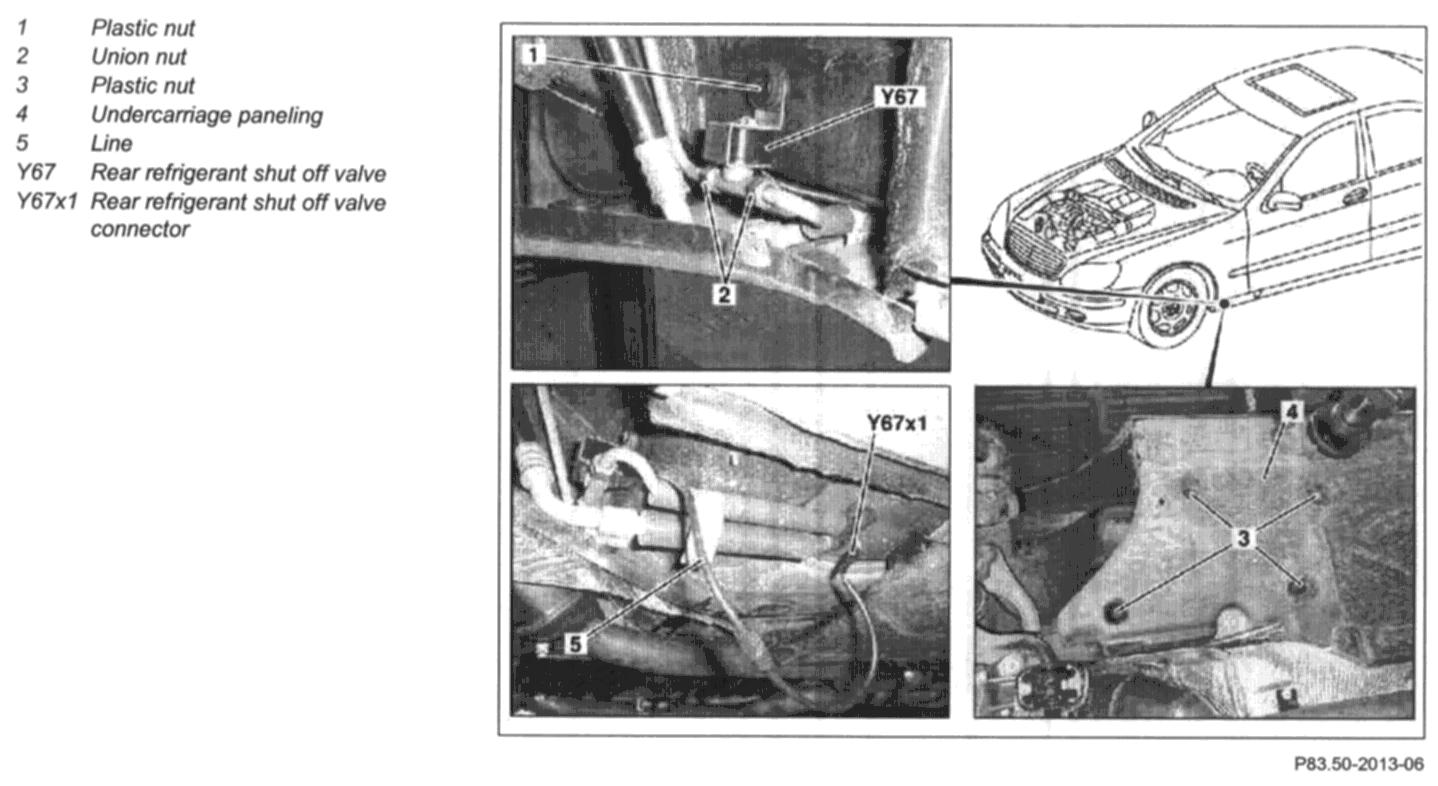

4 Unscrew plastic nut (1)
5 Unscrew 2 union nuts (2)

CAUTION: Close openings (parts kit).

NOTE: Installation:
1. Renew O-rings
2. Moisten thread with compressor oil.

- Union nut for rear air conditioning shutoff valve: 17 N.m

6 Unscrew 4 plastic nuts (3)
7 Remove undercarriage paneling (4)
8 Carefully pull line (5) out of grommet and disconnect rear refrigerant shutoff valve connector (Y67x1)
9 Remove rear refrigerant shutoff valve (Y67)
10 Replace receiver/drier
11 Install in opposite order.
