Instrument Cluster / Carrier: Application and ID

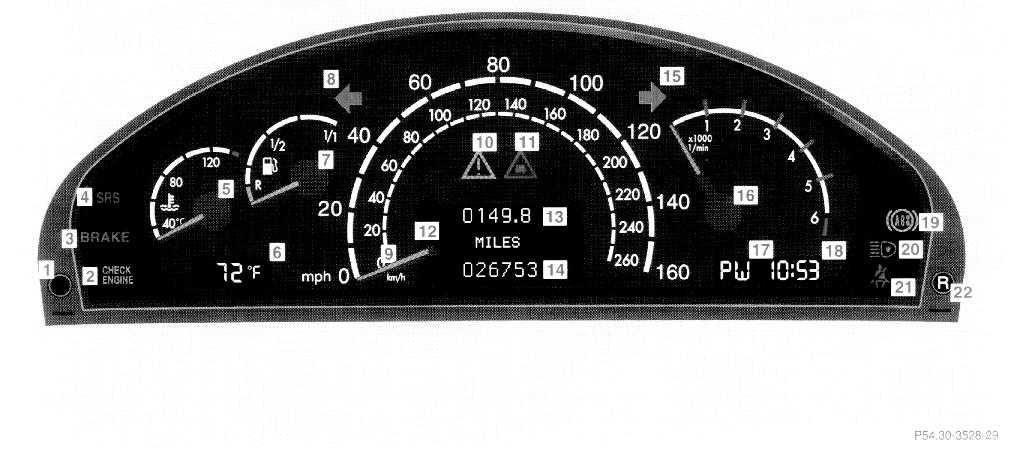

Instrument Panel:




1 Knob for instrument cluster illumination

2 Engine malfunction indicator lamp

3 Brake fluid low, parking brake engaged

4 Supplemental restraint system (SRS) malfunction indicator lamp

5 Coolant temperature gauge

6 Outside temperature indicator

7 Fuel gauge with reserve warning lamp

8 Left turn signal indicator lamp

9 Speedometer

10 Electronic stability program (ESP) warning lamp, system is adjusting to road conditions

11 Distance warning lamp vehicles with Distronic (DTR), distance to the vehicle ahead is insufficient

12 Multifunction display

Instrument cluster display

13 Trip odometer

14 Main odometer

15 Right turn signal indicator lamp

16 Tachometer

17 Gear range indicator display

18 Digital clock

19 Antilock brake system (ABS) malfunction indicator lamp

20 High beam headlamp indicator

21 Fasten seat belts

22 Reset button
