AR40.20-P-0200MB Perform Chassis Alignment



AR40.20-P-0200MB Perform chassis alignment
- with CODE (979) Special protection version
- with CODE (Z07) Top protection

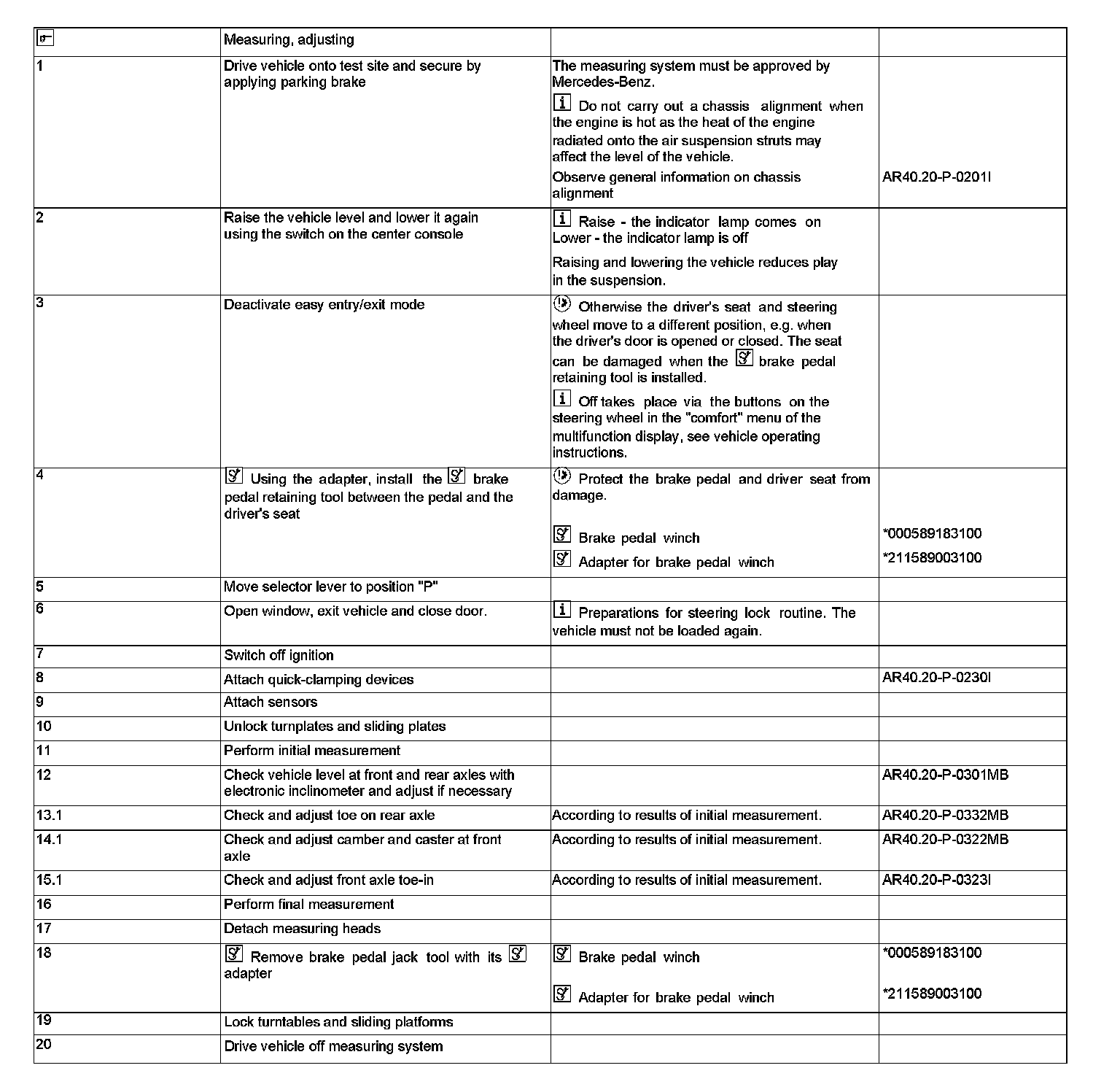

Steps 1 - 20:

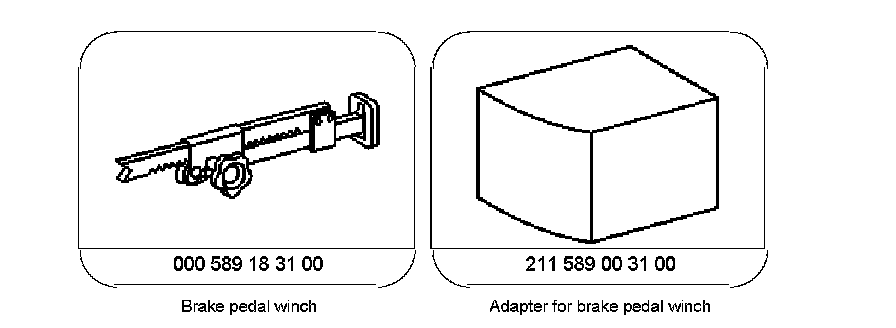

Special Tools:
