AR40.20-P-0261I Adjust Rear-Axle Toe

AR40.20-P-0261I Adjust rear-axle toe
- except CODE (979) Special protection version (model 220)
- except CODE (Z07) Top protection (model 220)

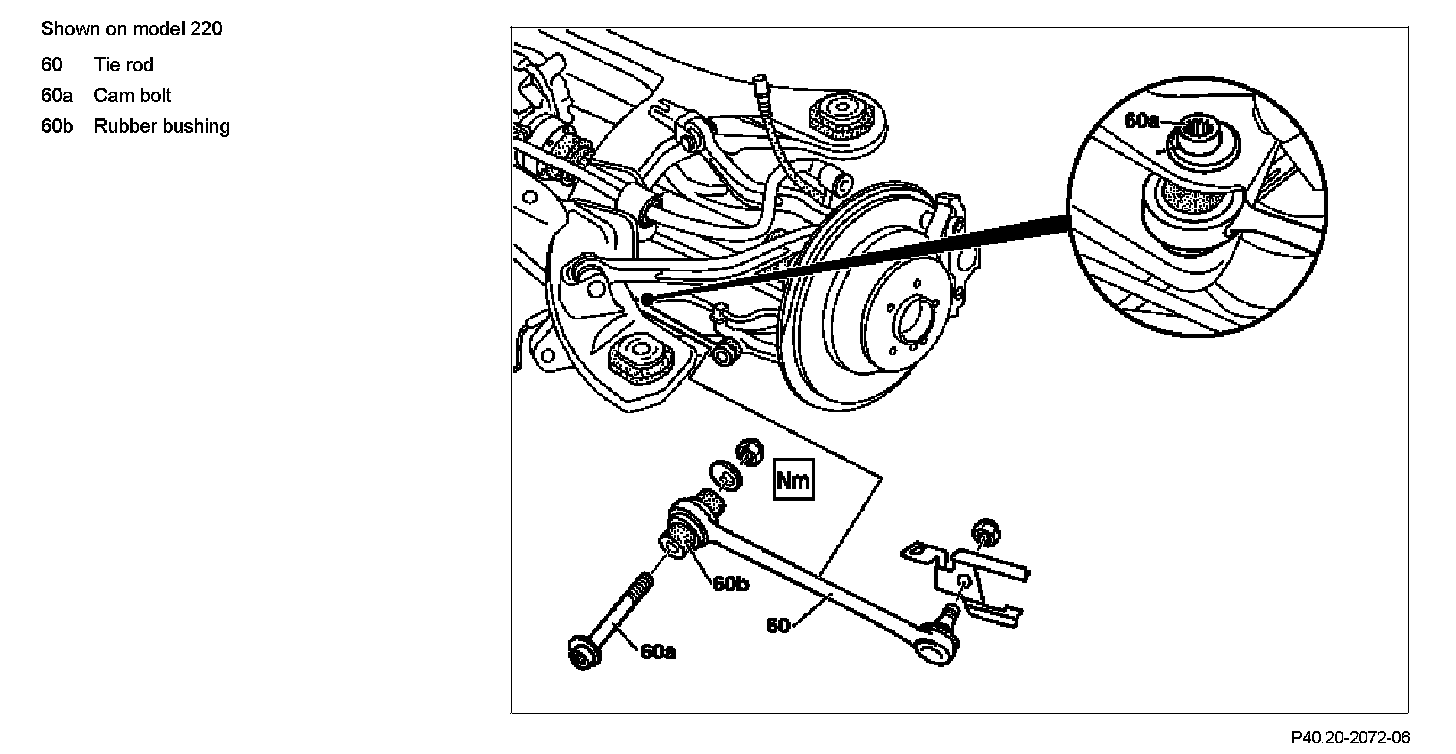

Component Identification:

Component Identification:

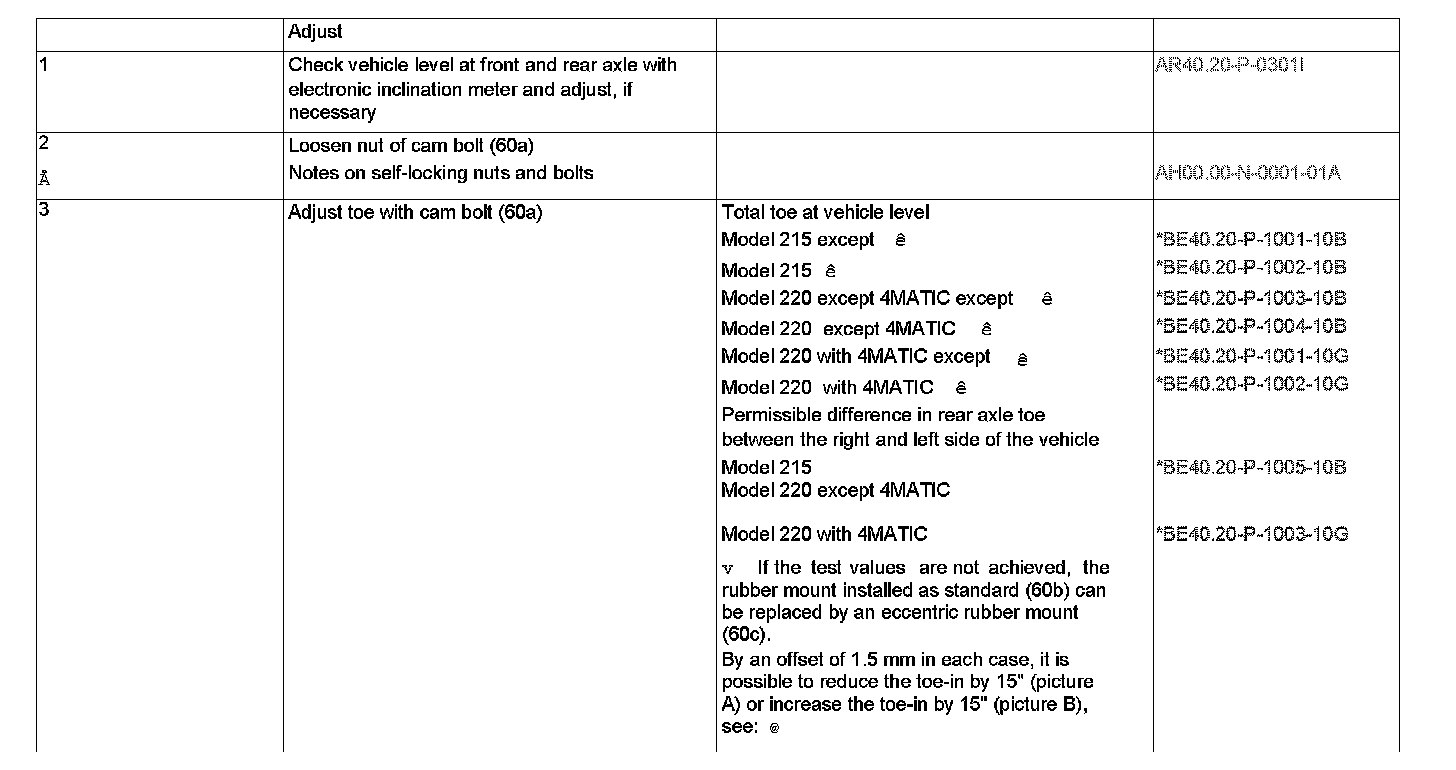

Steps 1-3:

Remove/install Step 4:

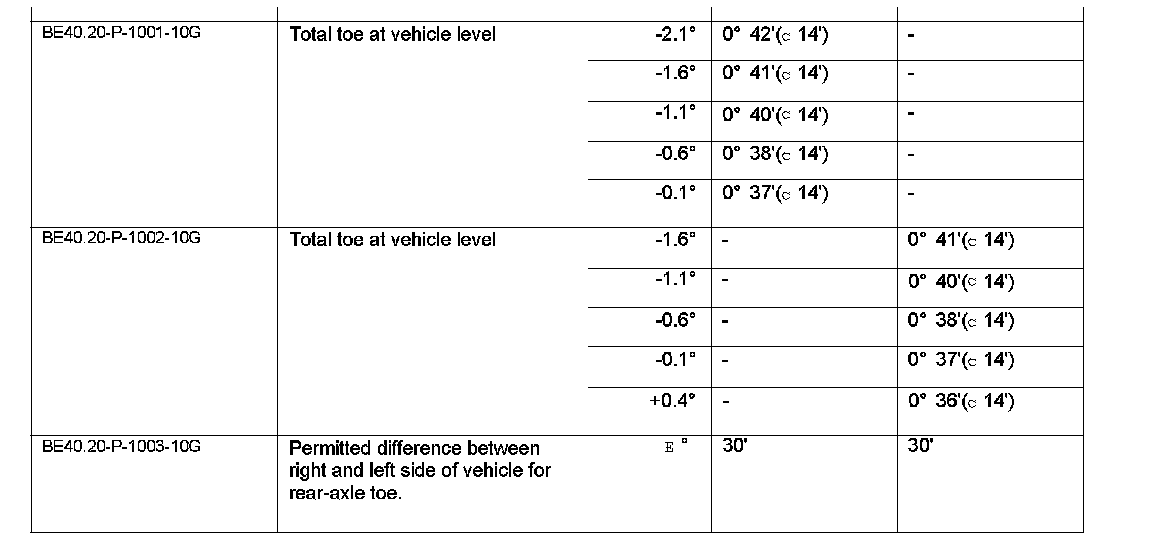

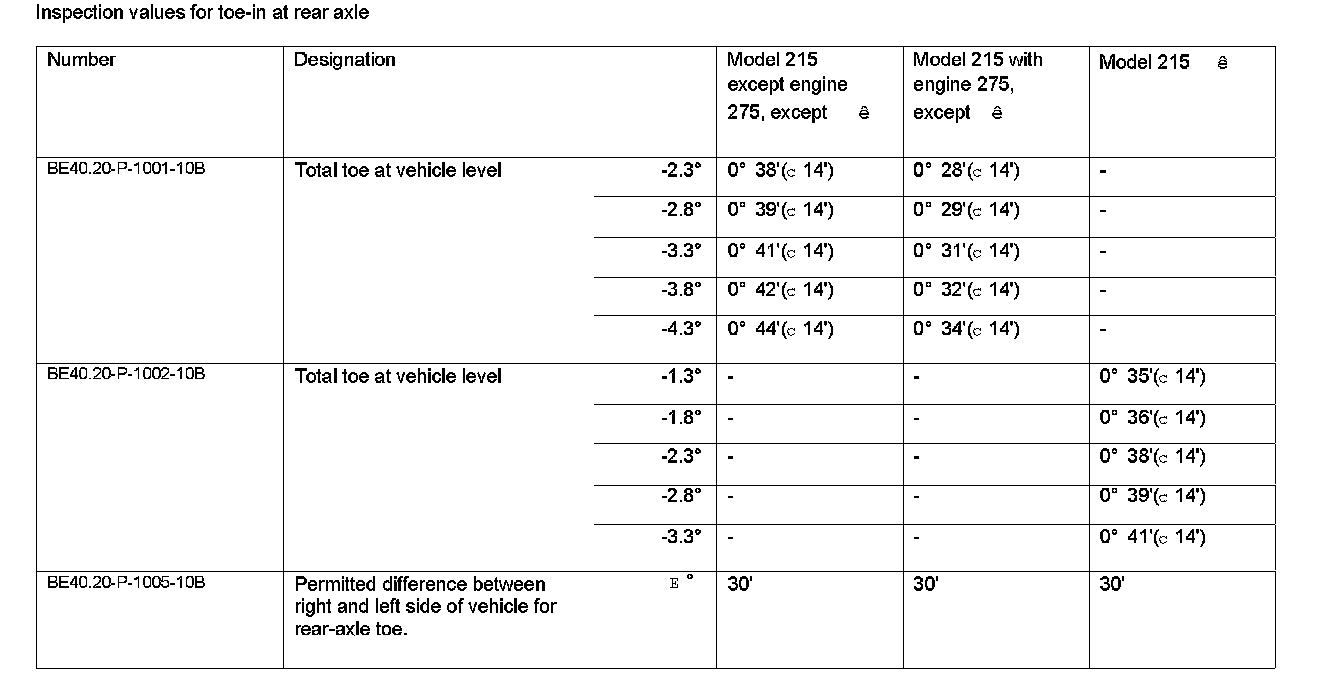

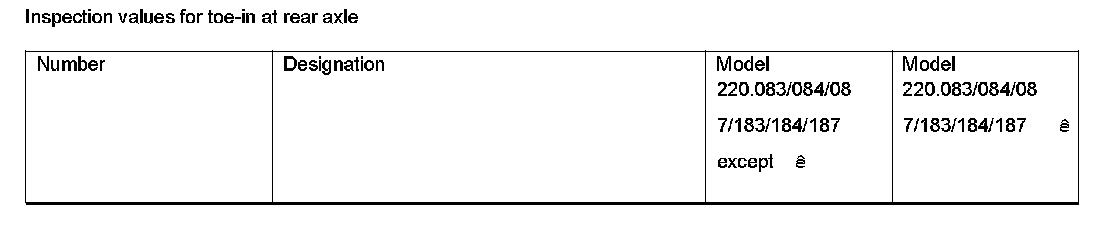

Inspection values for toe-in at rear axle:

Inspection values for toe-in at rear axle:

Inspection values for toe-in at rear axle:

Inspection values for toe-in at rear axle:

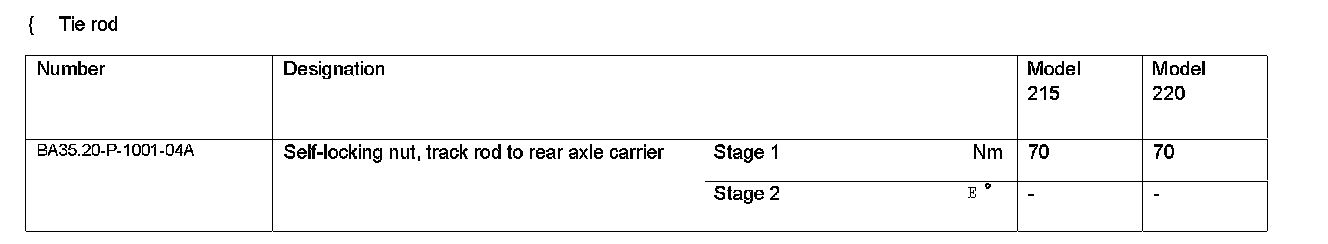

Tie rod:
