AR40.20-P-0332MB Check and Adjust Rear Axle Toe



AR40.20-P-0332MB Check and adjust rear axle toe
- With CODE (979) Special protection version
- With CODE (Z07) Top protection

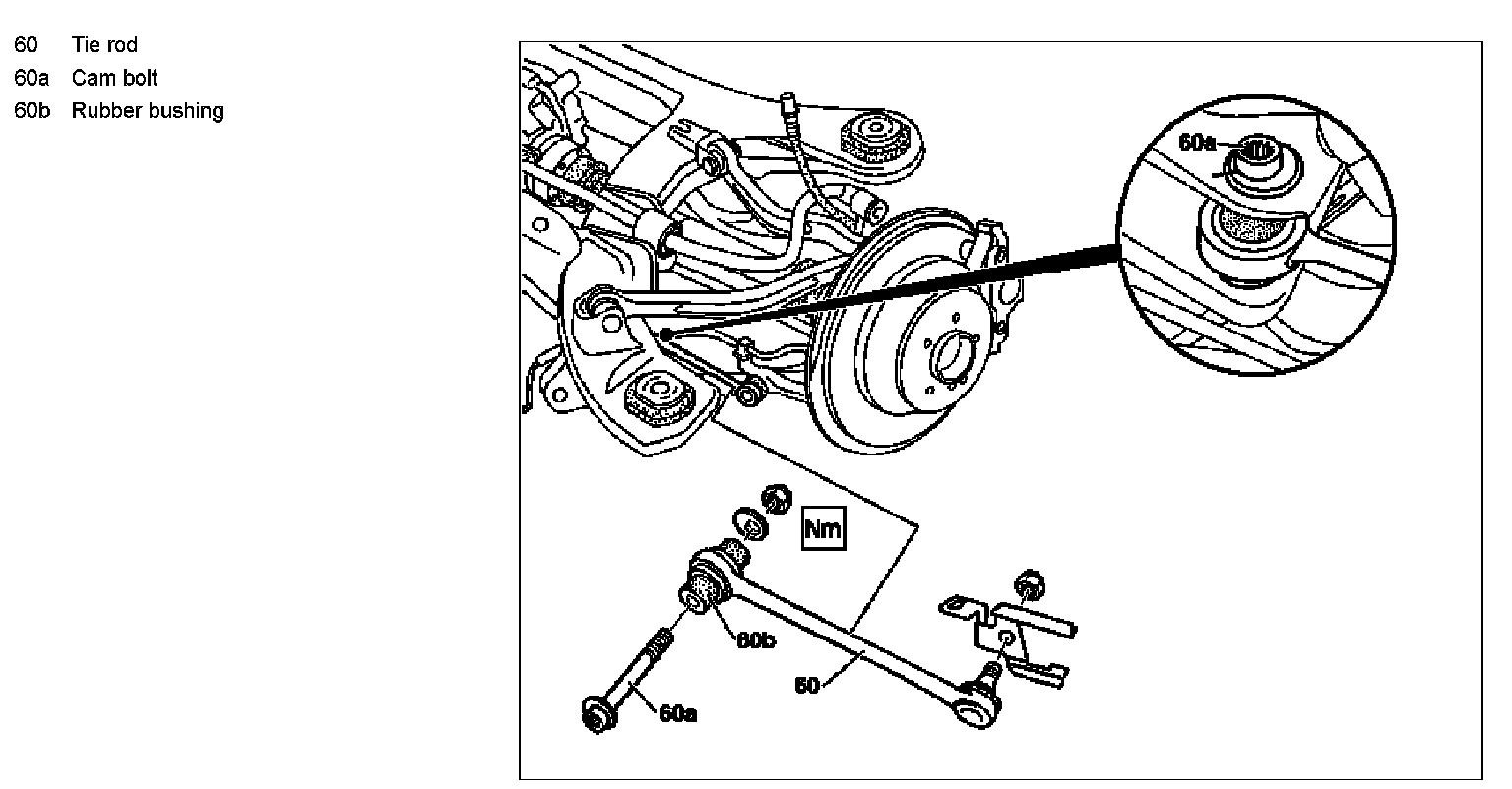

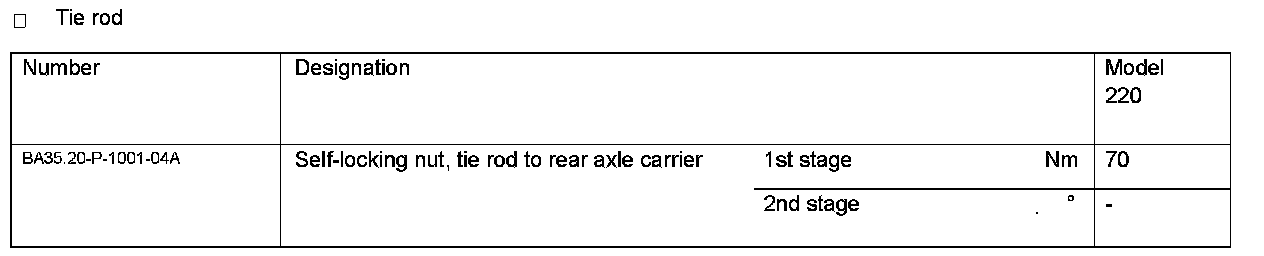

Steps 1-2:

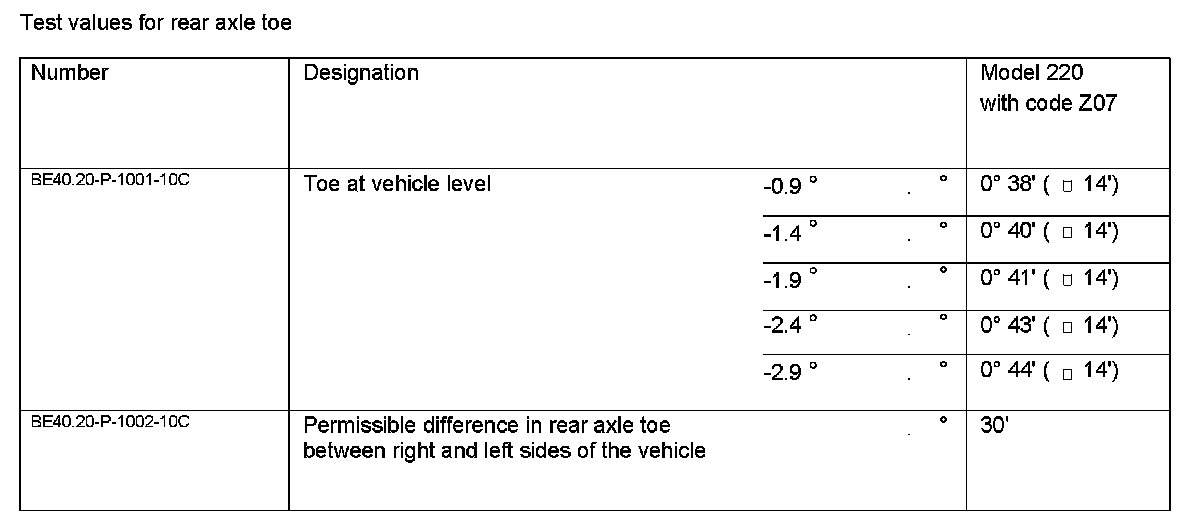

Steps 1-2 Continuation:
