Fuel Injector: Service and Repair

Remove, Install Injectors (ME-SFI)







Work instructions

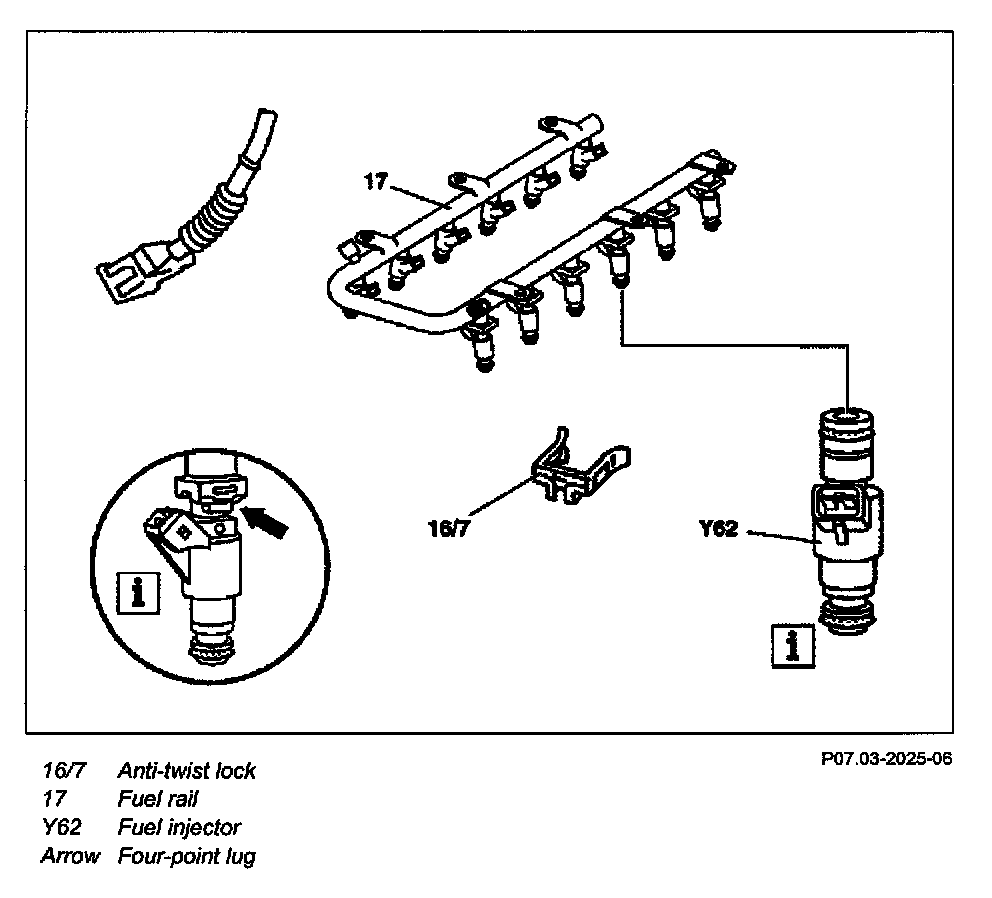

- Remove, install fuel rail (ME-SFI) (17)

NOTE: with injectors

- Anti-twist lock (16/7)
- Must engage in four-point lug (arrow) at fuel injector (Y62)

CAUTION:
- O-rings
- Inspect for damage.
- If O-rings are faulty, replace injector. Oil O-rings before installing injectors.
