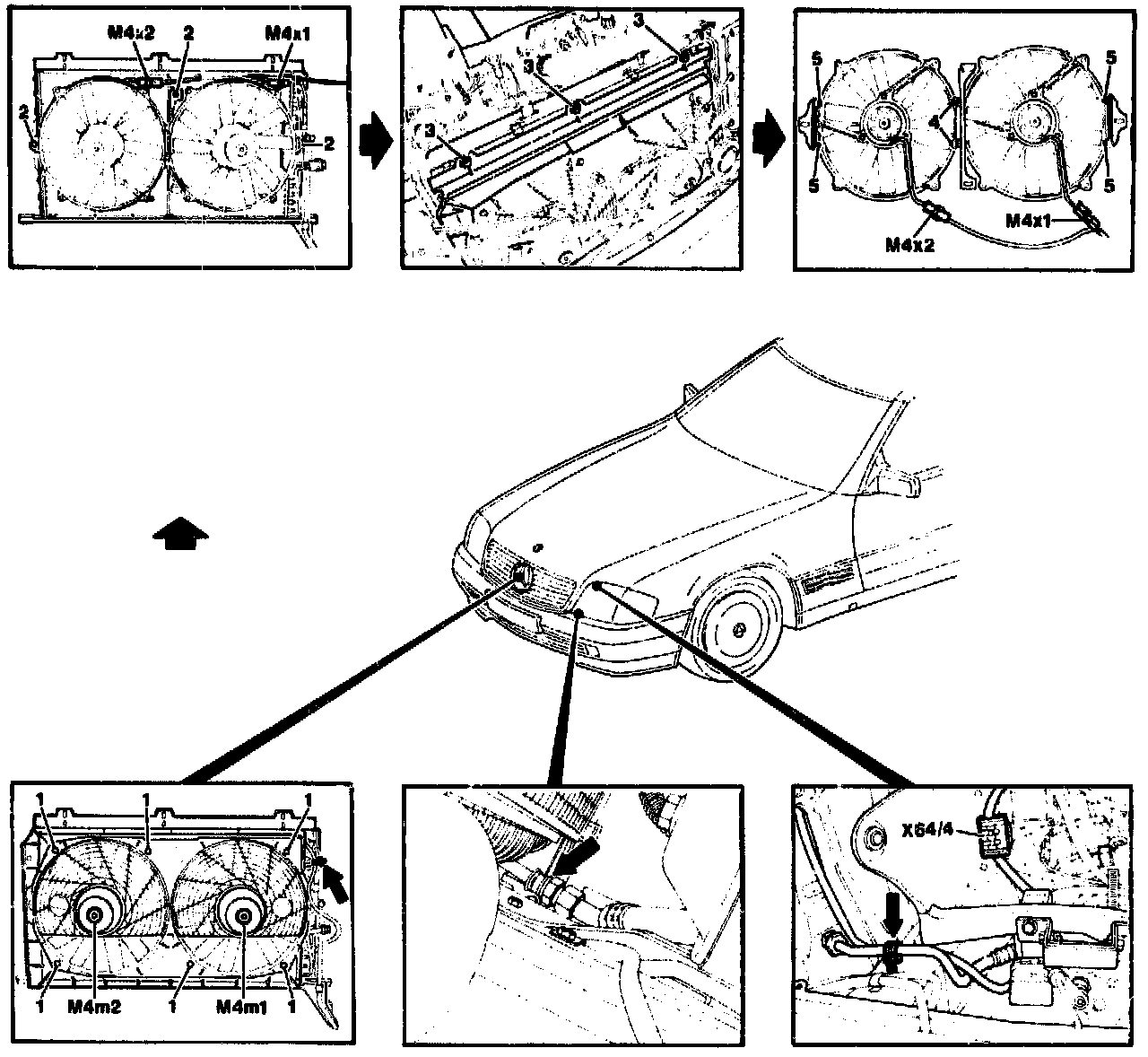

Condenser Fan: Service and Repair

Radiator with condenser
remove. Service and Repair

Box frame
remove (press out 6 clips (1)).

Plug connectors (M4 x 1, M4 x 2)
disconnect.

Clamp (arrow)
loosen.

Auxiliary fan
separate from condenser. 3 bolts (2), observe note below.

Holders
remove. 2 bolts each (5).

Install
in reverse order.


NOTE: Perform electrical function test on auxiliary fan (direction of rotation) before fastening the radiator in the body.
