Maintenance Required Lamp/Indicator: Locations

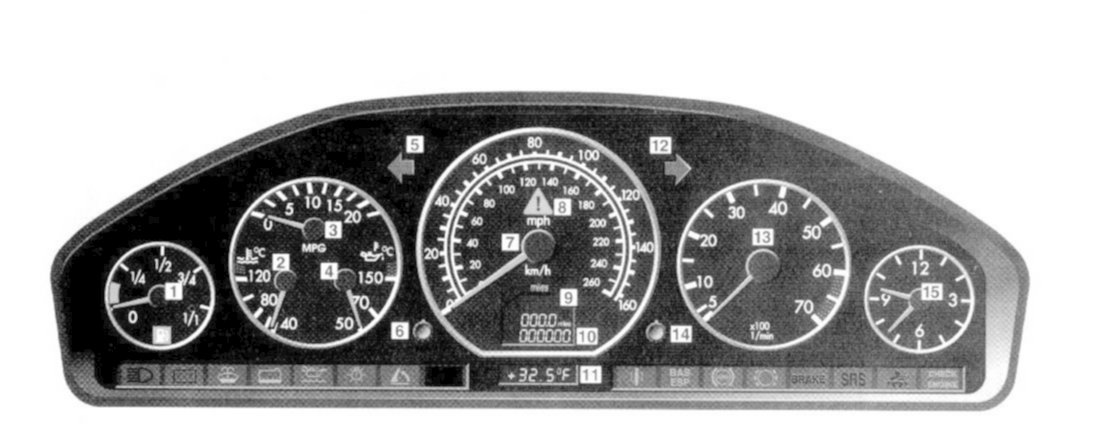

Instrument Cluster:

Instrument Cluster:

1 Fuel gauge with reserve and fuel cap placement warning lamp (yellow).

2 Coolant temperature gauge.

3 Fuel consumption gauge.

4 Engine oil temperature gauge.

5 Left turn signal indicator lamp (green).

6 Knob for intensity of instrument lamps, for resetting trip odometer and FSS indicator.

7 Speedometer.

8 EPS warning lamp (yellow).

9 Odometer display field.

10 Main/trip odometer or FSS indicator.

11 Outside temperature indicator.

12 Right turn signal indicator lamp (green).

13 Tachometer.

14 Knob for setting clock.

15 Clock.
