License Plate Lamp: Service and Repair

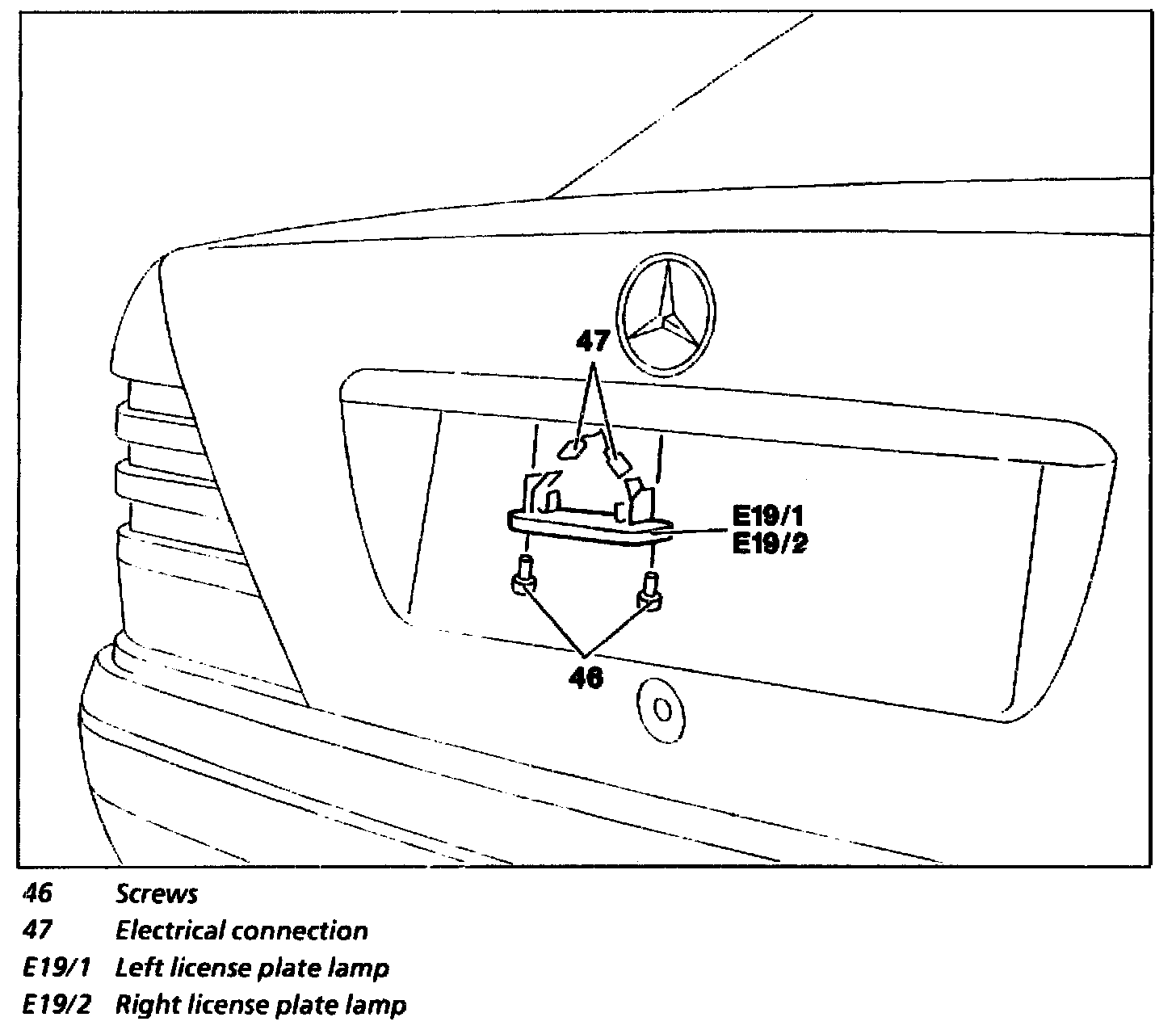

Component Identification:
NOTE:
The image shows removal of the
license plate lamp
on model 202 sedan. Removal on the T-model 202 and model 210 and on roadster model 129 is identical.
Removal/Installation:
