AR88.70-P-9000G Remove/Install Outside Rearview Mirror Complete

AR88.70-P-9000G Remove/Install Outside Rearview Mirror Complete

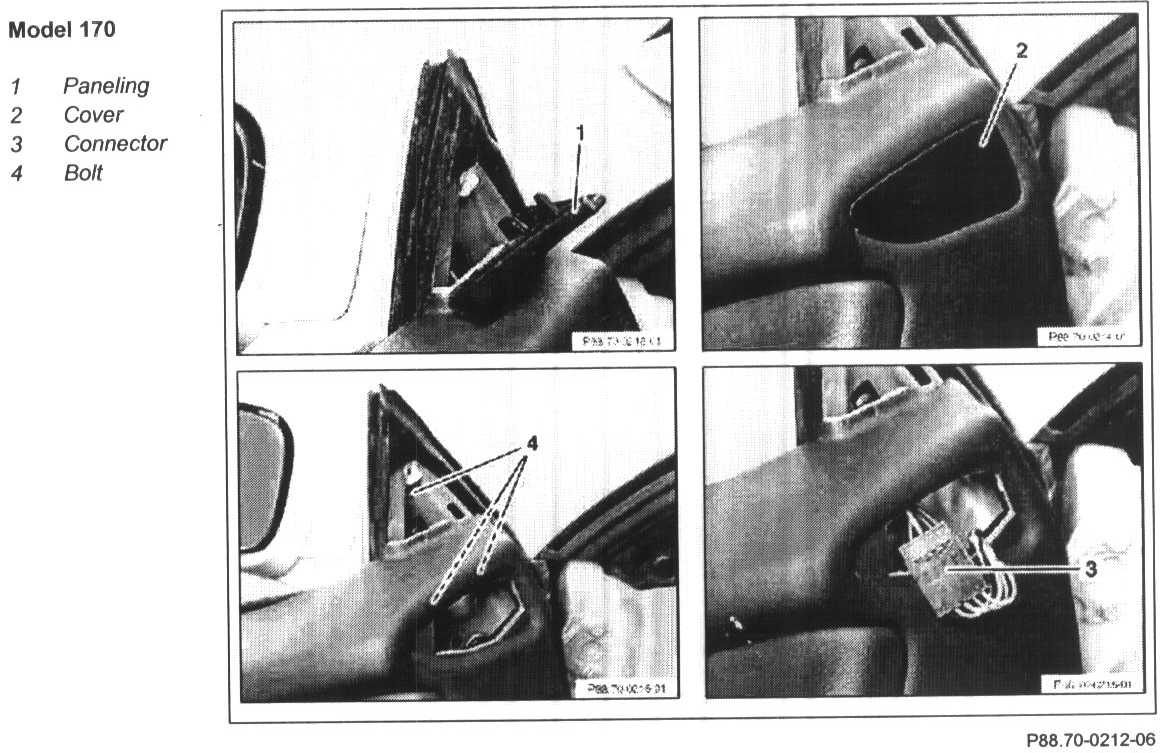

Model 170:

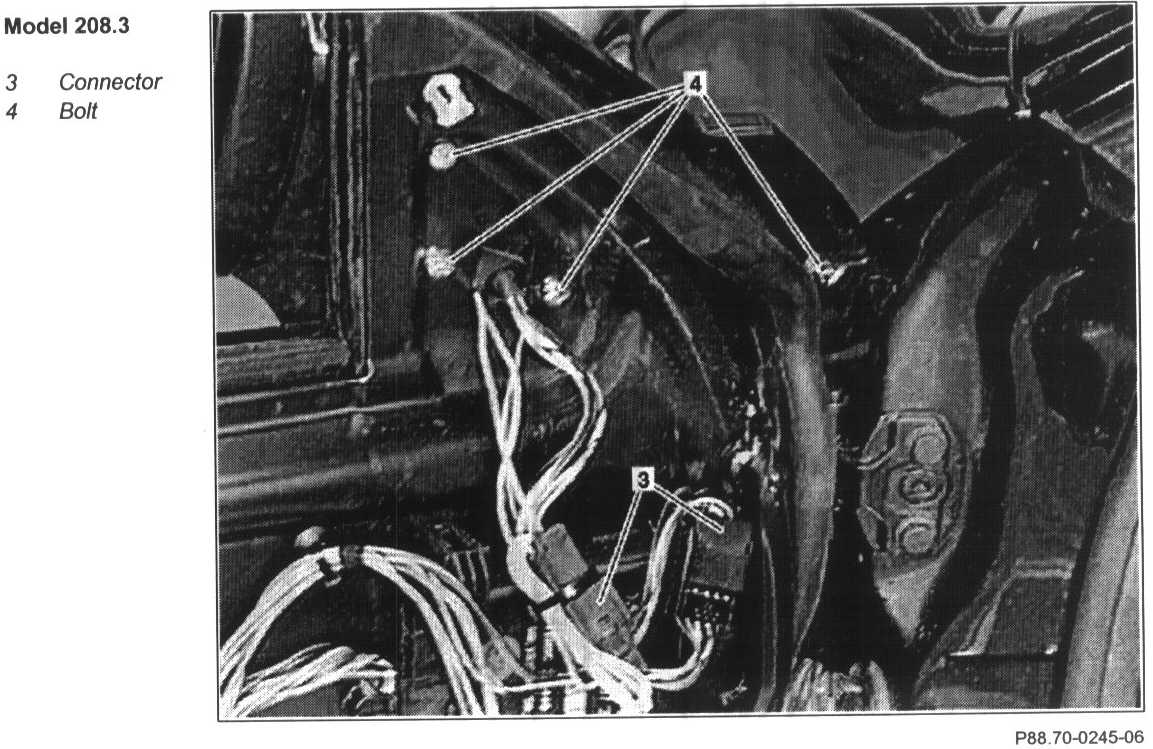

Model 208.3:

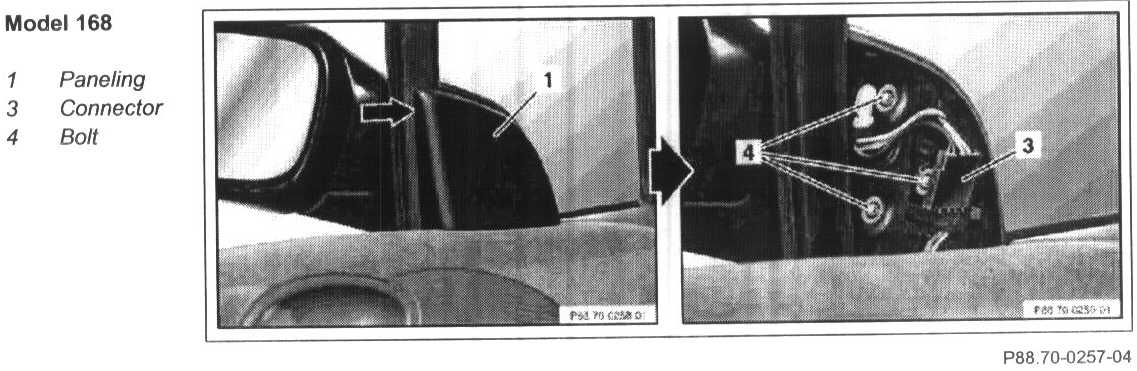

Model 168:

1 Remove door liner from front door
- Model 168 as of 1.3.01
- Model 208.3, only when cover (2) is missing in door liner.
2 Press off paneling (1) with plastic wedge
3 Press cover (2) off with plastic wedge
- Only when cover is present in door liner.

4 Disconnect connector (3)
5 Unscrew screws (4) and remove outside rearview mirror

Model 168: See "Commercially Available Tools" given below.

6 Install in the reverse order

Commercially Available Tools

Commercially Available Tools:
