AR88.70-P-9080G Remove/Install Cover on Mirror Triangle

AR88.70-P-9080G Remove/Install Cover on Mirror Triangle

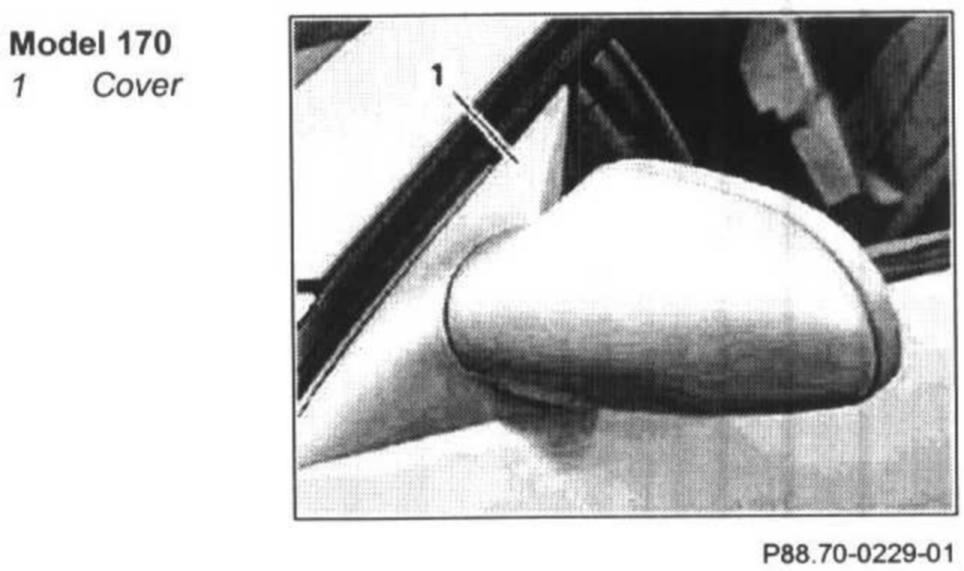

Model 170:

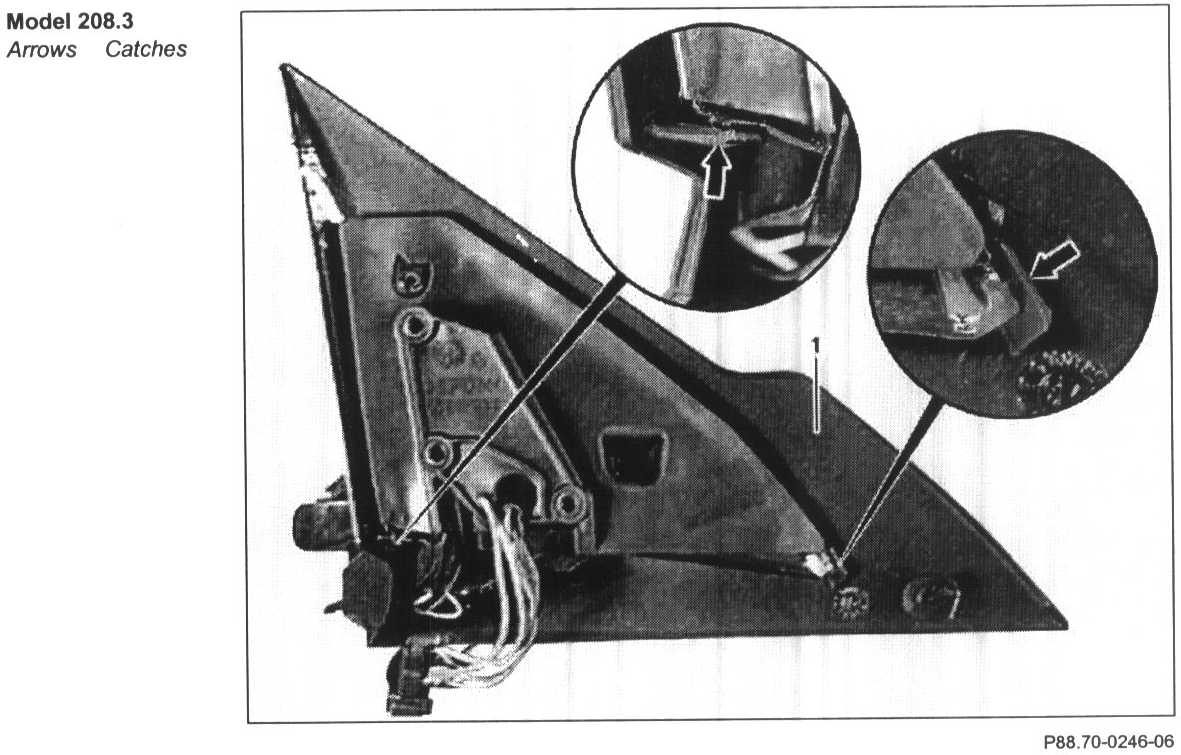

Model 208.3:

Model 168:

Model 168:

1 Remove cover on outside rearview mirror
2 Remove drive for gear adjustment
3 Remove complete outside rearview mirror

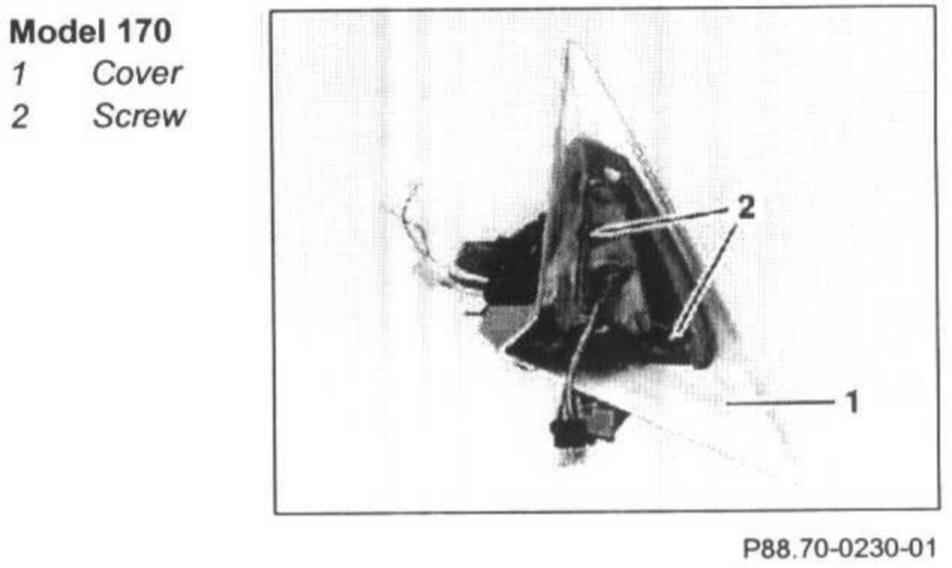

4 Unscrew screws (2) and remove cover (1)

See "Commercially Available Tools" given below.

5 Reinstall in opposite order

Commercially Available Tools

Commercially Available Tools:
