B1.4 - Interior Compartment (Left)



Arrangement and assignment of the wiring and plug connectors, interior compartment (left)

Arrangement

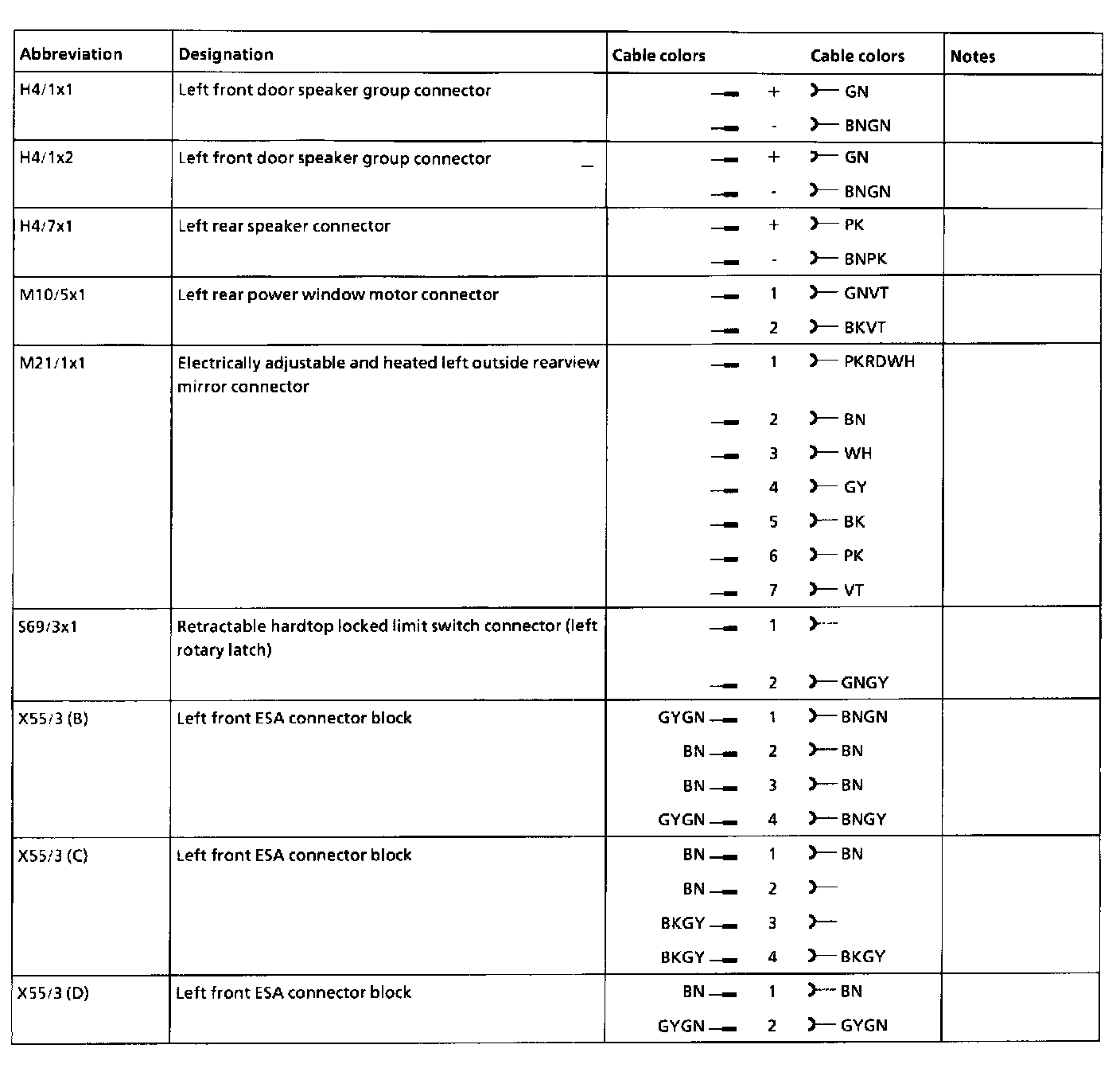

Assignment
