B1.6 - Trunk (Left)
B1.6 - Trunk (Left)
Arrangement and assignment of the wiring and plug connectors, trunk (left)
Arrangement

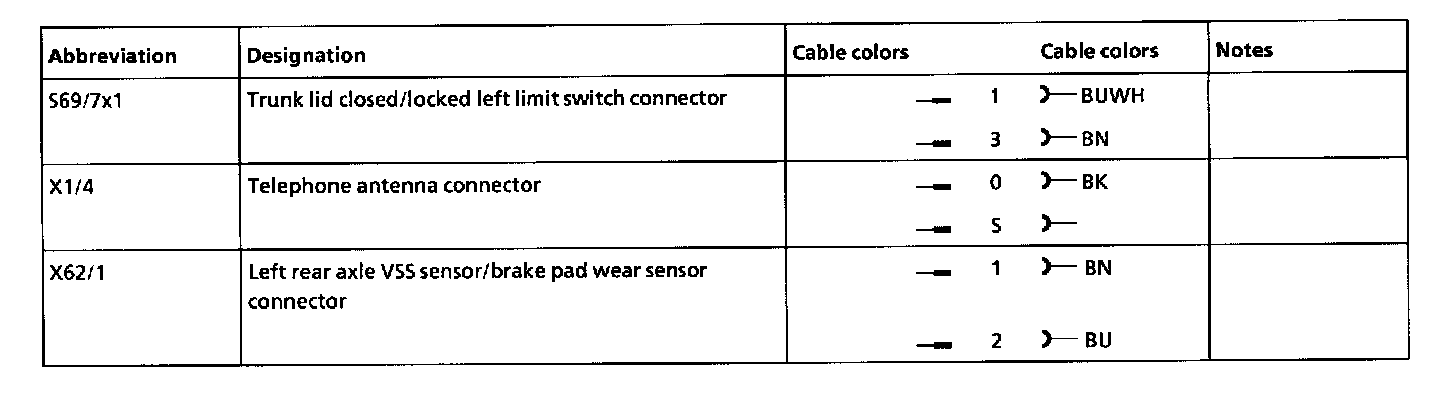

Assignment
S69/7x1 - X62/1:
